For changing the Volume of a pinball you always have to open the coindoor.
And mostly you have the key in the coindoor.
I find a solution to move the switches outsite of the coindoor.
So you can remove the key and it looks better.
I connected the volume + and volume – parallel to the switches inside of the coindoor.
But they don’t work without opening the door.

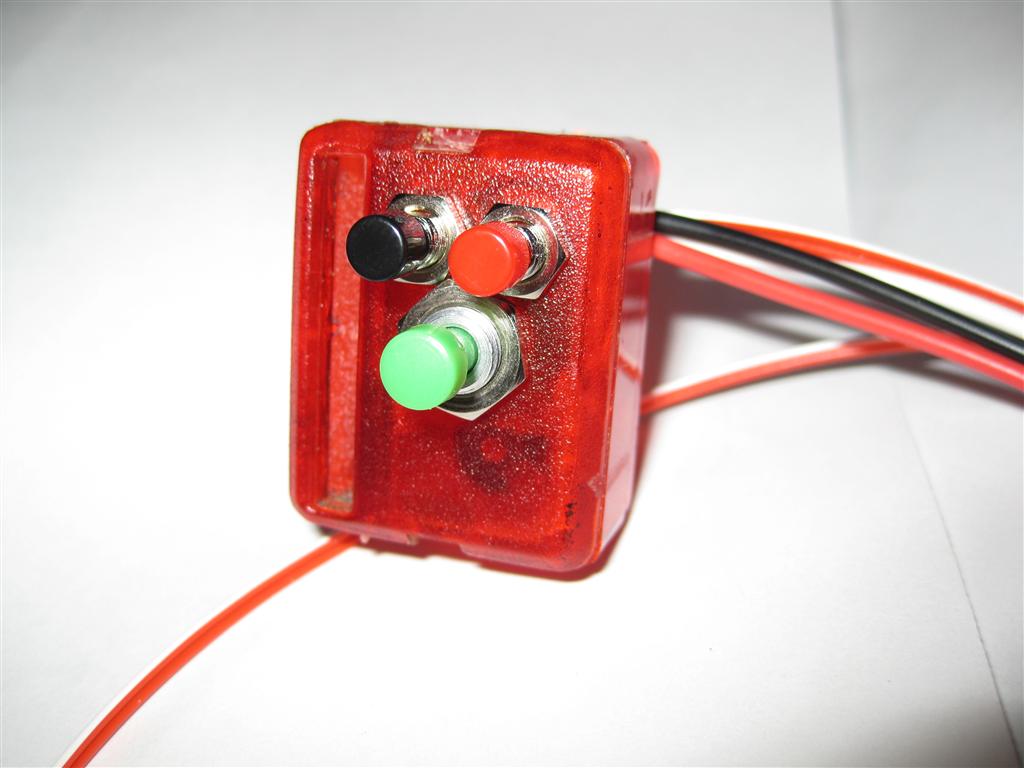

So I have to put a „coin-open“ switch outsite too. Its the green one.
To change the volume you have to press the green once and then you can change the volume via the two red and black switches as usual.

Here the first pics

Video:

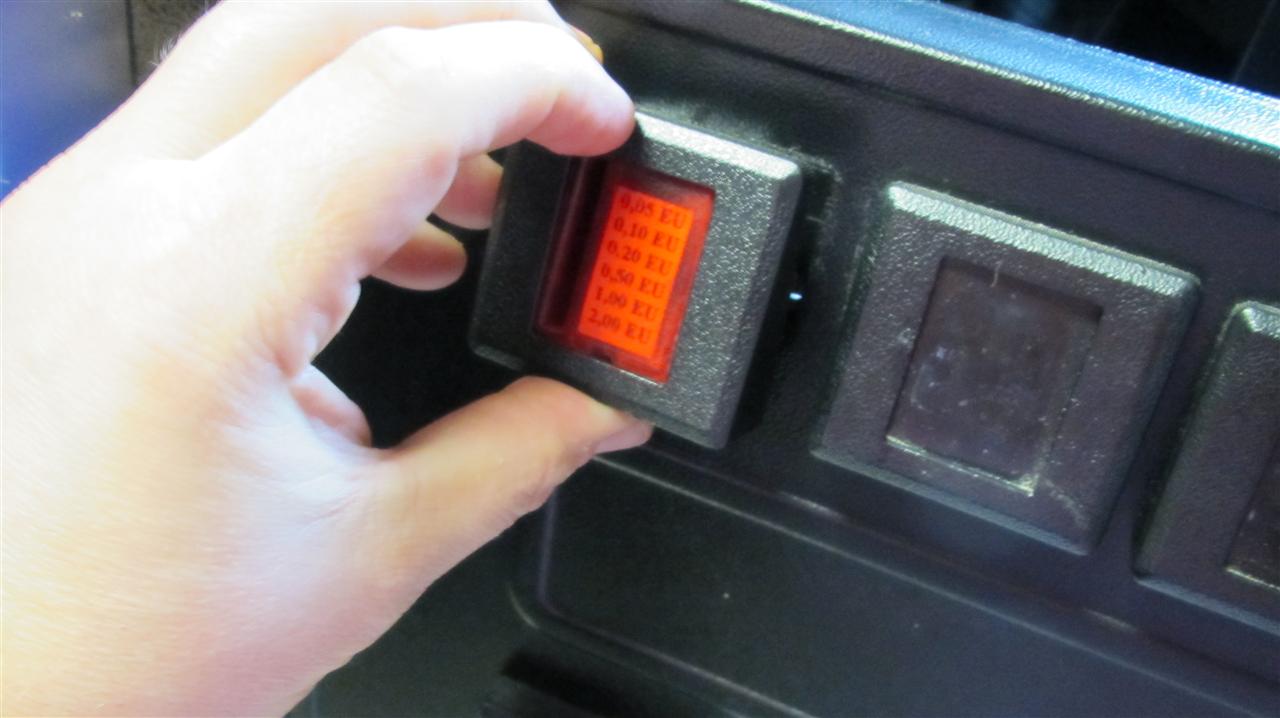

you have only to replace the original red plastic with two screws

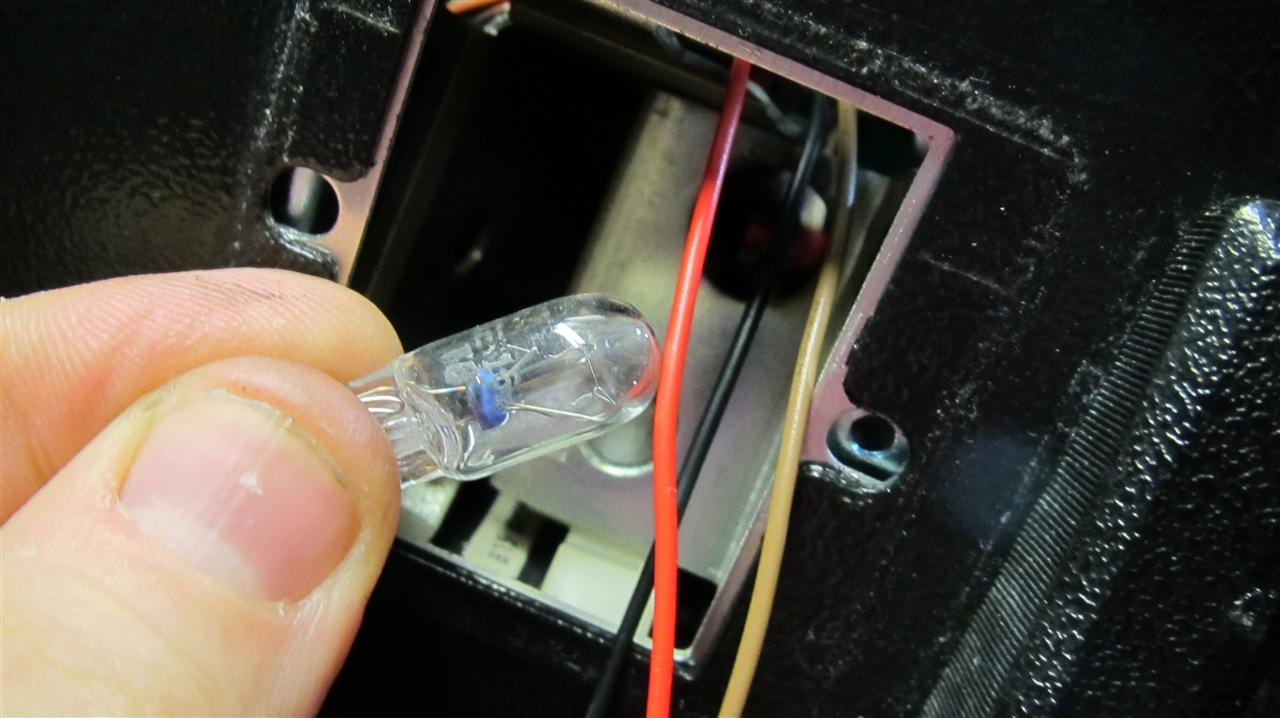

remove the lamp

,

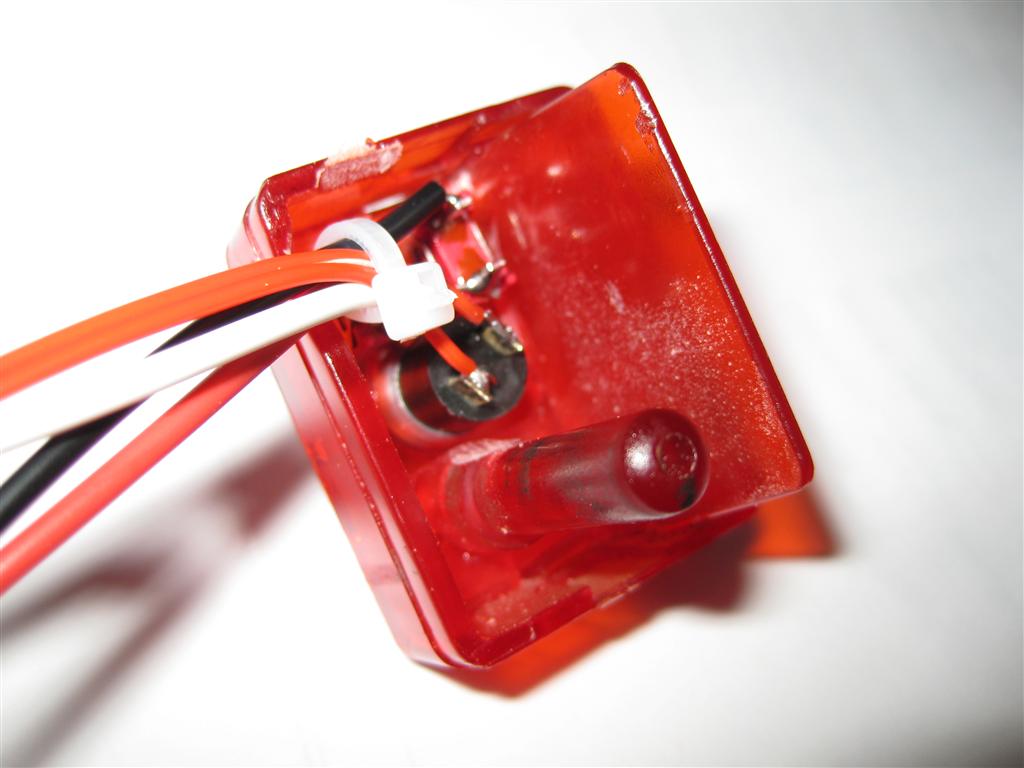

put in the new one with the wires

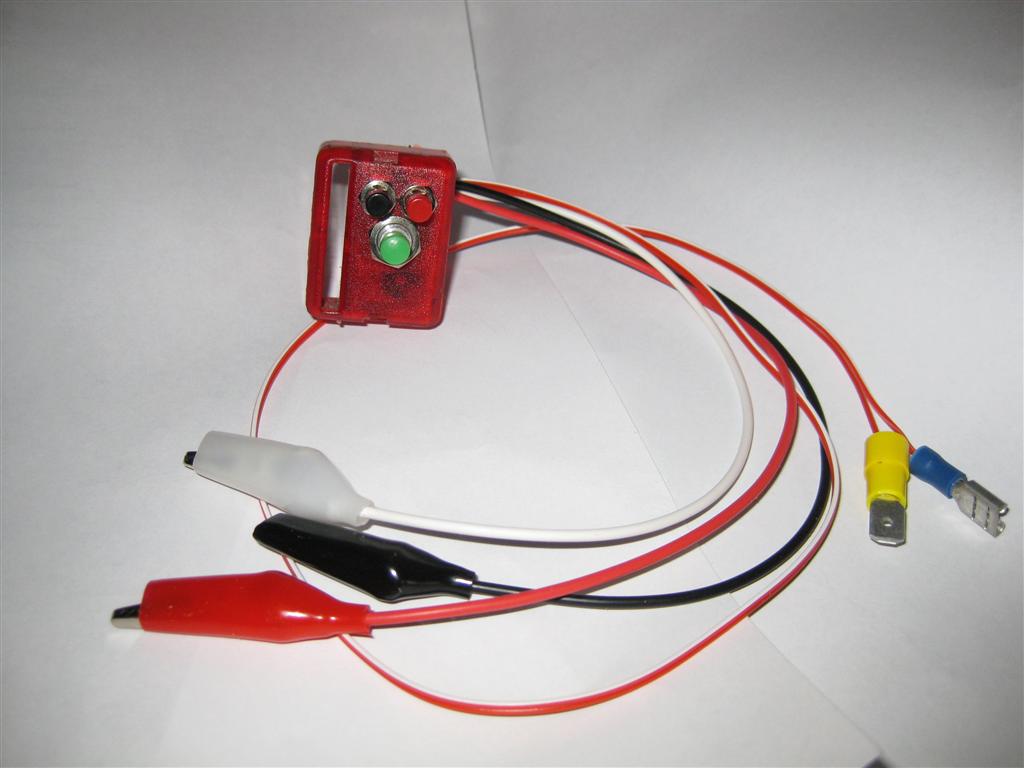

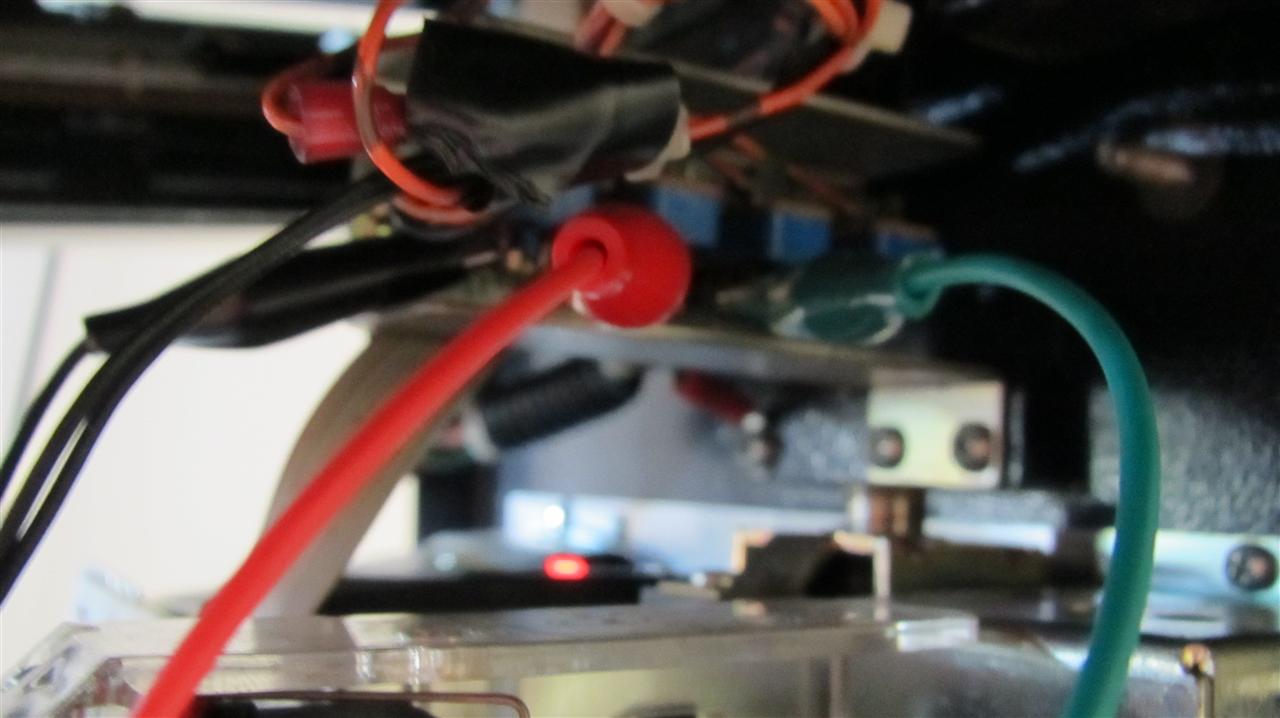

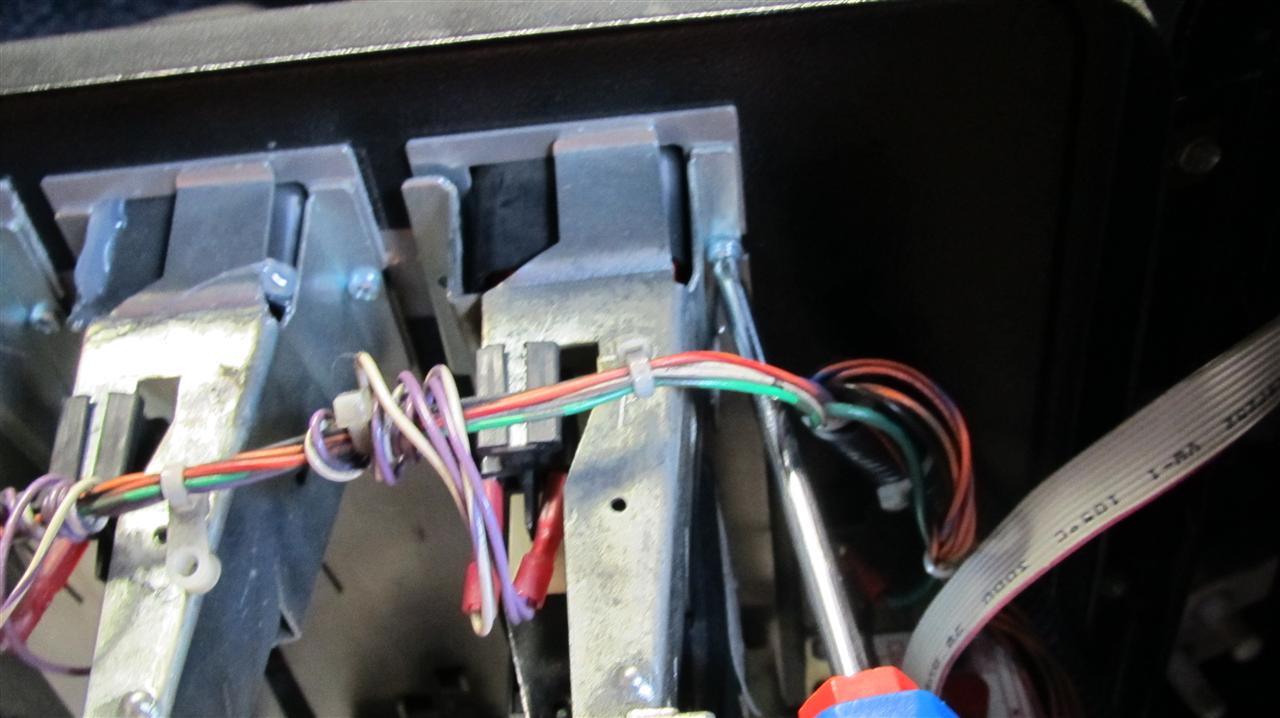

connect the three crocodiles to the inside switches

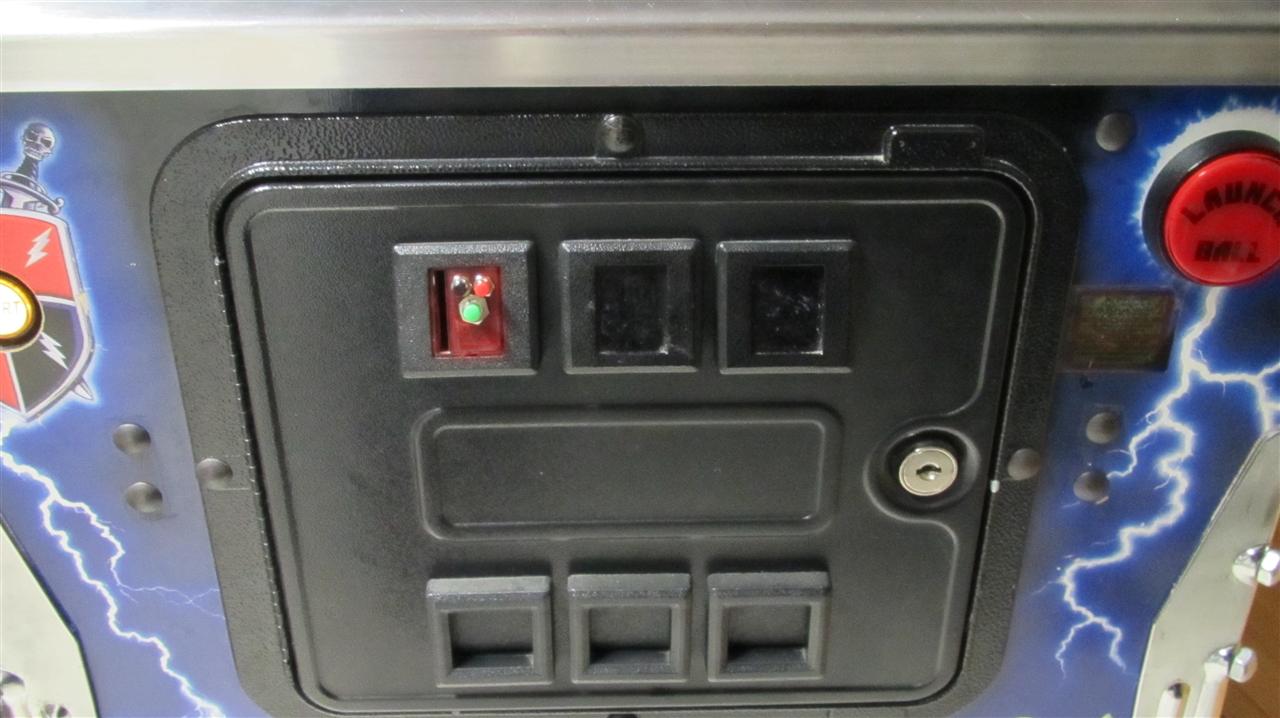

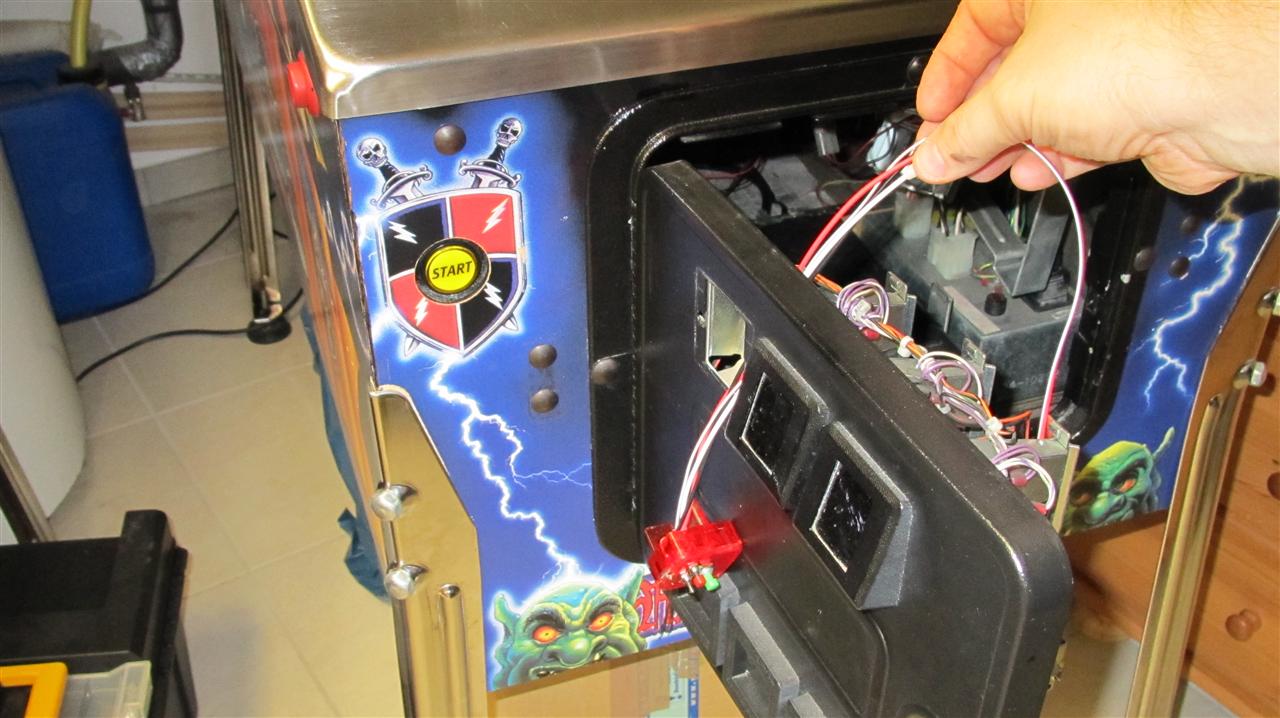

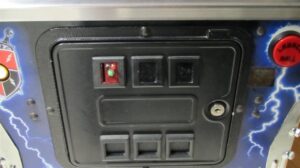

here you can see the replaced coindoor plastic with the new one

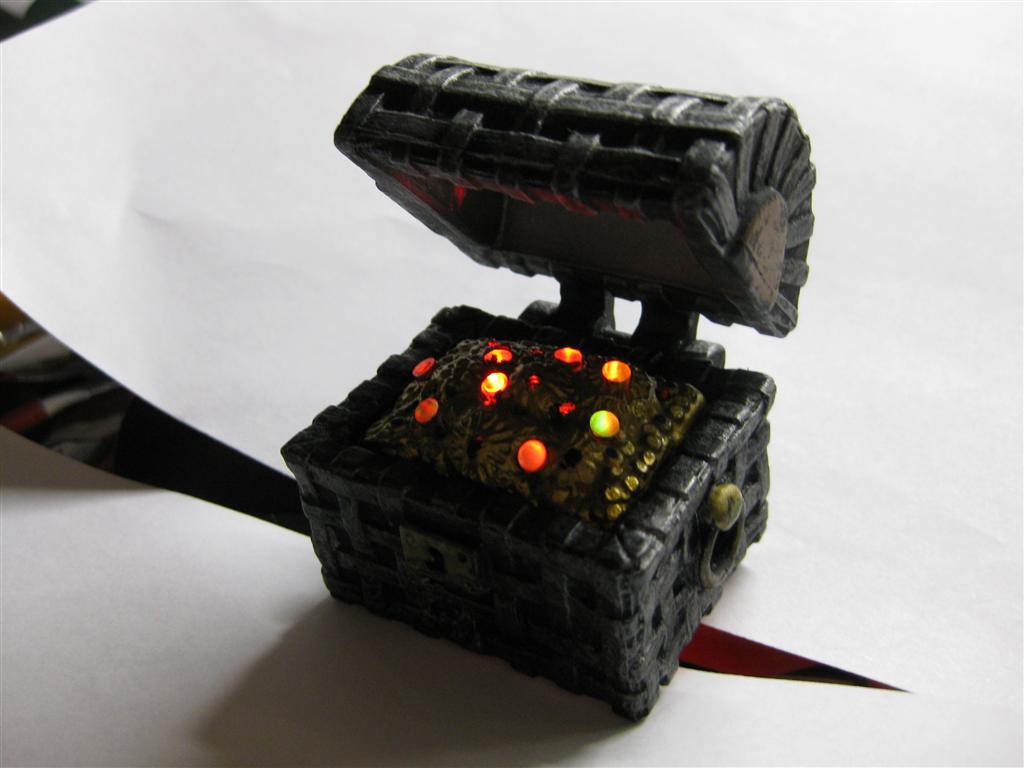

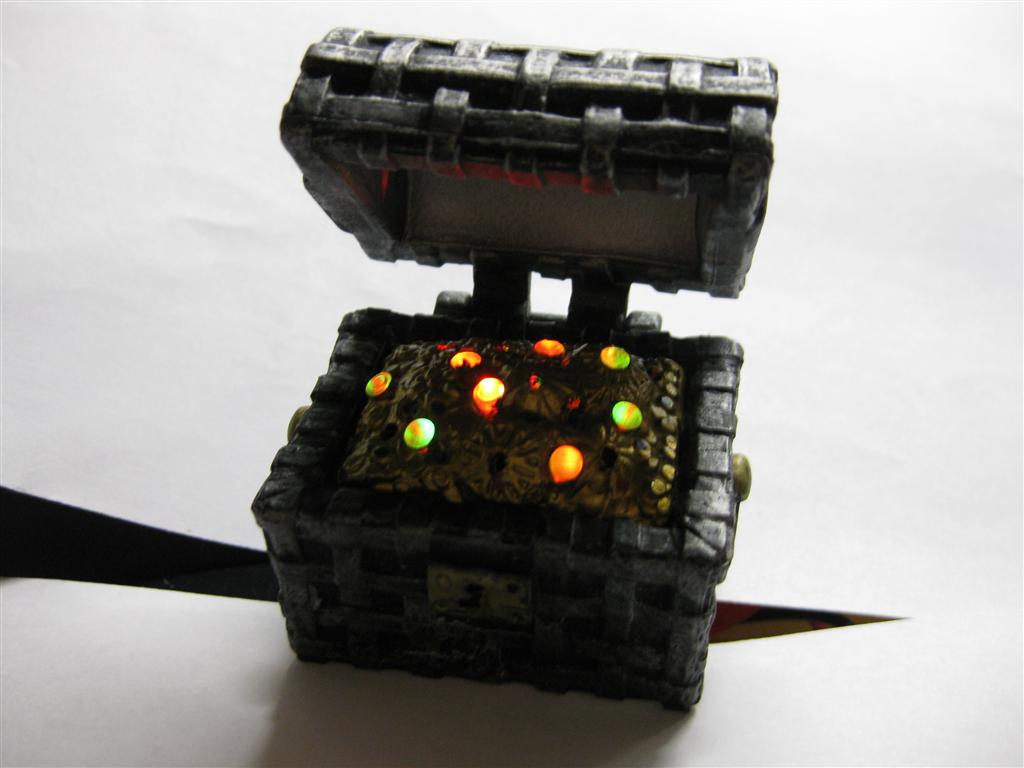

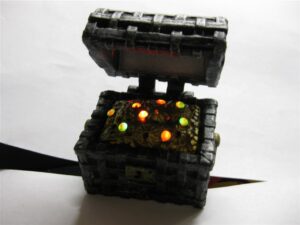

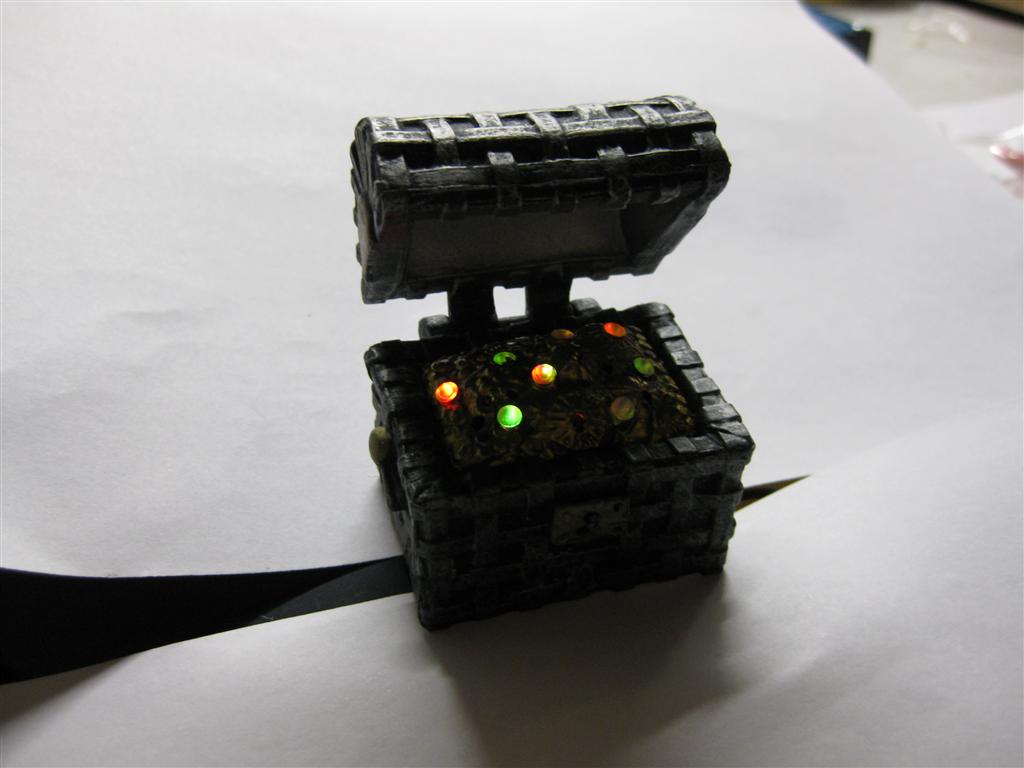

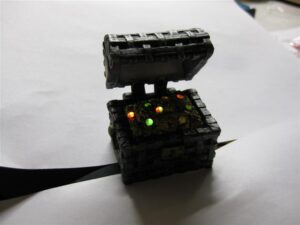

Here you can see my little treasure Project. It will be realized in a pin like Tales of Arabian Night.

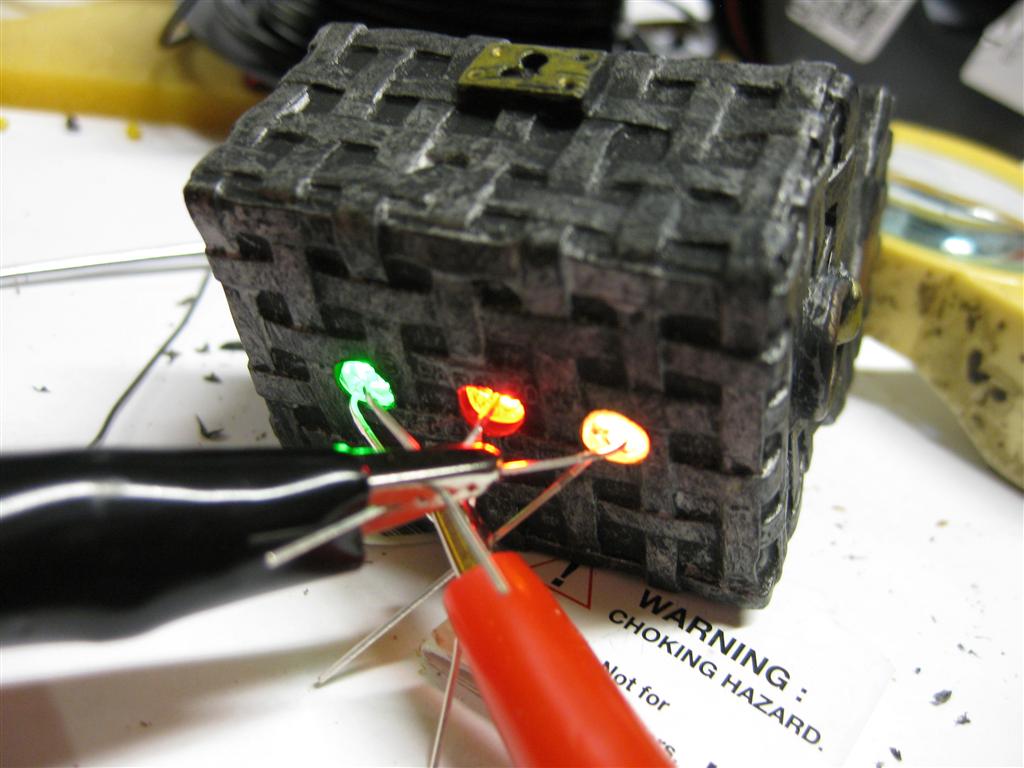

I have put some RGB changing Leds into the chest and some holes into the treasure area.

And I have put some glasfibre into the holes to make the effect more viewable…

Look here some pics and a video

Video:

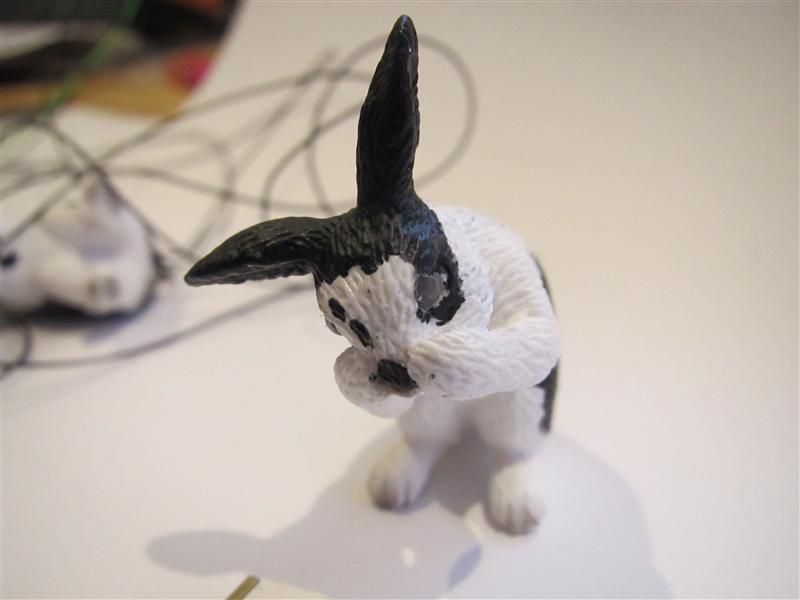

After the candlelight mod for the Magic Trunk it seems to insert some new pets into Theatre of Magic Pinball. As there a many rabbits on the playfield I decide to take two and make replaces the eyes with 3mm power Leds in red, because there are dangerous rabbits on the playfield.
This time it was tricky to make the holes for it because this rabbit is tiny around 5cm long.

I done the holes like a Y 3mm for the eyes and from the back to the head around 3-5mm

It works good if you use a 1,5mm at the eyes to get a fix for the bigger hole

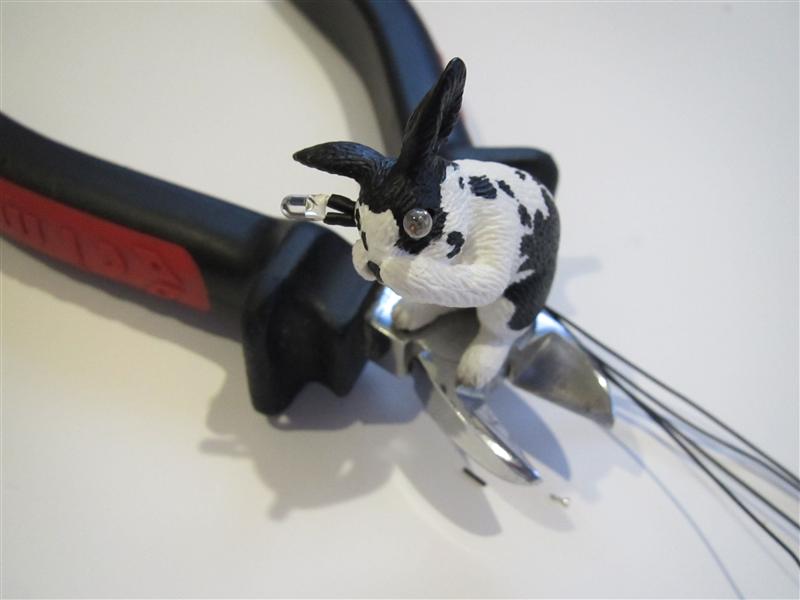

eyes replaced

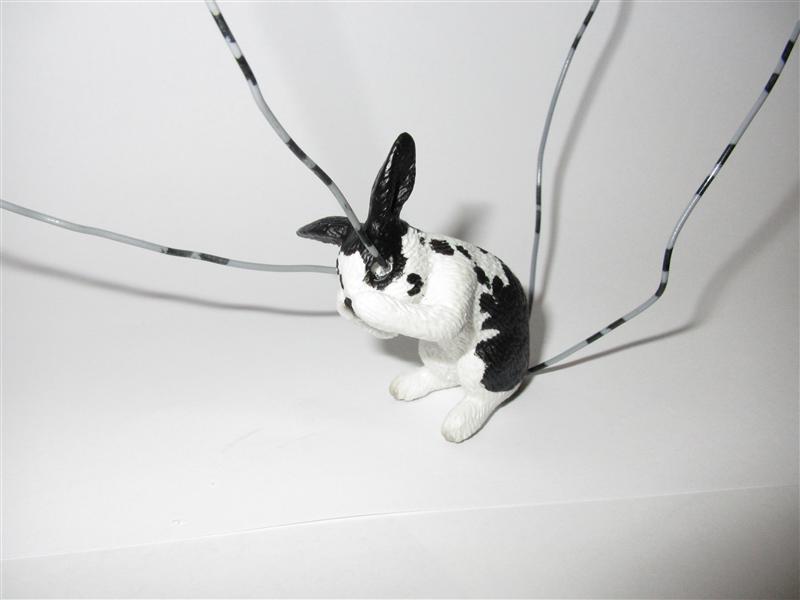

final position of the leds

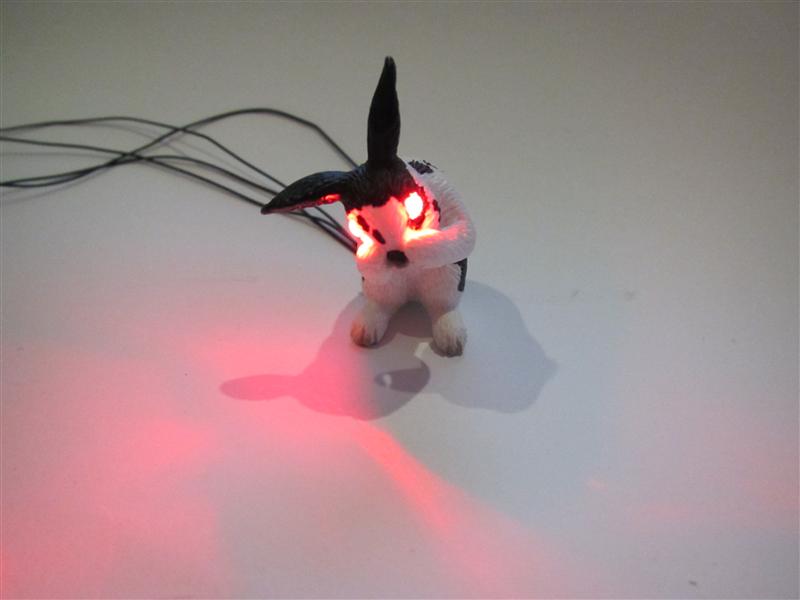

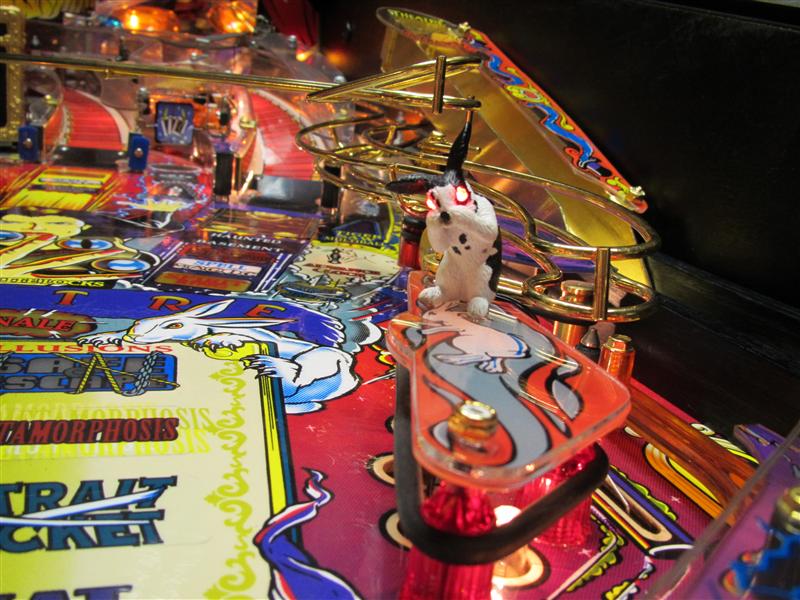

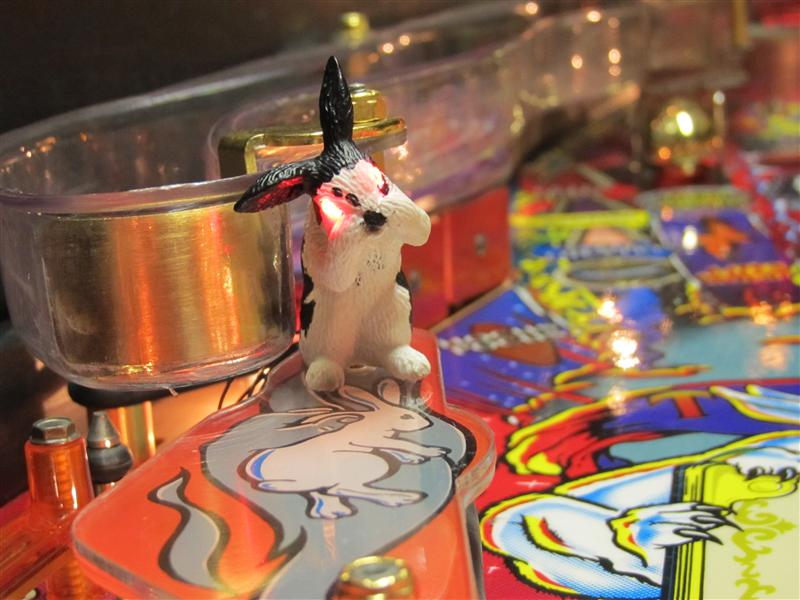

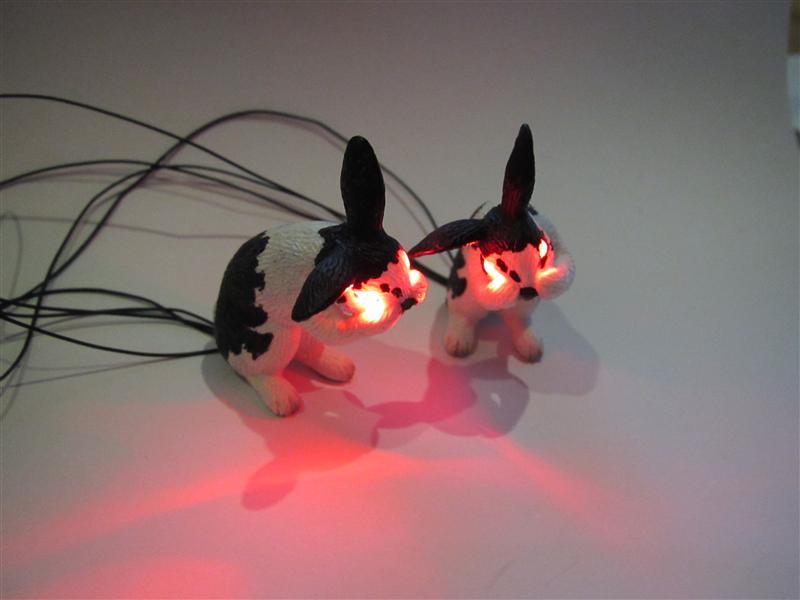

first dangerous look

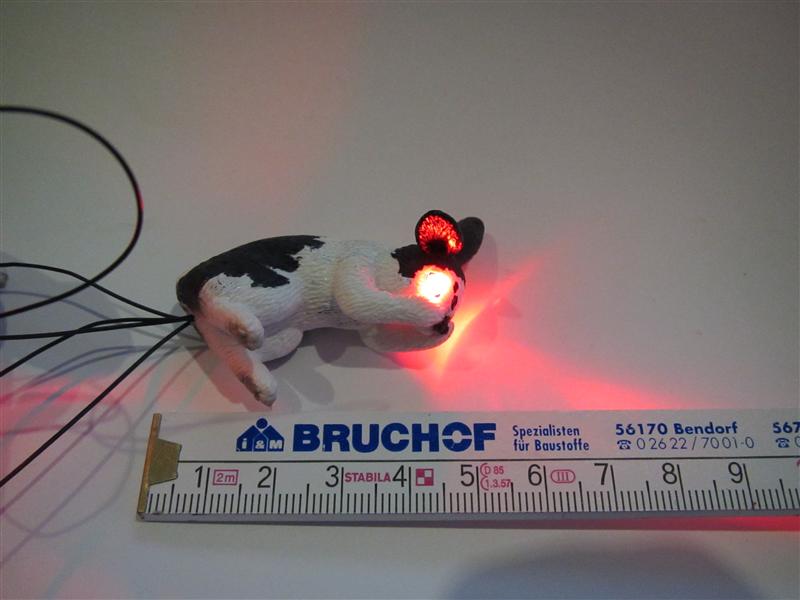

dimensions

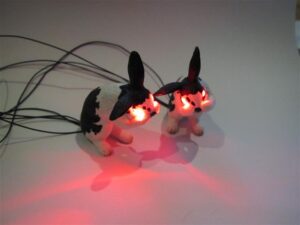

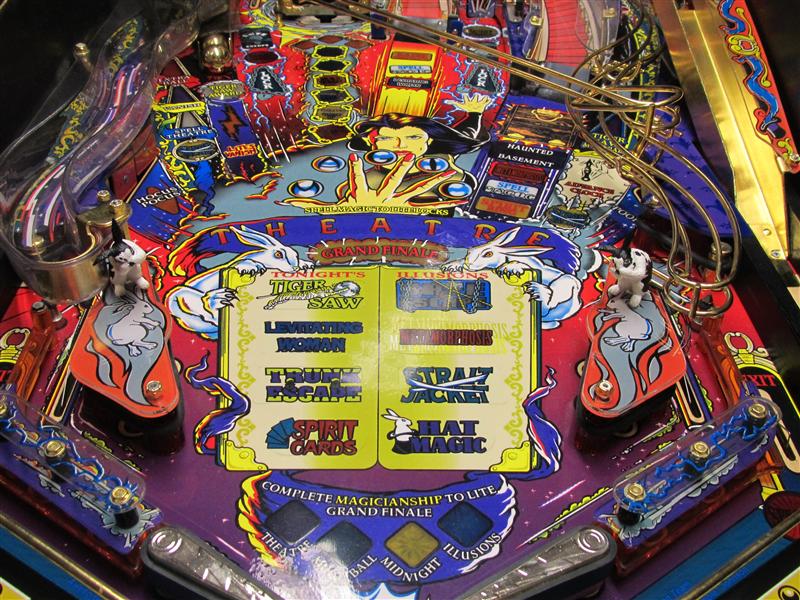

team

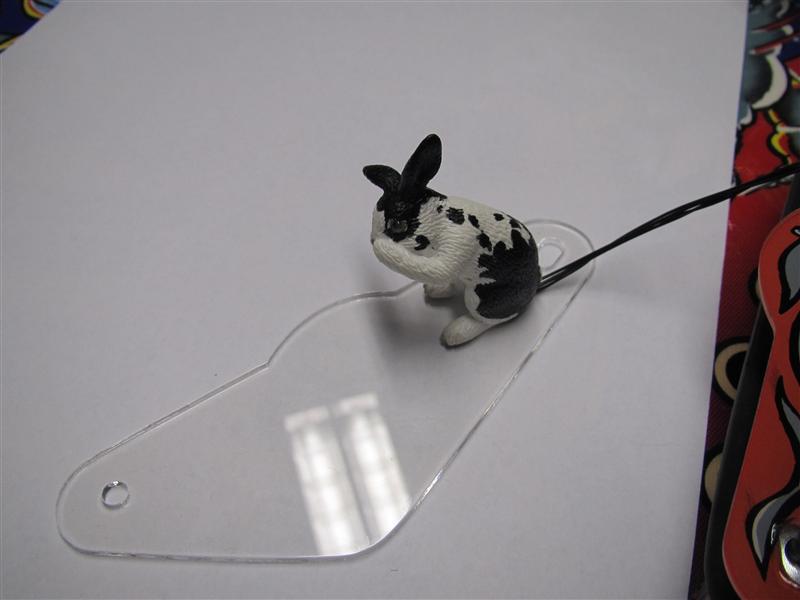

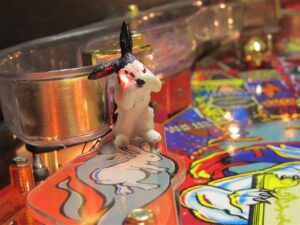

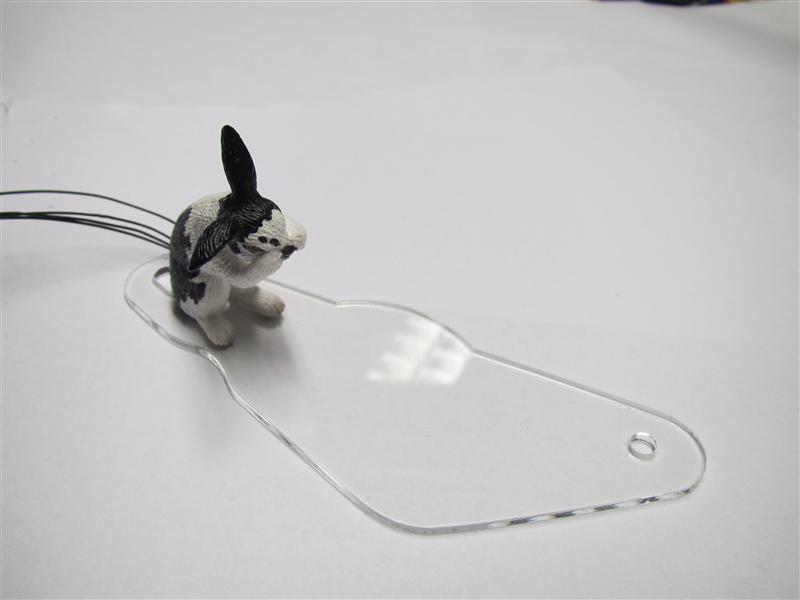

So up some plastics to connect the Rabbits to the slingshots.

For this I have used clear plastics and put them over the originals to prevent damage and to make the mod removeable without a trace

Video:

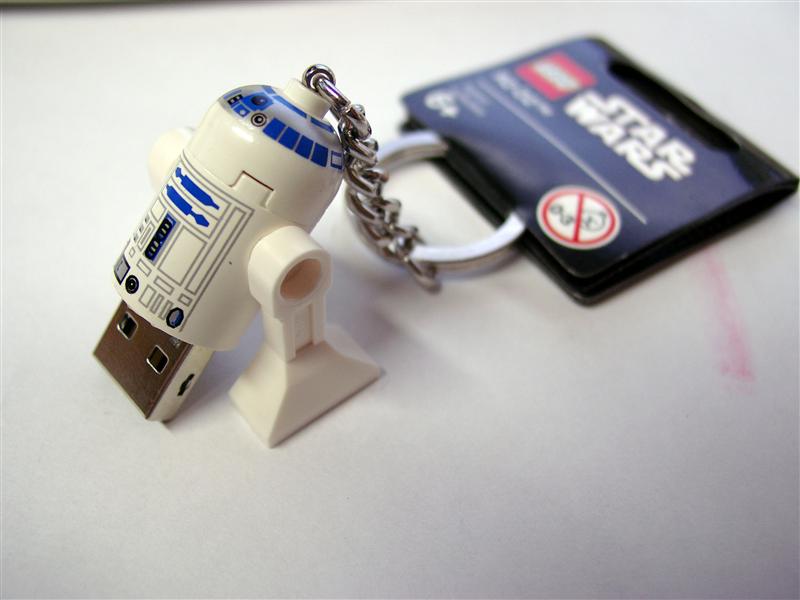

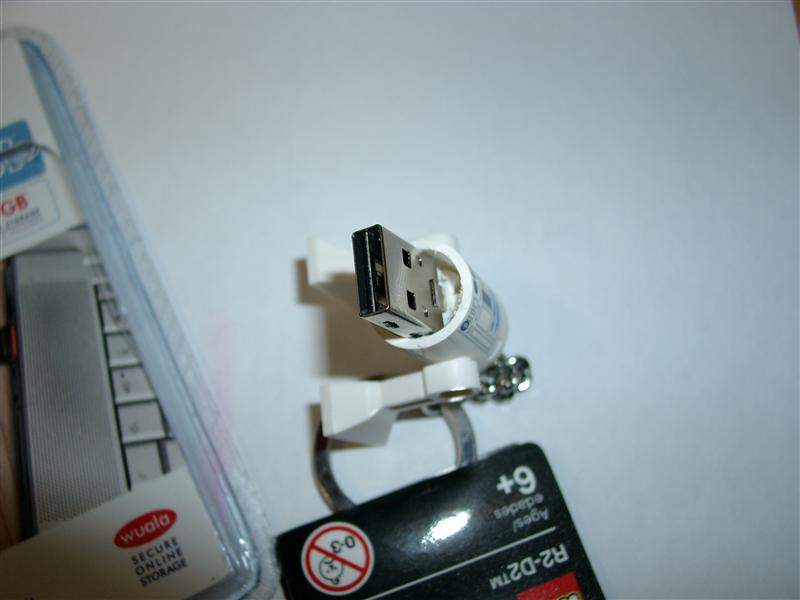

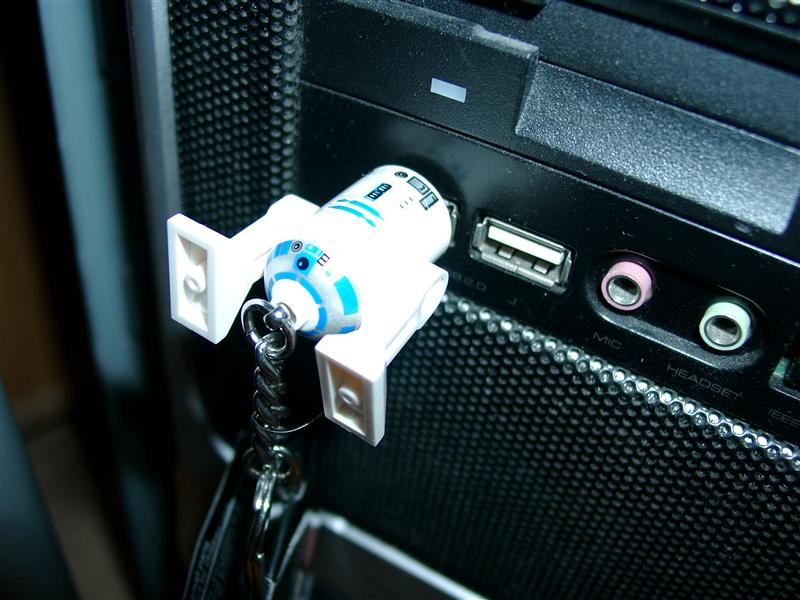

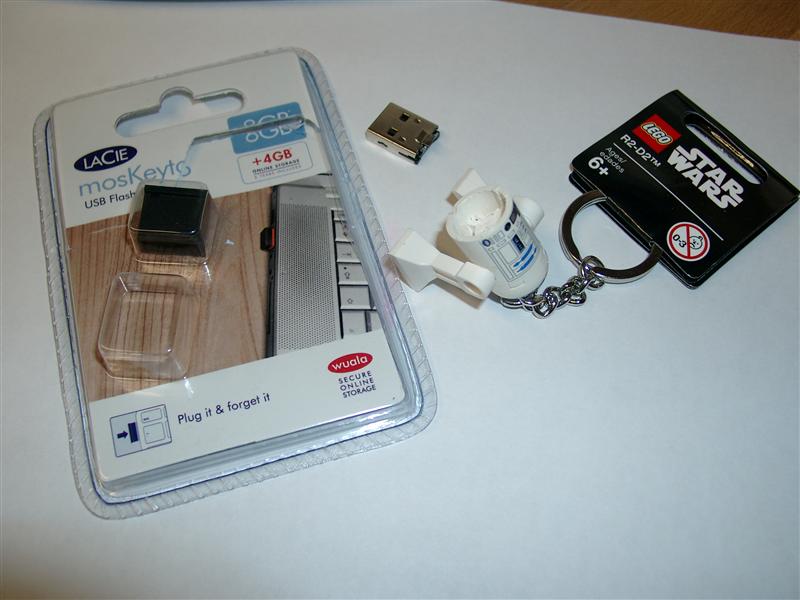

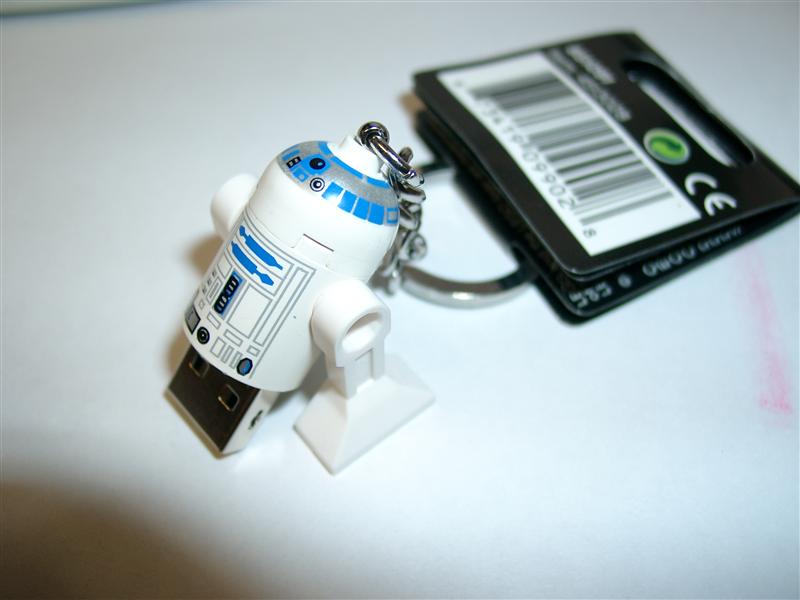

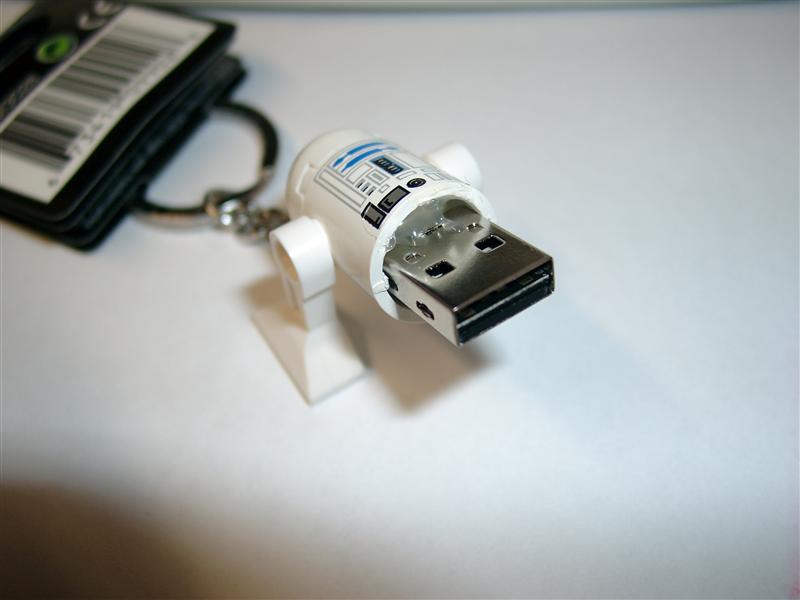

some times ago I orderd a LEGO R2D2 keychain and found a little usb-stick fits into the r2d2.

Its a Lacie moskeyto USB-Flash Drive 8GB.

First I done some dremel work at the r2d2 and removed to original cover of the usb-stick.

Some hot glue and ready to go.

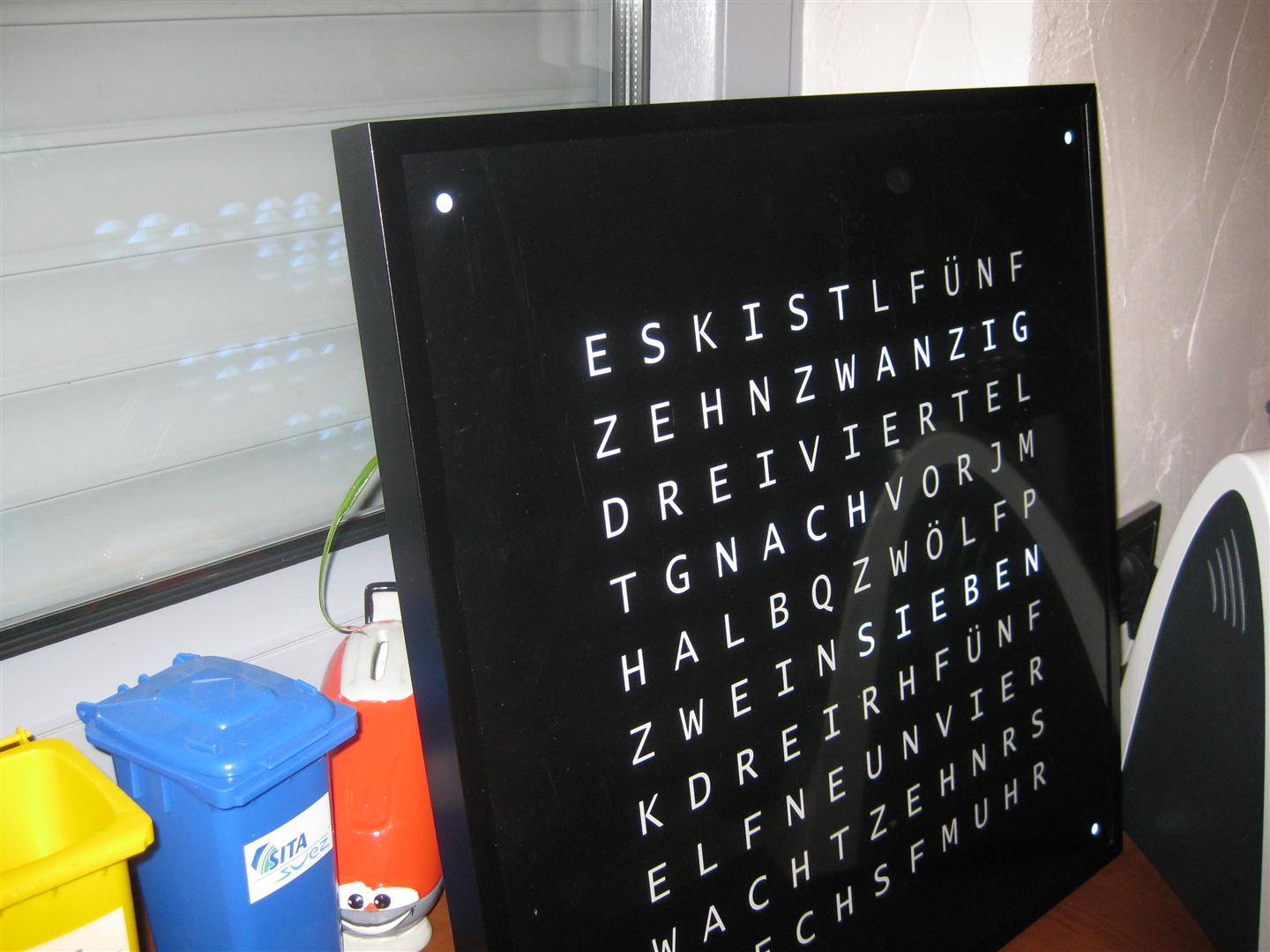

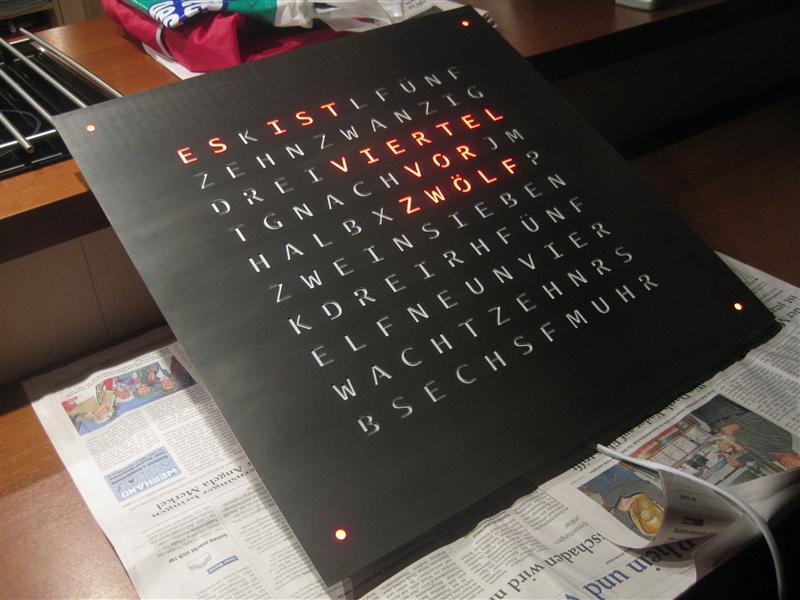

a few weeks ago I saw the one year old project of a clock with leds.

http://www.mikrocontroller.net/topic/156661#1479435

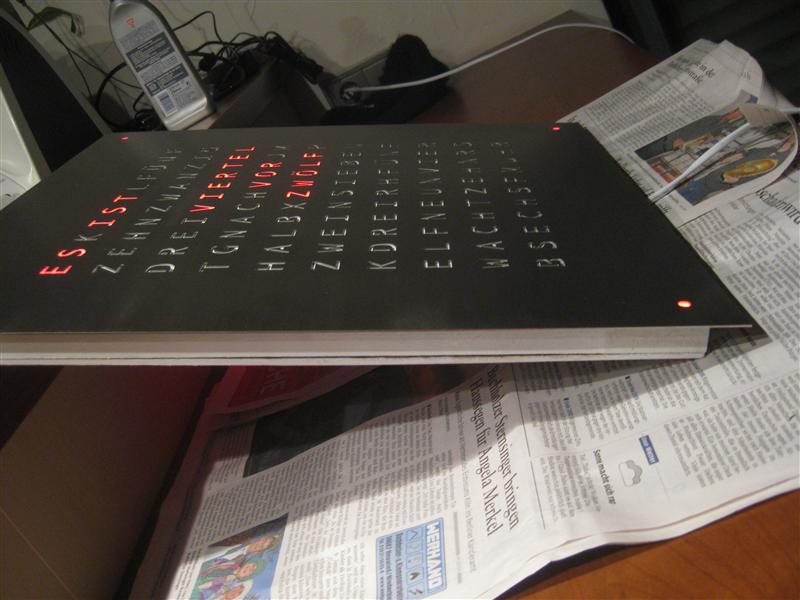

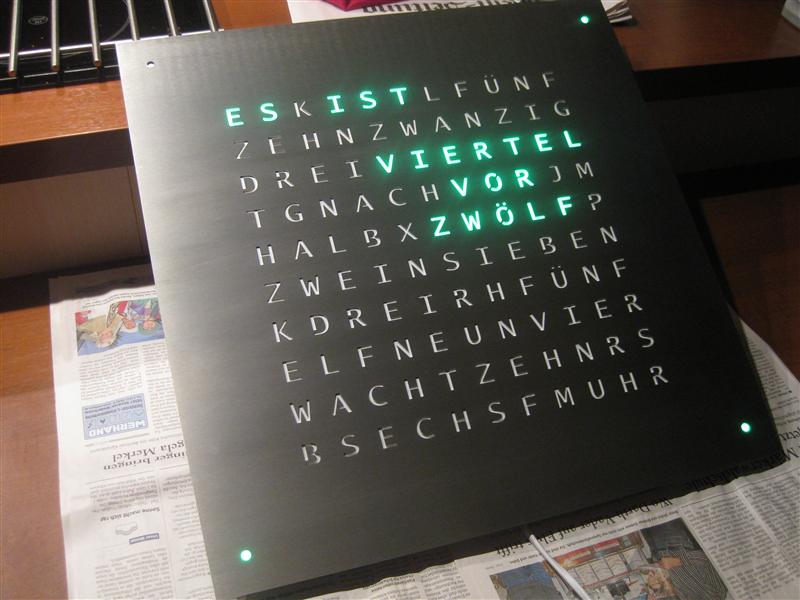

I done two for me one, with a black plexi and one with stainless steel.

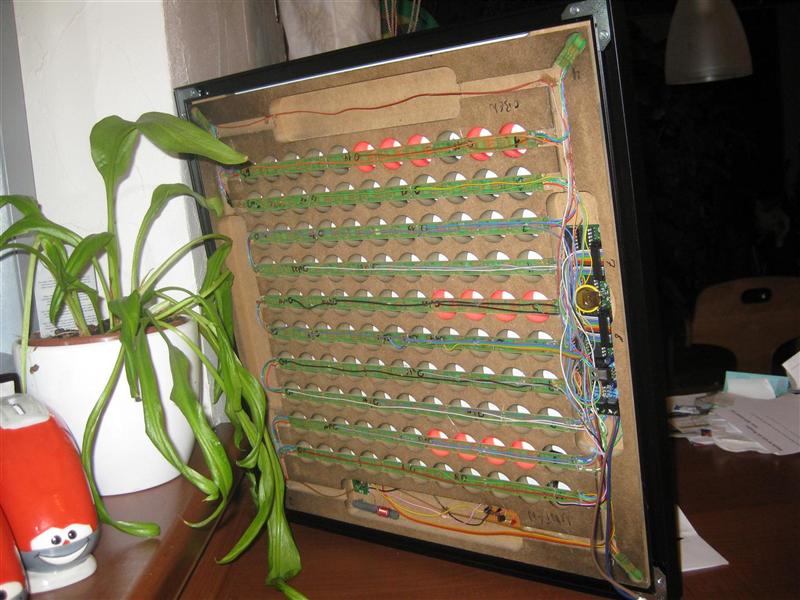

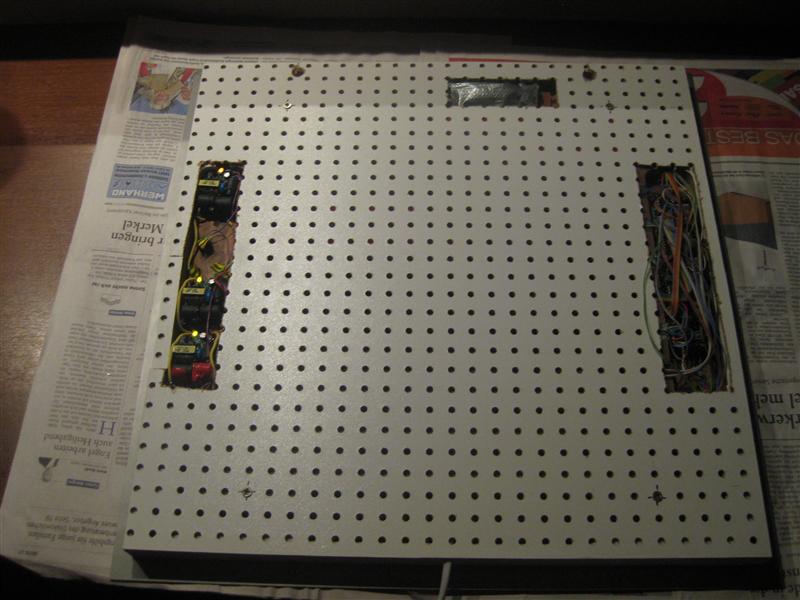

After a lot of soldering and some woodwork…

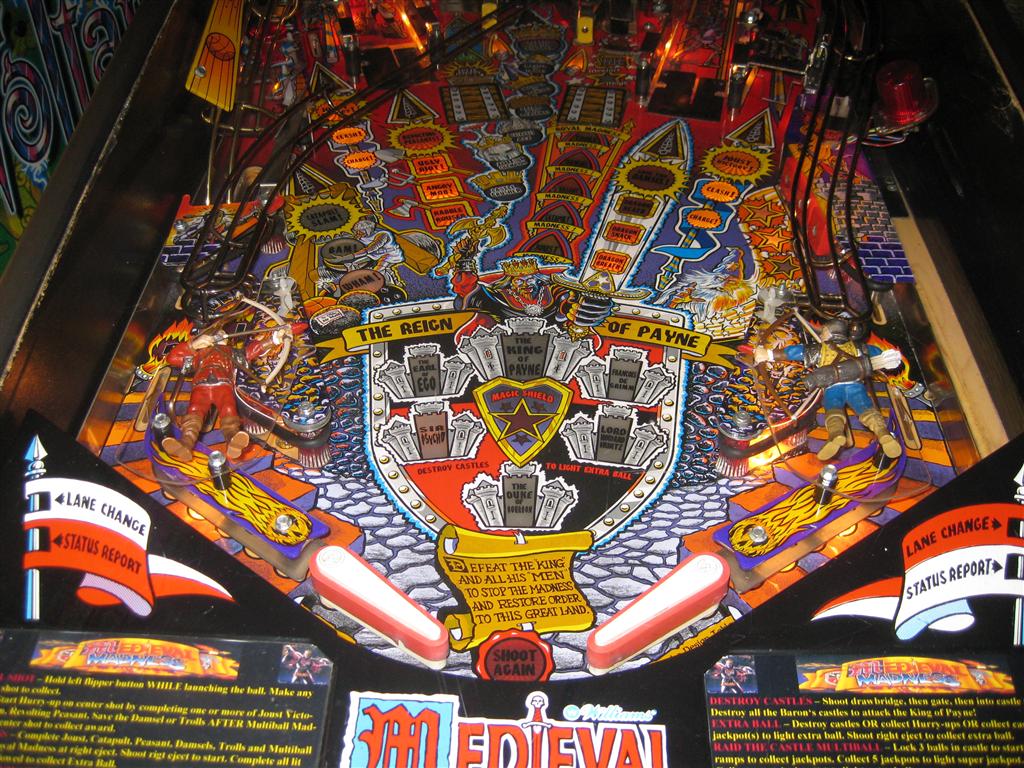

The next step after making the replacement of the Archer in MM was to replace the the arrowhead of the archer.

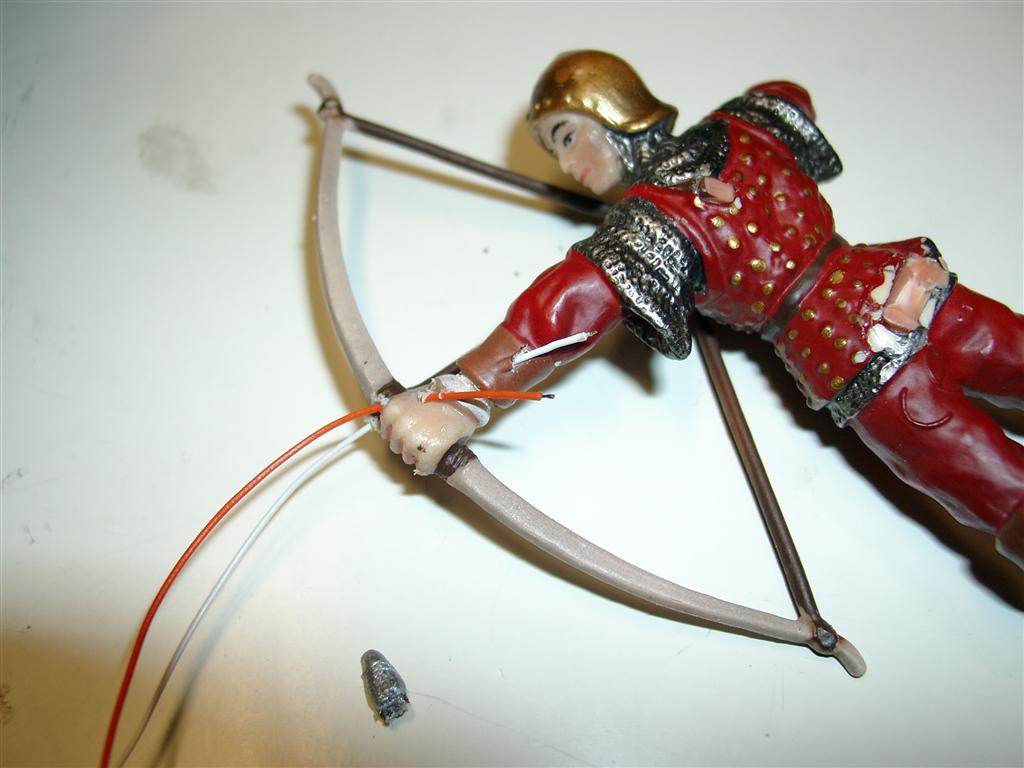

Some cutting, some drilling and wires

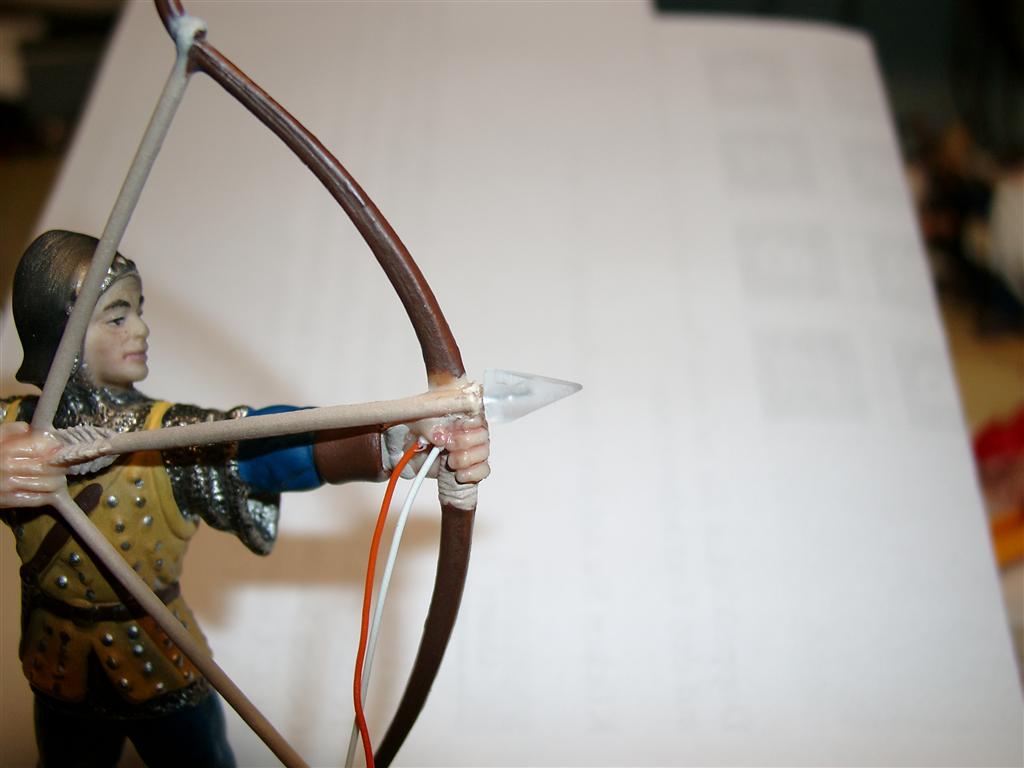

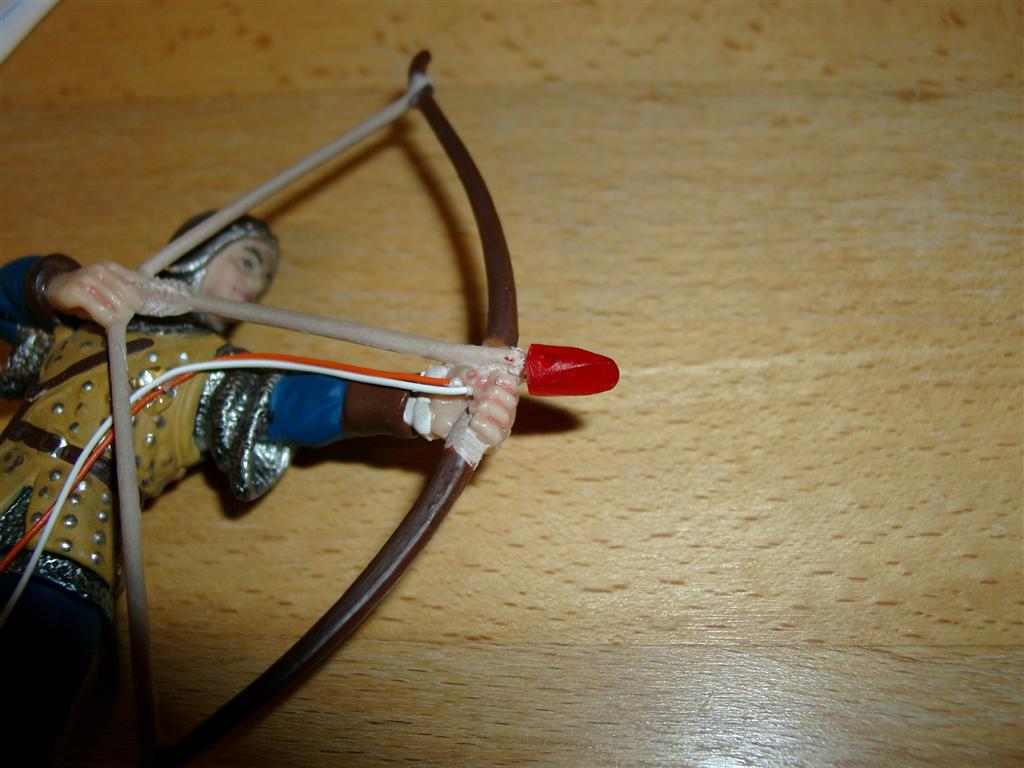

making a 5mm LED look like a arrowhead 😉

color it red (at the next I will try some silver color…)

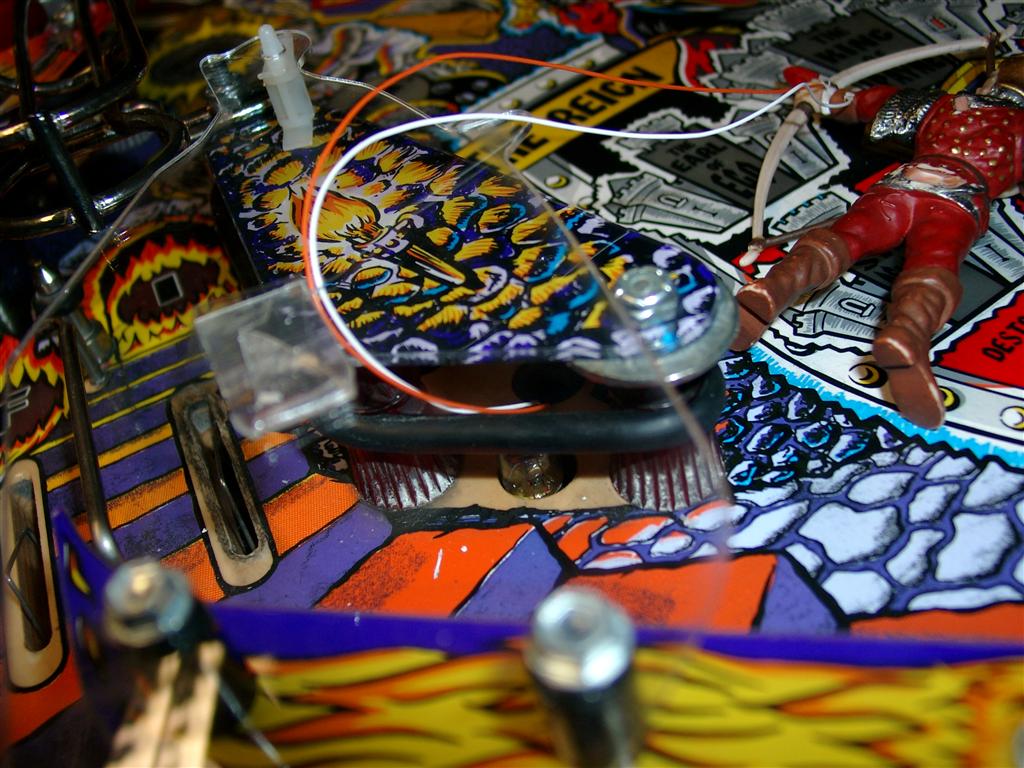

a hole for the wires through the plastics

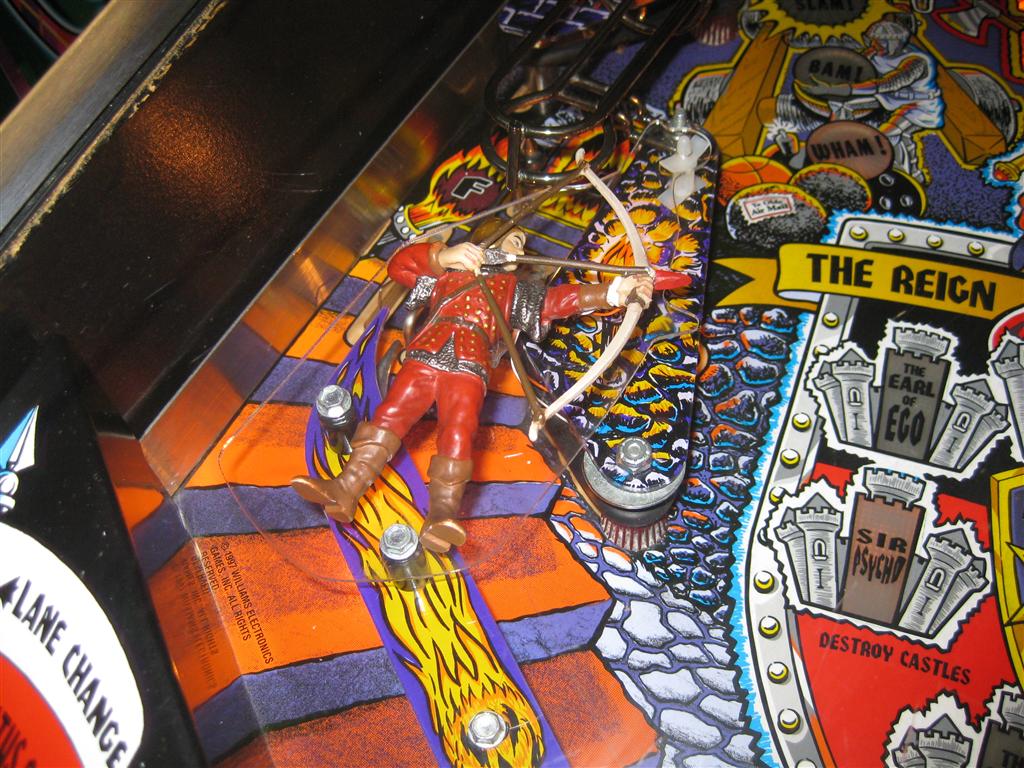

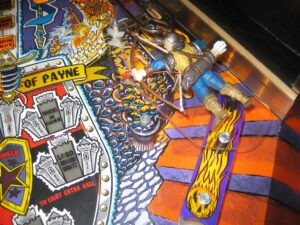

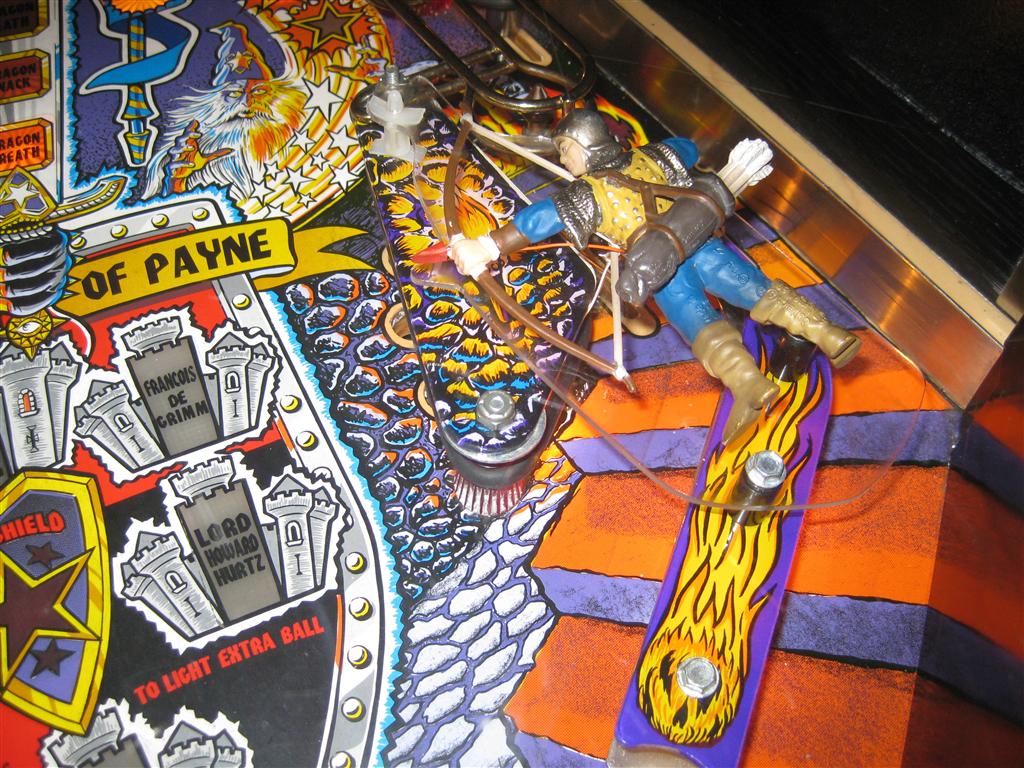

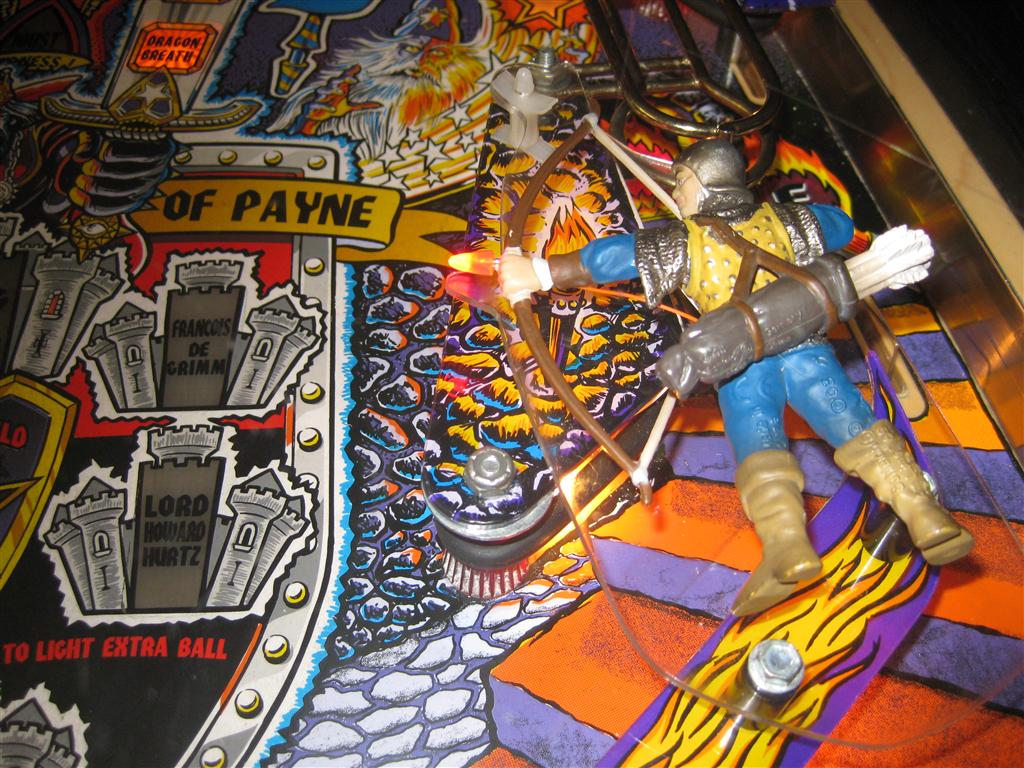

place the archer to the right position

the right one

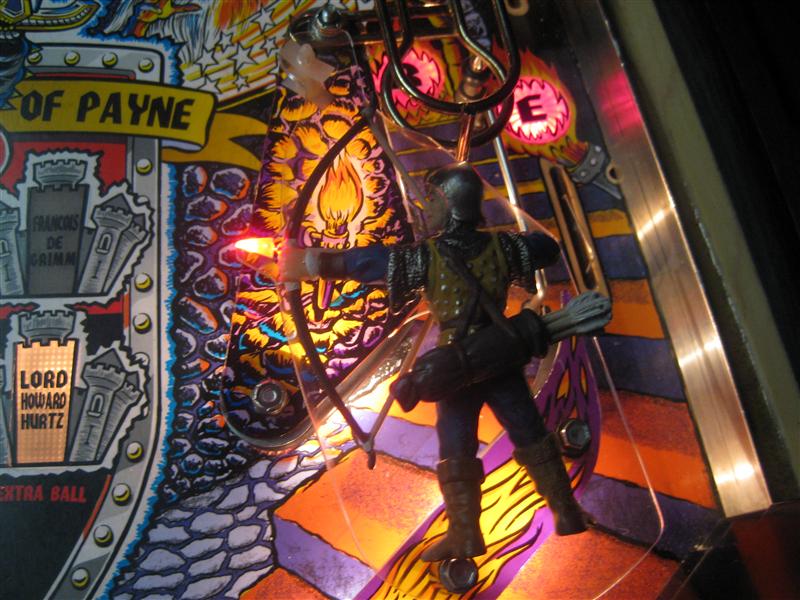

with light up red

both together

Video:

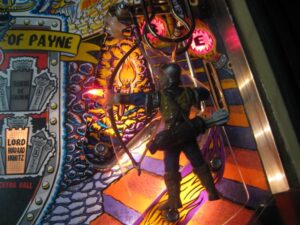

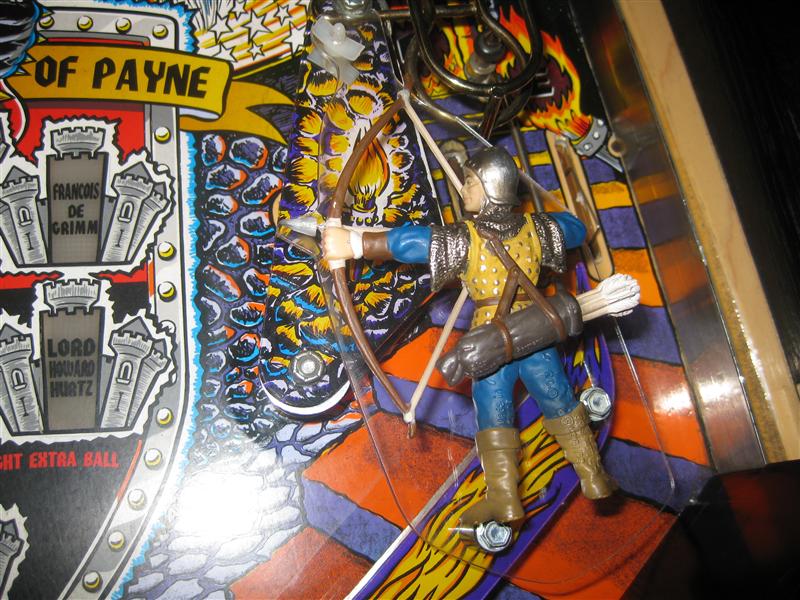

I done some little modifications on the archer.

The first version of the arrowhead was red, now I used some silver paint.

Look here:

Here you can find a installation Manual
