Kategorie: ArcadeSticks

  • Raspi in a Stick

    raspberry modding is everywhere. So we put a raspberry in a NeoGeo Oldstyle Arcade Stick for presentation at GamesCom 2017, so the younger games can get in touch with the neo-geo Games and not only with the look. With the right feeling a original NeoGeo Controller

    The position makes it possible to use the onboard USB Ports and  network connector.

    First some dremel work to make it fit into the neogeo arcadestick case

    rasp4

    rasp3

    then a hdmi slim extension and a usb cable

    rasp1

    As the NeoGeo X Controller is a standard USB Controller it was possible to connect the usb part directly to one usb connector of the pi

    rasp3

    in the future it could be possible to make the buttons directly to GPIO Ports

    So it looks great

    15335

    15335_1

  • UWRC Capcom Power Stick Fighter MD

    out of the 90th this Capcom Fighter Stick was a great peace of its time. I used the rarely MD Version, because I love white more as black.

    Branded to capcom, nice, never seen something like this before 🙂

    capcom_CPSF_sub_d

    But its time to desolder the original Capcom heart. So we didn’t get any interfear

    capcom_CPSF_desoldering_00

    capcom_CPSF_desoldering_01

    capcom_CPSF_00

    position of uwrc tx board

    capcom_CPSF_01

    wiring



    capcom_CPSF_05

    changing of charging resistor to 5,11k -> around 200mA current for the big one 3000mAH Lipo, hope not to recharge it in a lifetime 😉



    capcom_CPSF_07

    preparing of usb port/led

    capcom_CPSF_06

    capcom_CPSF_08

    some pictures

    capcom_CPSF_10

    capcom_CPSF_09

    capcom_CPSF_11

    capcom_CPSF_13

    capcom_CPSF_12

    capcom rules

    capcom_CPSF_14

  • Balltop milky white with RGB-LED

    today I received the balltop for my Sanwa JLF-TP-8YT Stick.

    Here you can see a milky white balltop 37,5mm diameter with 6mm insert for use in arcadesticks.
    You will find a RGB-Led inside for make all colours you wish

    On the left site you will see a standard red balltop.

    In the middle the milky one, right the milky one with LED on:

    balltop_milky_blue2

    balltop_milky_blue1

    balltop_milky_green

    Video

  • Furious Controller Ikaruga Custom Design

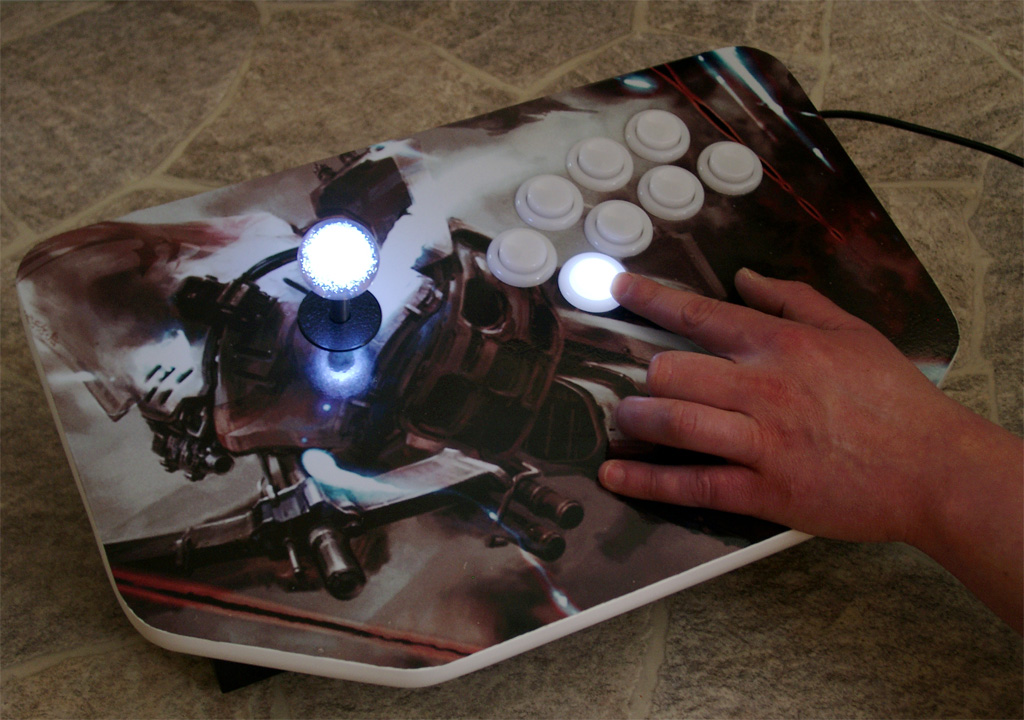

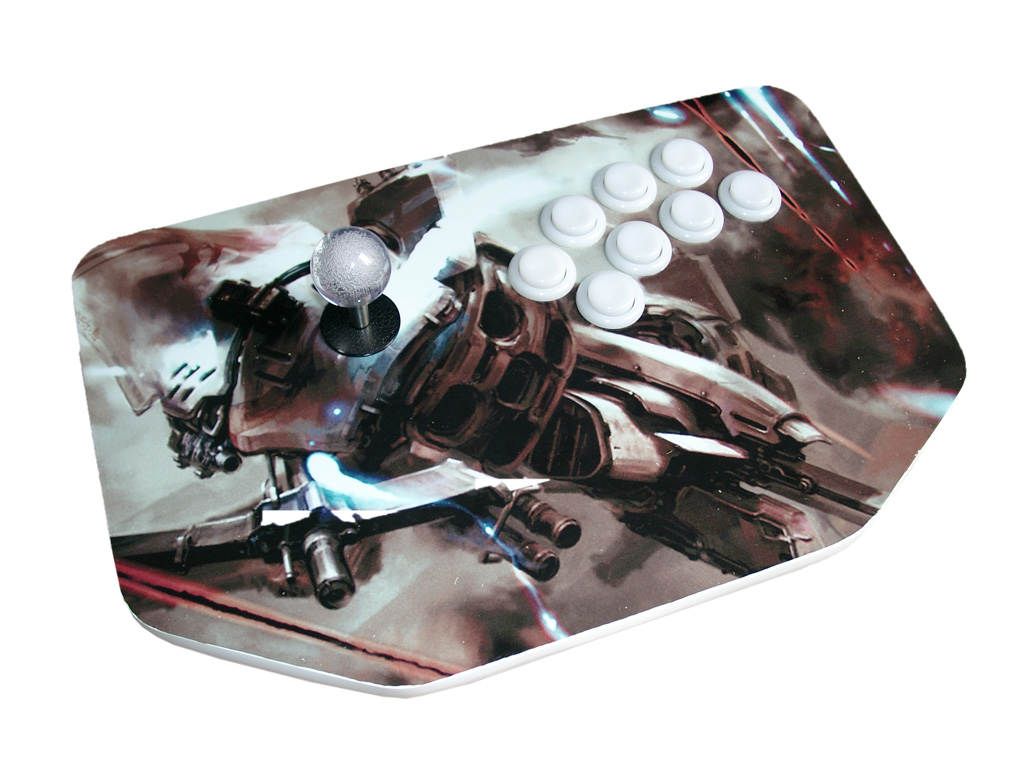

    today we build a Furious Controller with a custom design including lightning of the buttons.

    The Stick Ball is on every time the controller is pluged into a Videogame Console.

    If you press ab button the button will light on as long as you press it.

    ikaruga

    ikaruga_2
