  • internal PC Engine UWRC Receiver



    I used my IFU-30 Unit, so there was no need to remove the RF Unit. As I didn’t wanted some wires to the left or right side.

    I put all needed connections to the rear side. Power, RGB-Out, Audio Out.



    IMG_0073



    I opened the RF-box removed the orignal switch and replaced it with UWRC switch.

    ground to one side and the other side of the switch to the uwrc board

    IMG_0028

    IMG_0032

    IMG_0034

    IMG_0033

    IMG_0067

    thanks again to micro, for his great Idea how to make the UWRC plugable, by removing the filters.

    IMG_0021

    IMG_0020

    IMG_0022

    IMG_0051

    green wire uwrc controll switch, red and black to the signal led combo I created at the upper side

    blue „bigger“ wires to the 7805 replacement for swiching the pce off/on

    IMG_0041

    a red 5mm led and a green 5mm led dremel work and to the ventilation grid

    IMG_0044

    IMG_0061

    IMG_0058

    IMG_0062

    no more heat -> replacement of the 7805

    IMG_0038

    Great feature, you can power off and on the PC-Engine via holding select and Run for around 1sec. Ideal for users of everdrives. Hope this feature will find his place in all new internal receivers from micro 😉

    Final Pic

    IMG_0072

  • NeoGeo AES 3-5 RGB Bypass with THS 3714

    thanks to arcadeTV we have a optimized Version with THS 3714 for NeoGeo AES 🙂

    -cut left side of the three 6,8k resistors for input rgb input of ths amplifier

    -cut the left side of the three 75 ohm resistors for output to the din 8.1

    -cut BF for sync output to the din 8.1

    the perfect voltage divider values for bypass PCB :

    R1,R2,R3=7,51k

    R4,R5,R6=2,29k

    @ AES 3-5 Mainboard Pin 3 Comp Video and Pin 7 C-Sync are the same on both you will get Comp. Video.

    After the modification its is neogeo conform Pin3 comp. Video and Pin 7 C-Sync comming from the THS RGB Bypass PCB

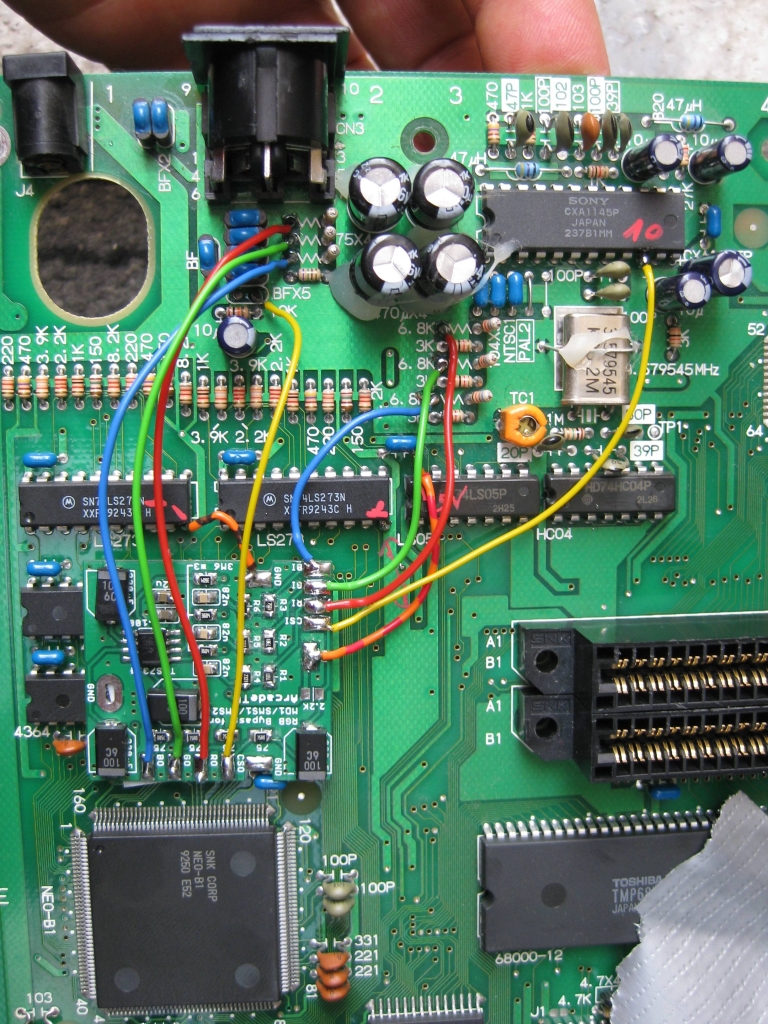

    aes3-5_1

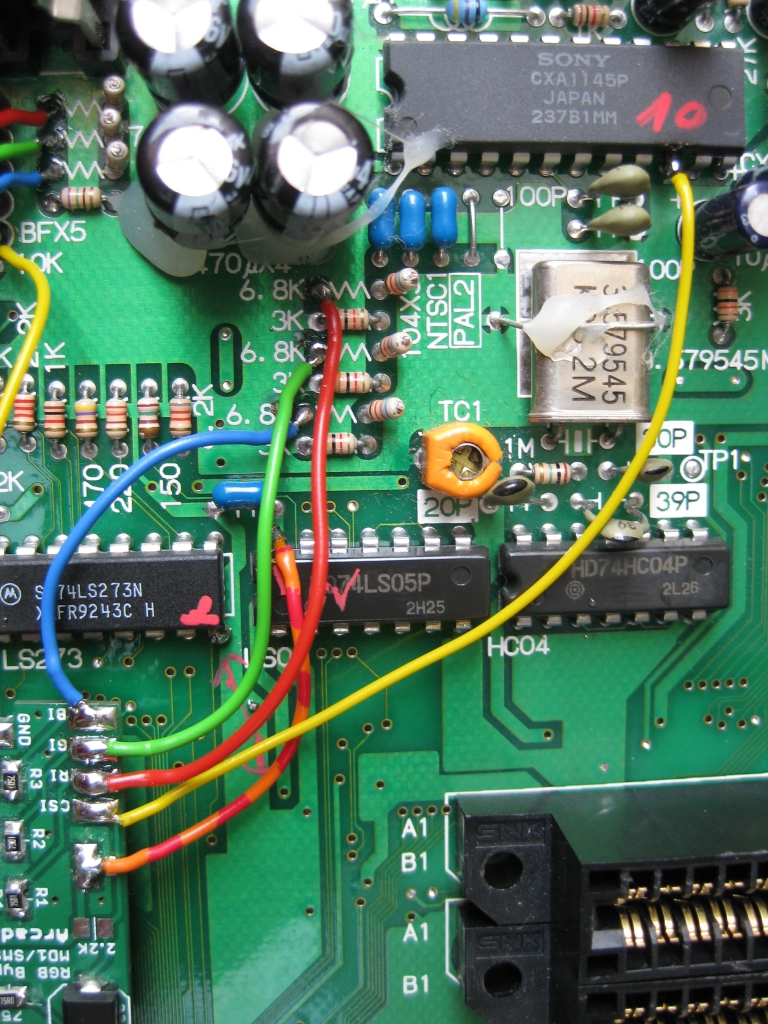

    aes3-5_zoom

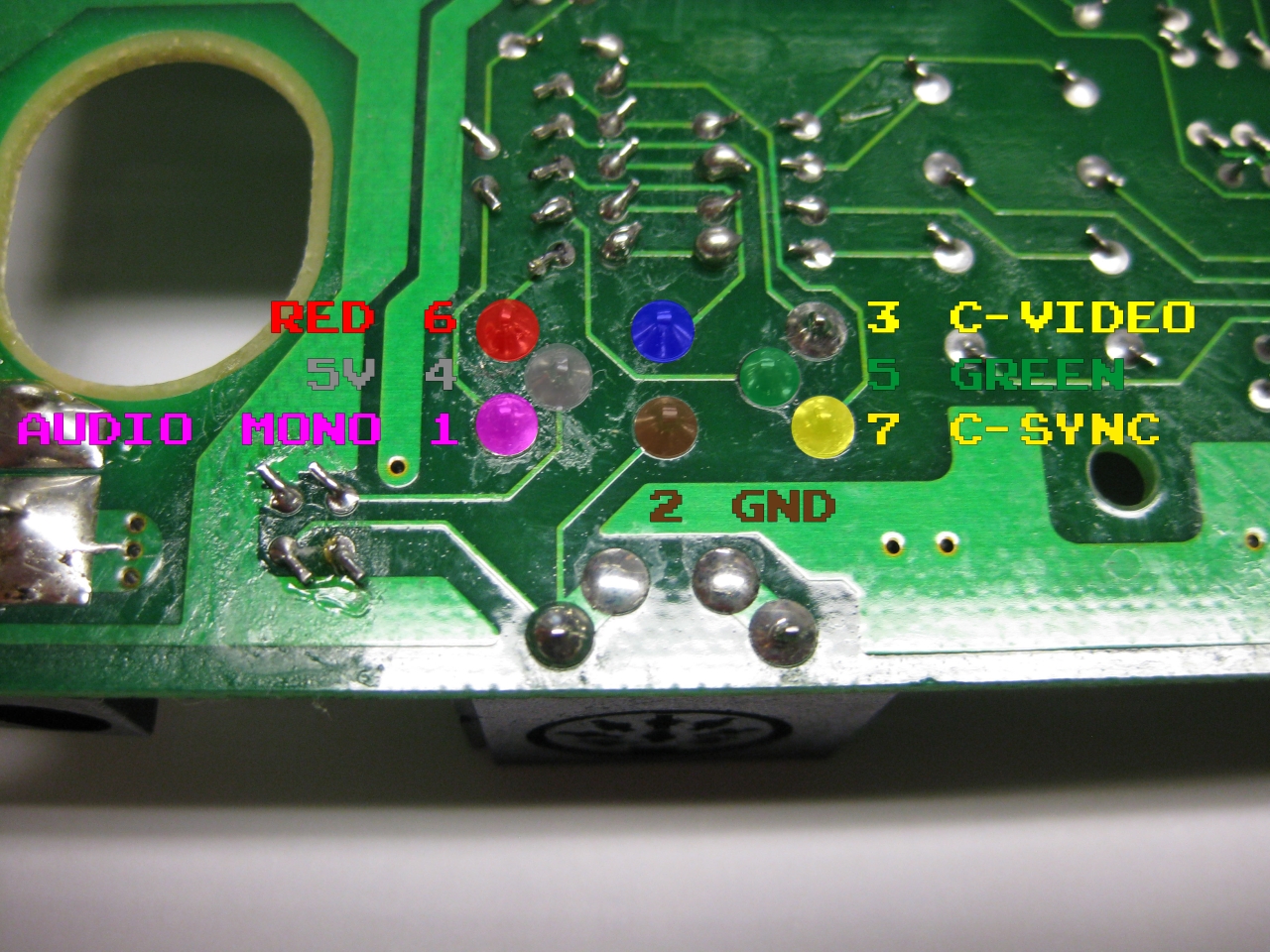

    For some help of solder side

    neogeo-din-print-solder

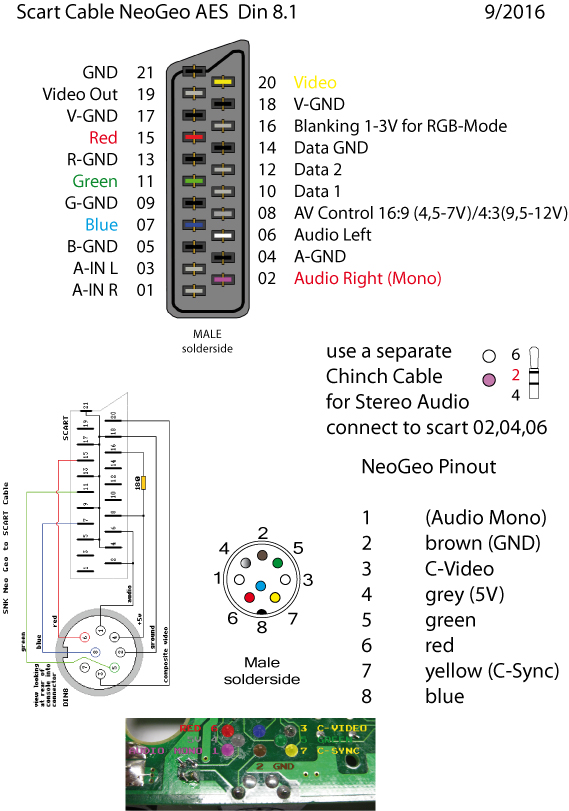

    cable wiring

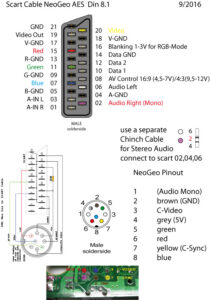

    scart_NeoGeo-AES_Din-8.1_Layout_2016

  • Digital Audio Out @ 2 Chip SNES with S-DSP

    crystal clear sound :-))

    digi_2_chip

    IMG_9776

    IMG_9777

    IMG_9772

  • Recap SNES 1 Chip

    Recap of SNES is needed too, during age of Elkos 🙂

    1chiprecap

  • UWRC Capcom Power Stick Fighter MD

    out of the 90th this Capcom Fighter Stick was a great peace of its time. I used the rarely MD Version, because I love white more as black.

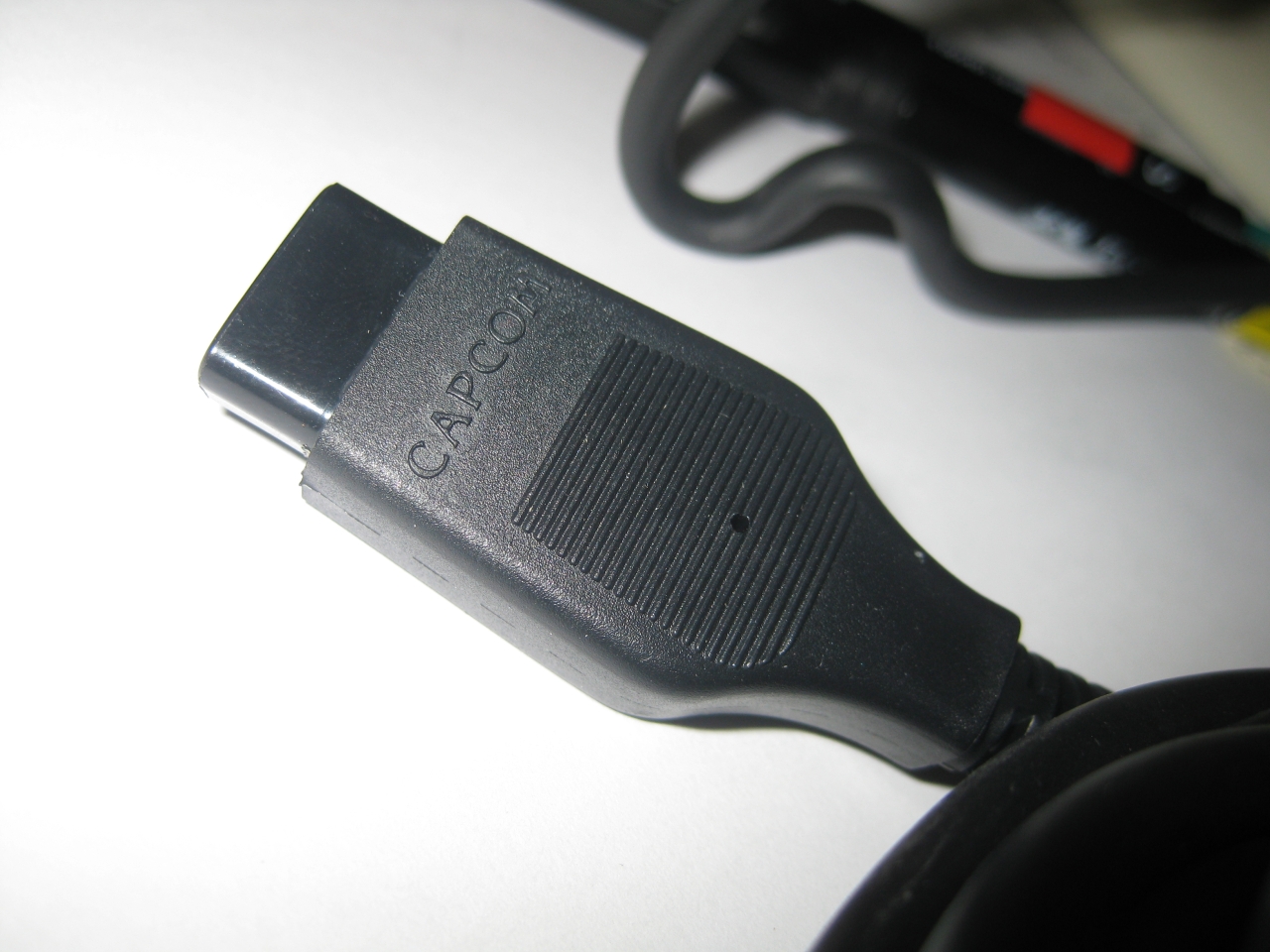

    Branded to capcom, nice, never seen something like this before 🙂

    capcom_CPSF_sub_d

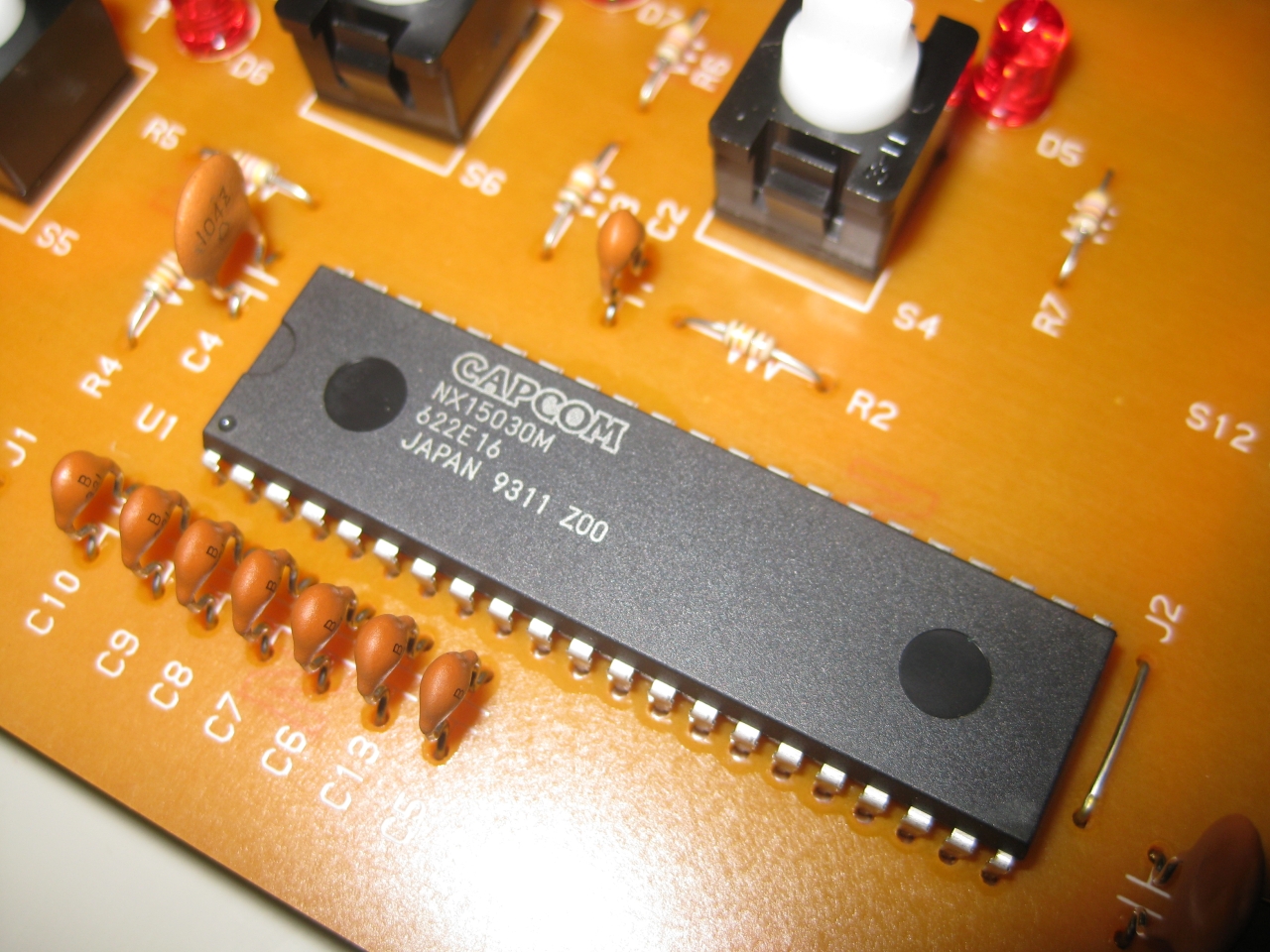

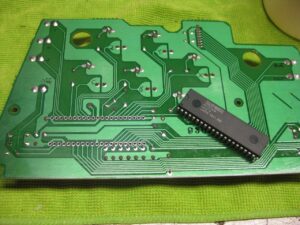

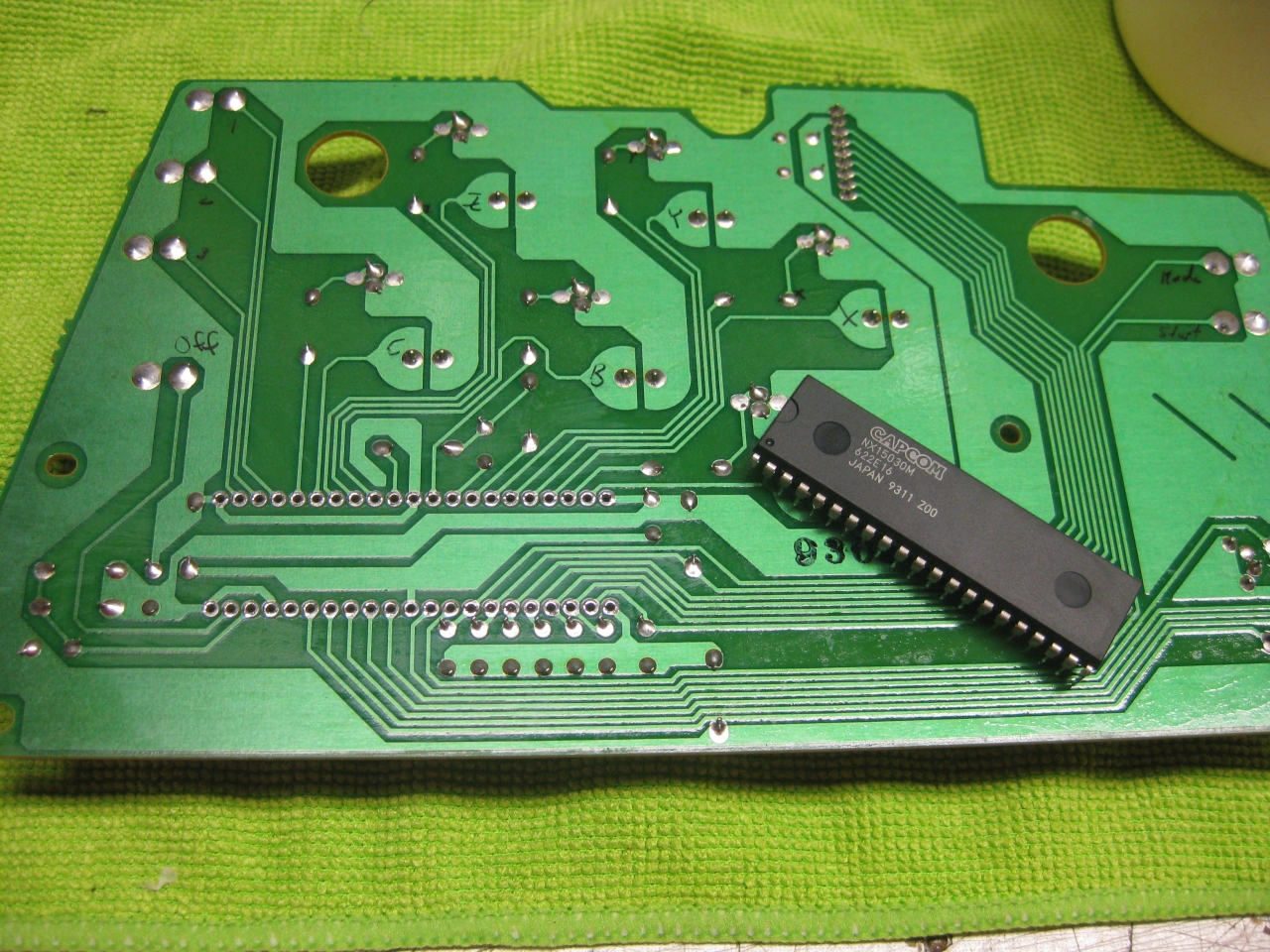

    But its time to desolder the original Capcom heart. So we didn’t get any interfear

    capcom_CPSF_desoldering_00

    capcom_CPSF_desoldering_01

    capcom_CPSF_00

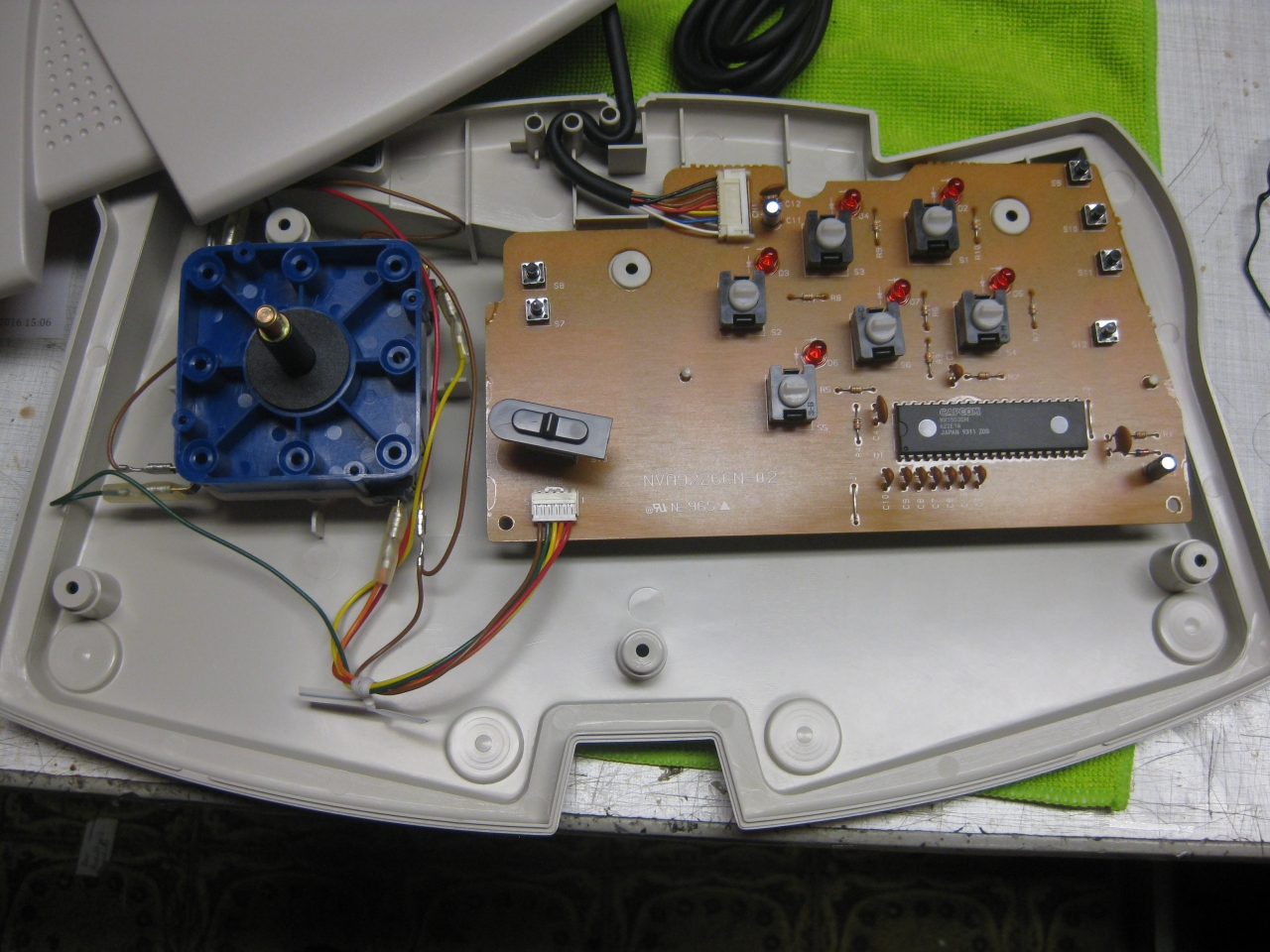

    position of uwrc tx board

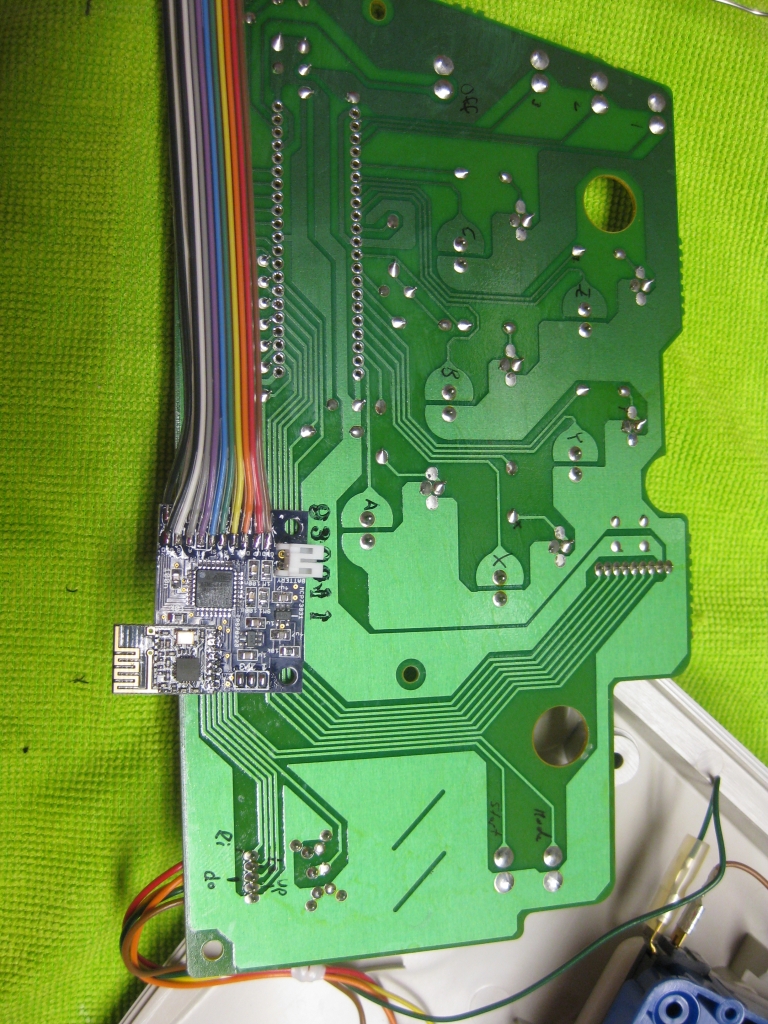

    capcom_CPSF_01

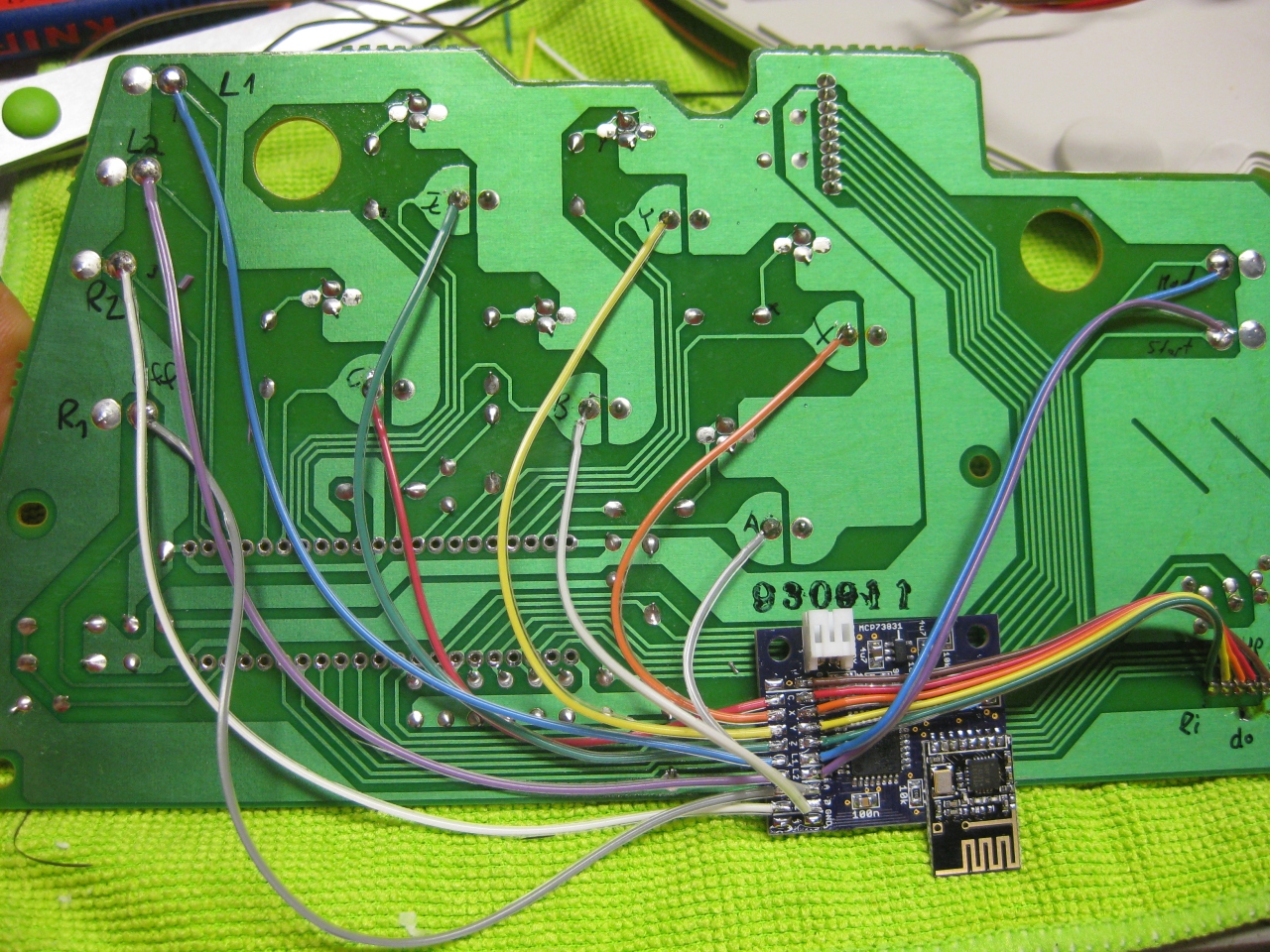

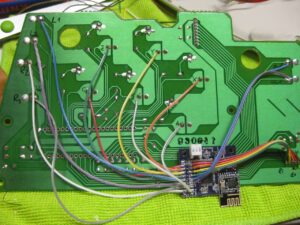

    wiring



    capcom_CPSF_05

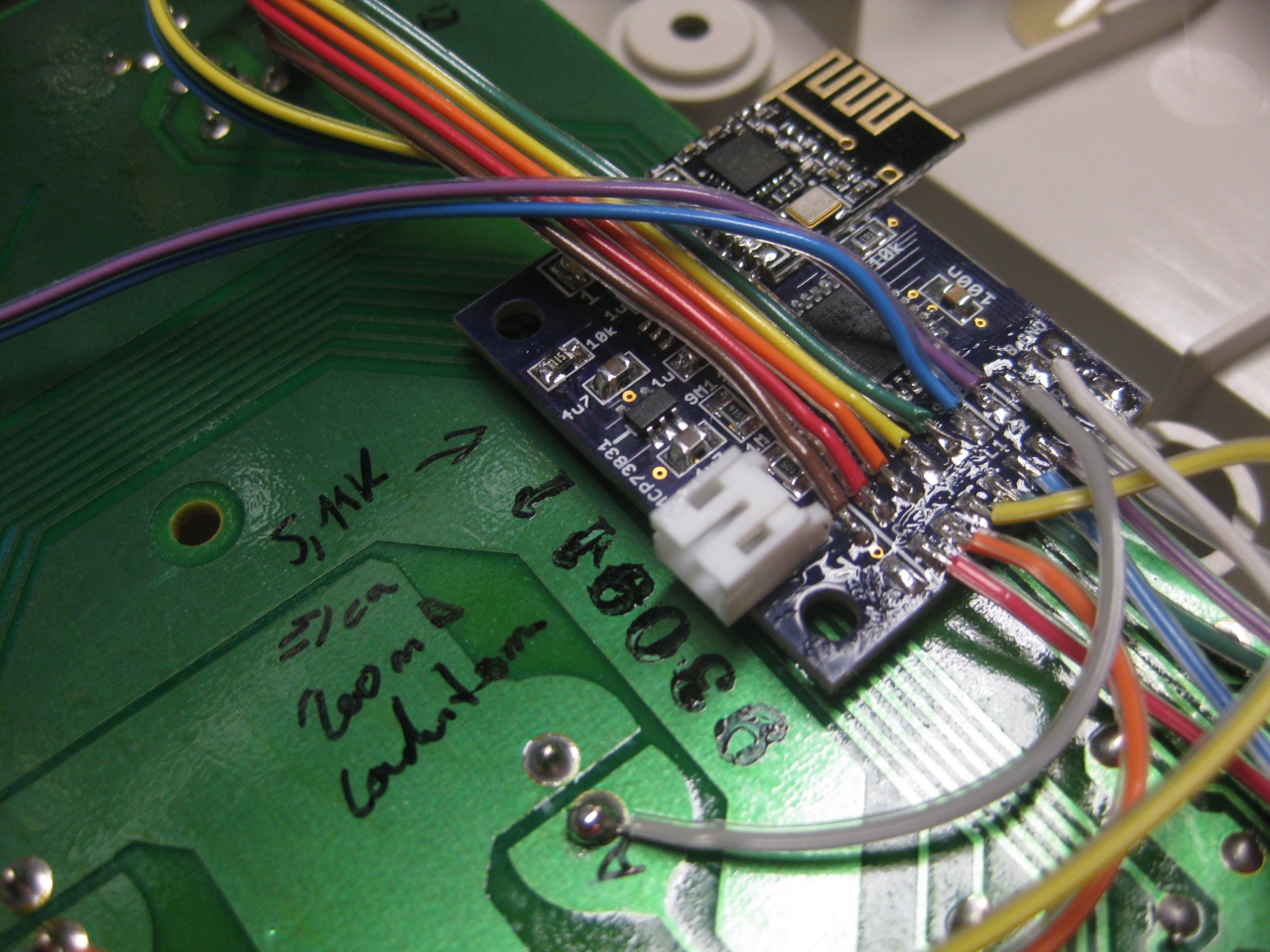

    changing of charging resistor to 5,11k -> around 200mA current for the big one 3000mAH Lipo, hope not to recharge it in a lifetime 😉



    capcom_CPSF_07

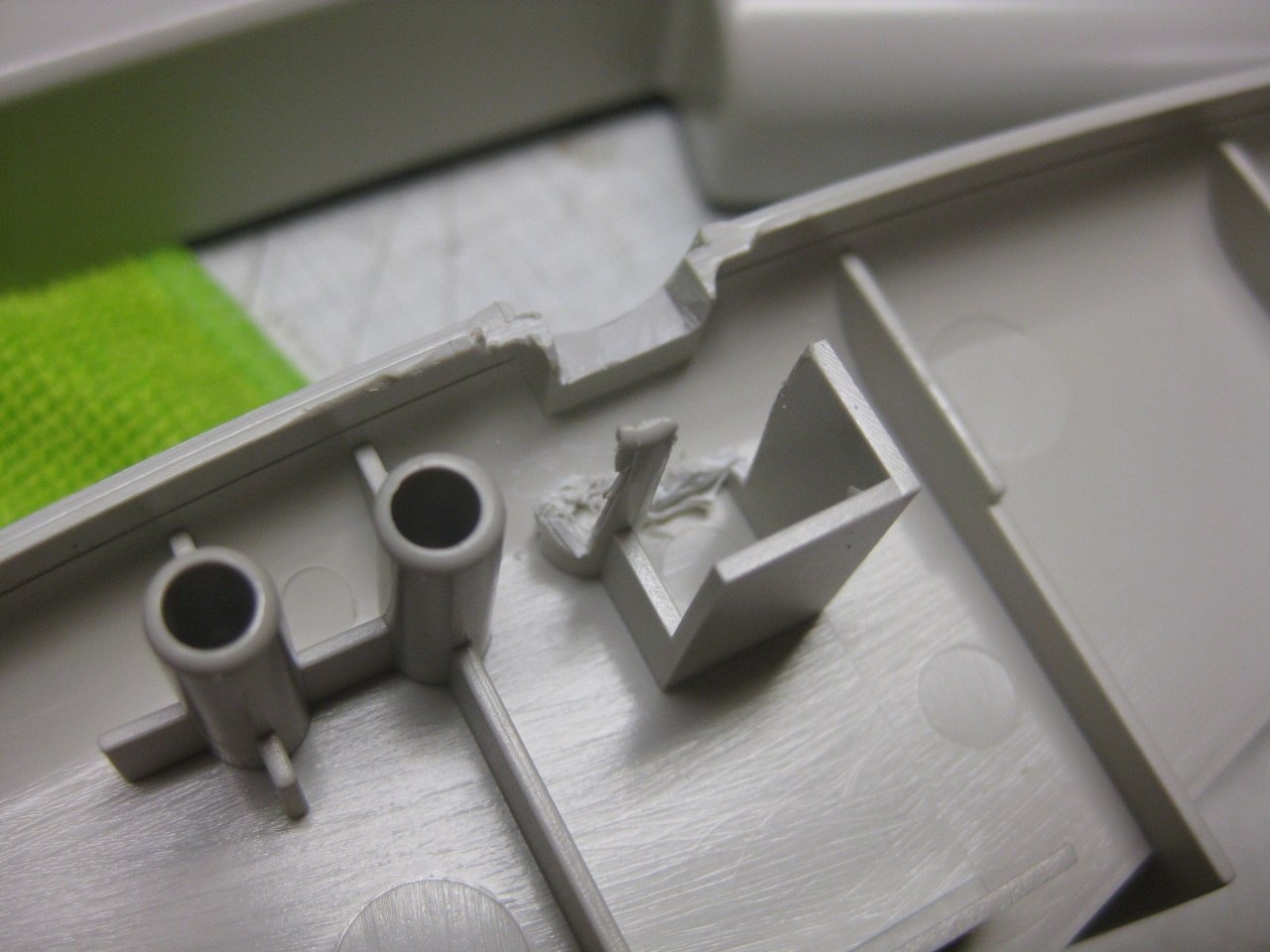

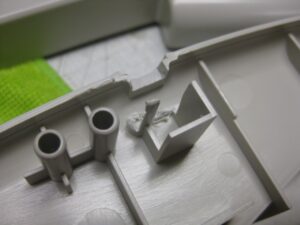

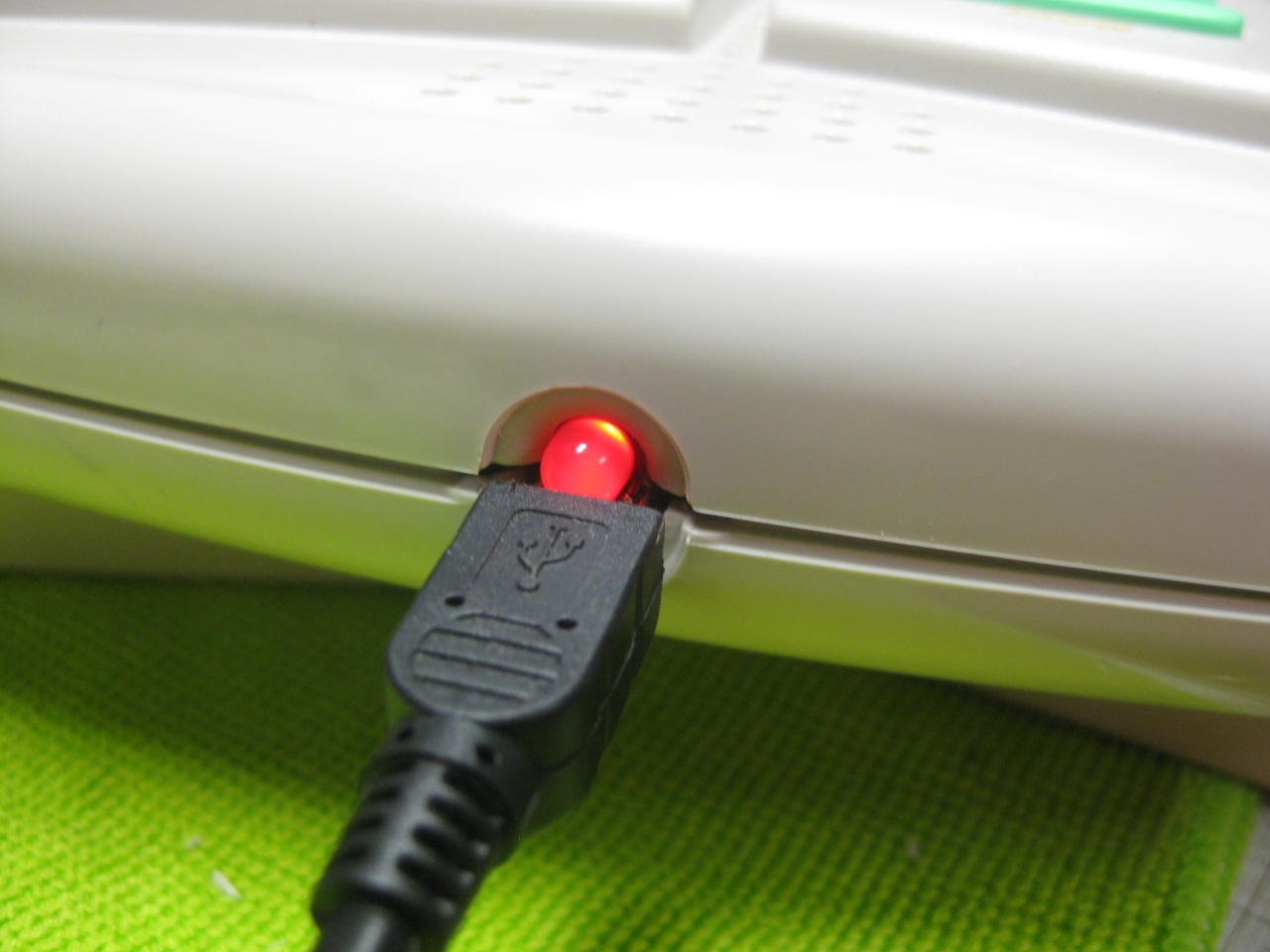

    preparing of usb port/led

    capcom_CPSF_06

    capcom_CPSF_08

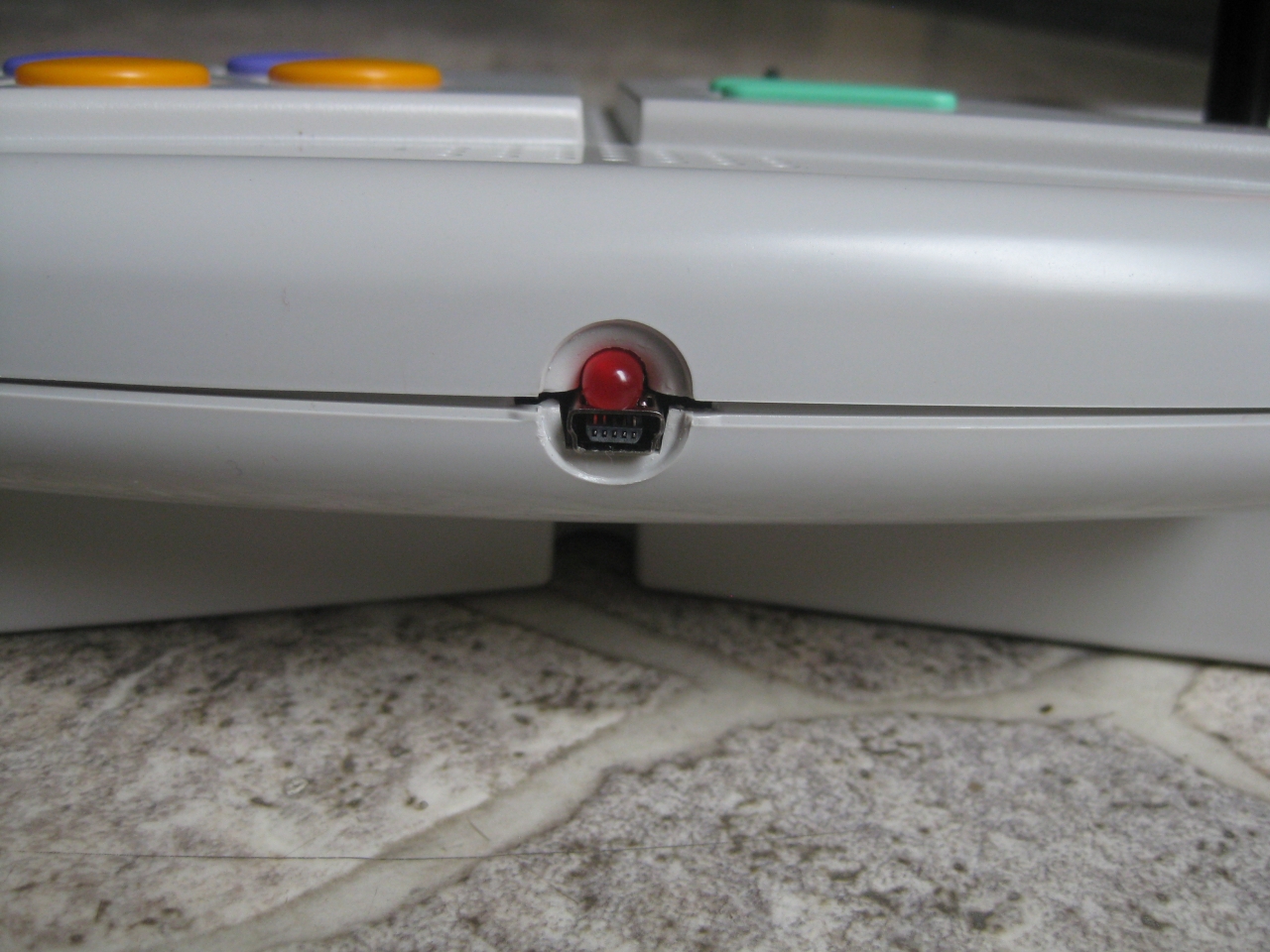

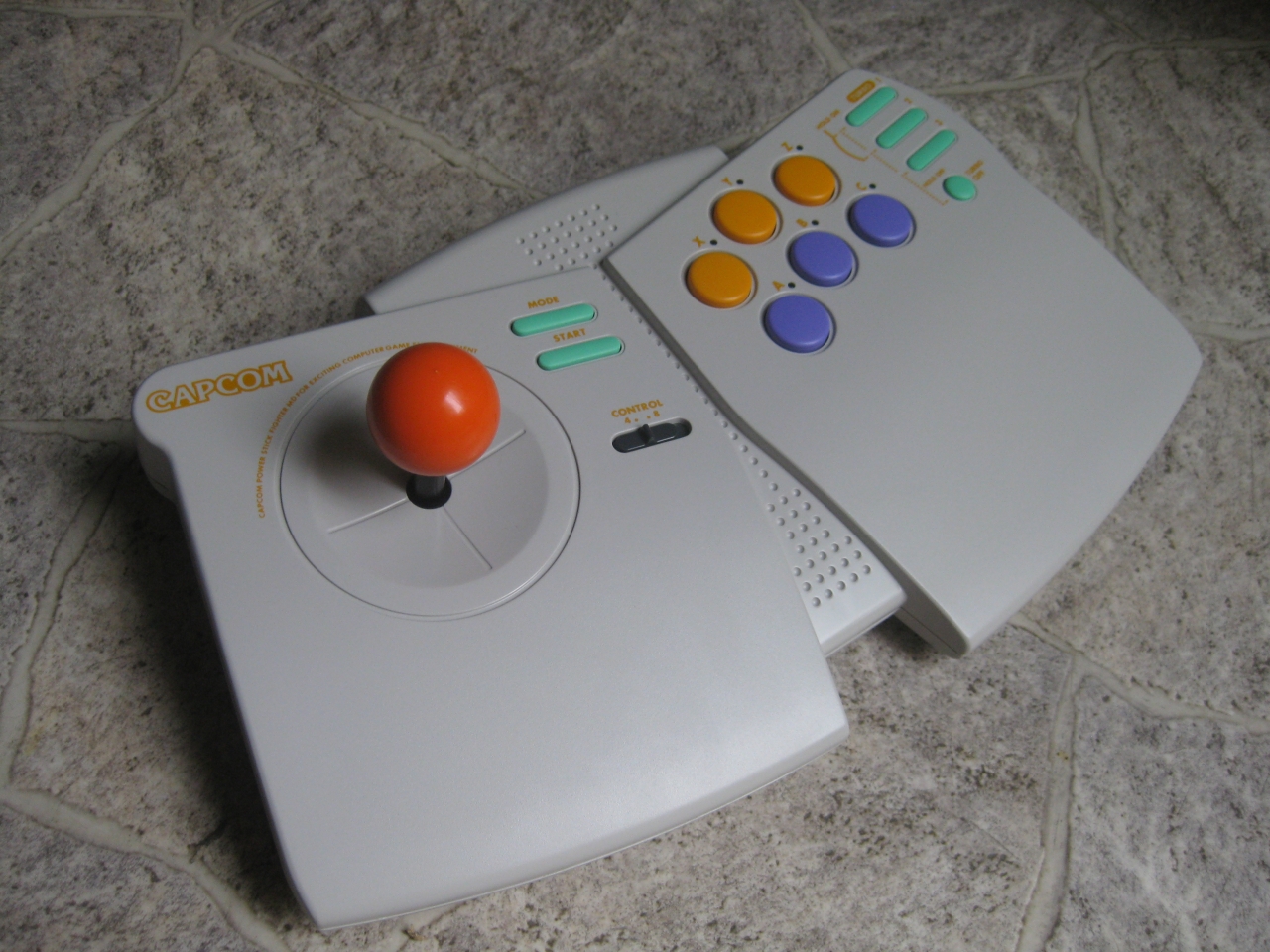

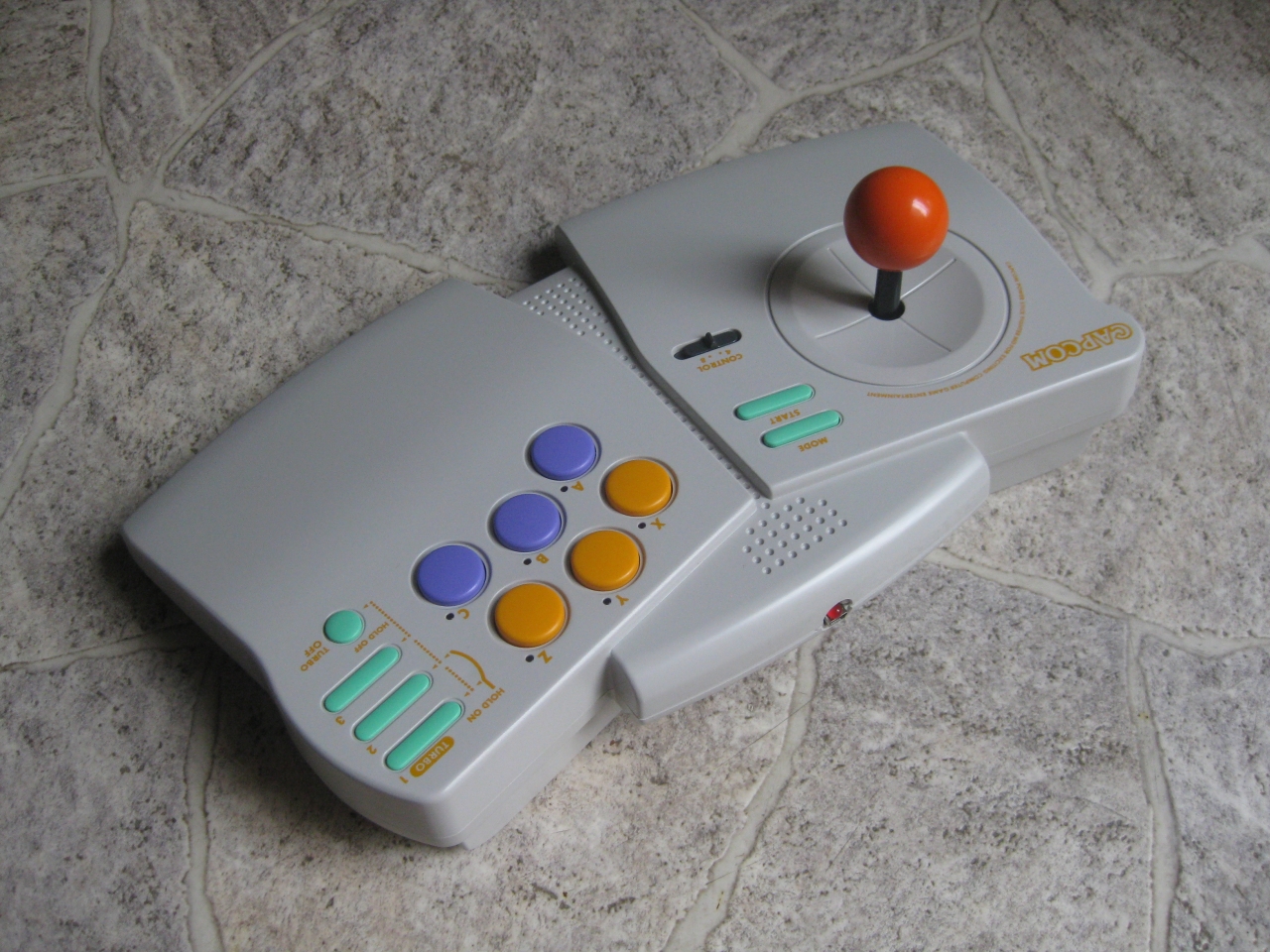

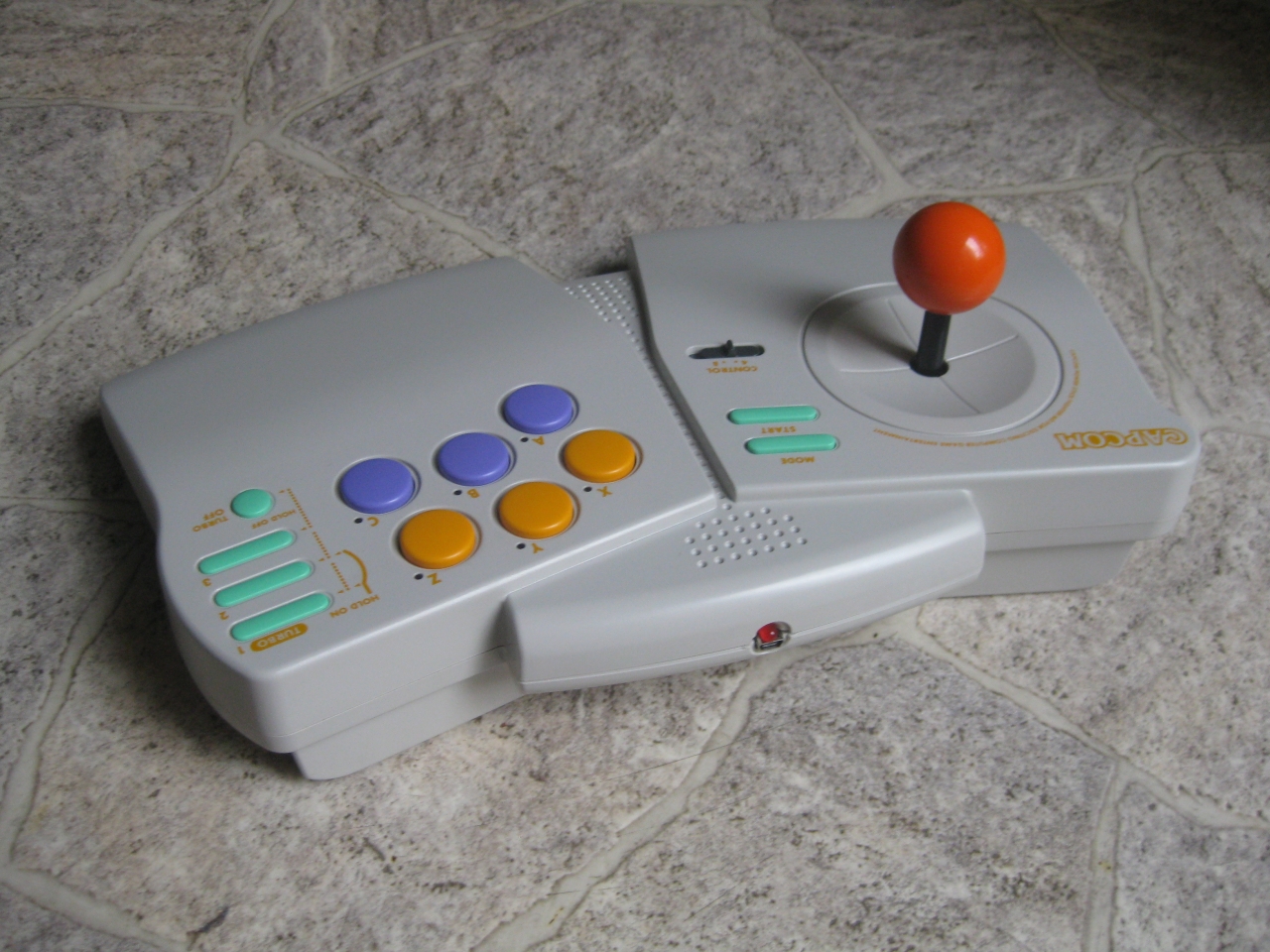

    some pictures

    capcom_CPSF_10

    capcom_CPSF_09

    capcom_CPSF_11

    capcom_CPSF_13

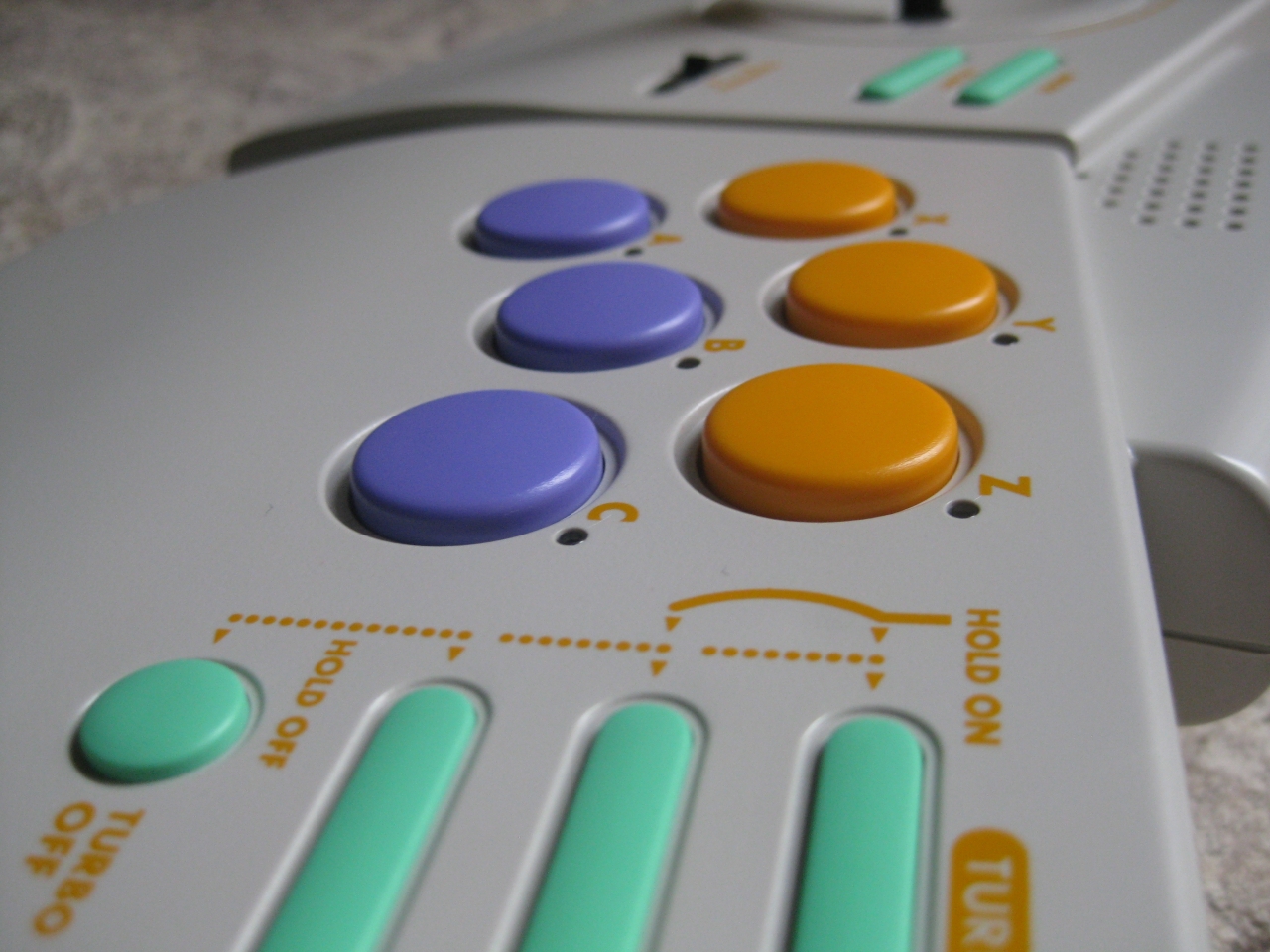

    capcom_CPSF_12

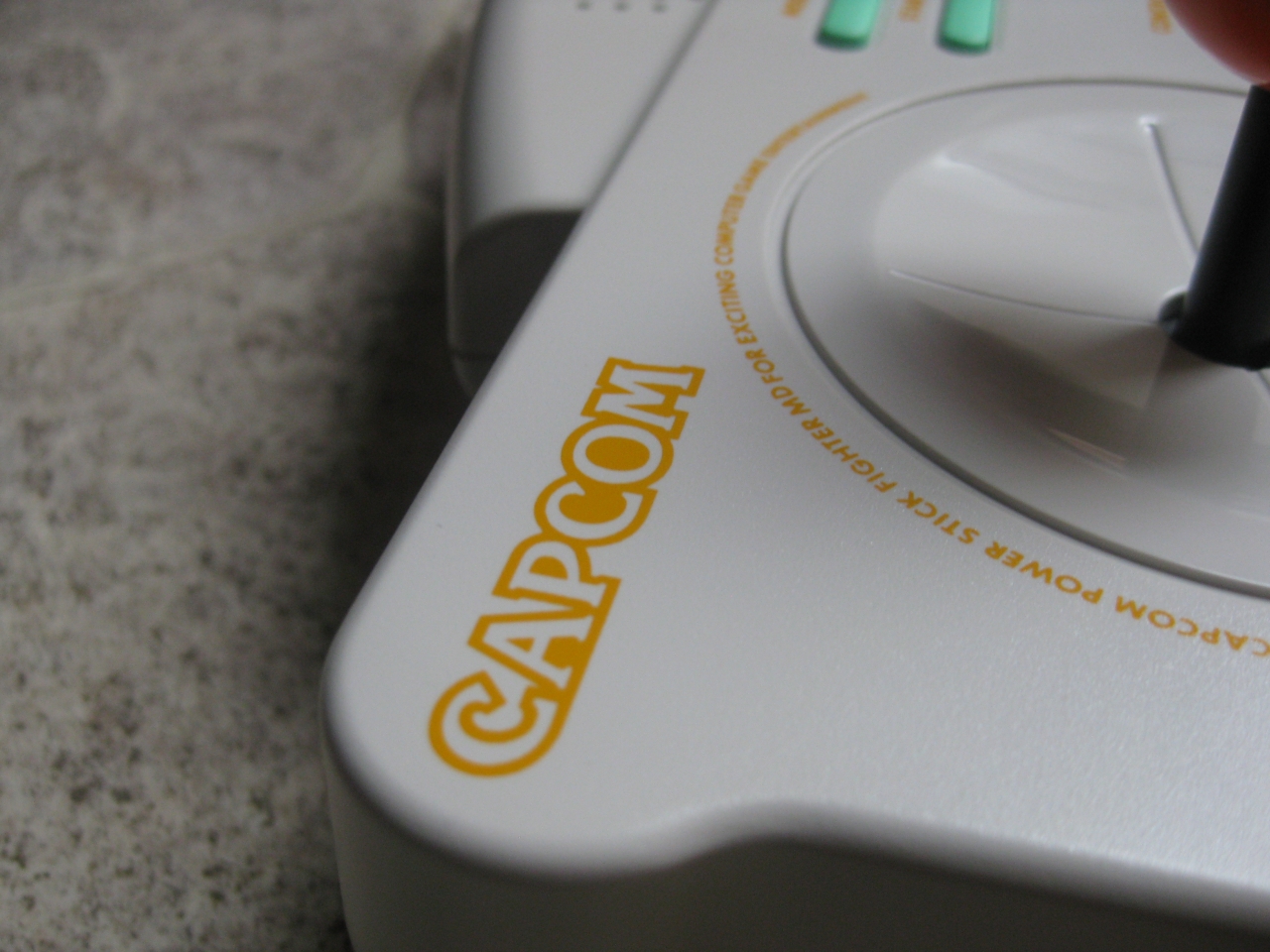

    capcom rules

    capcom_CPSF_14

  • UWRC meets NEOGEO PAD2

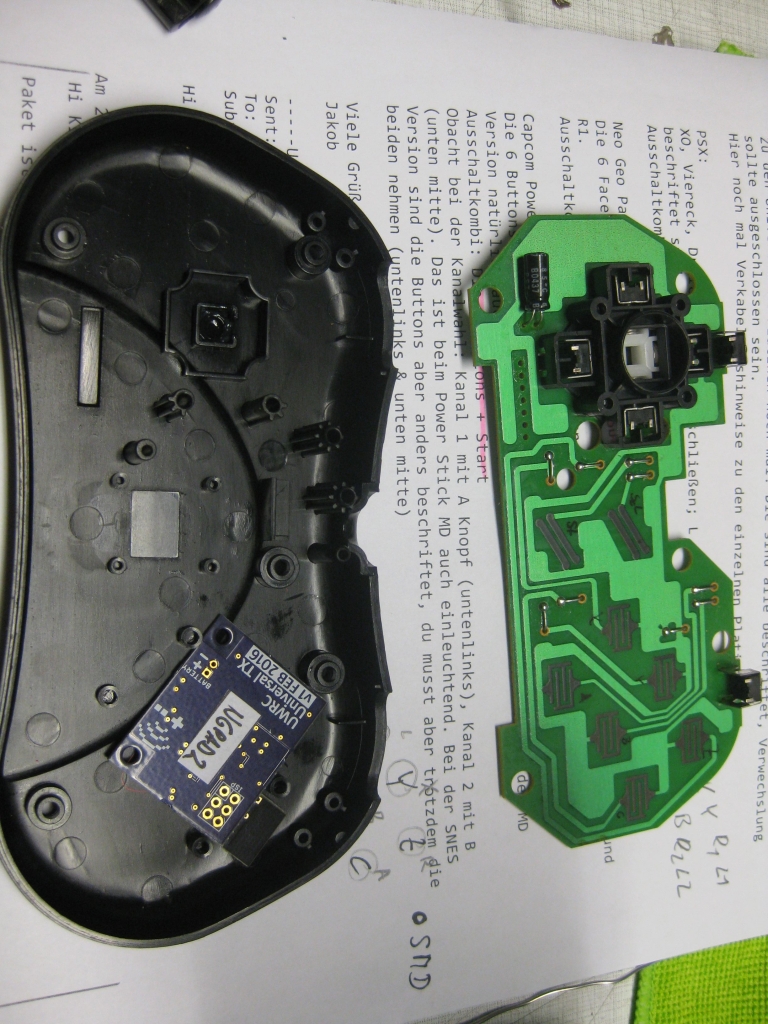

    thanks to micro I got a TX for a great controller the neogeo CD Controller in the PS2 Version called NEOGEO PAD 2 Controller.



    IMG_8993

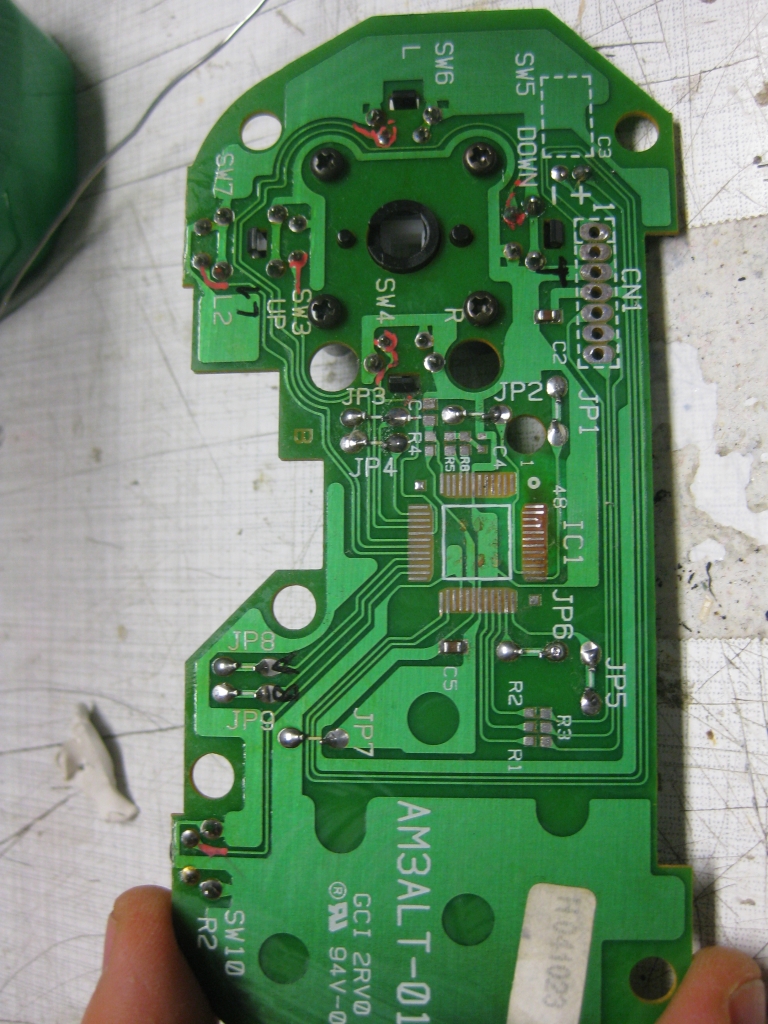

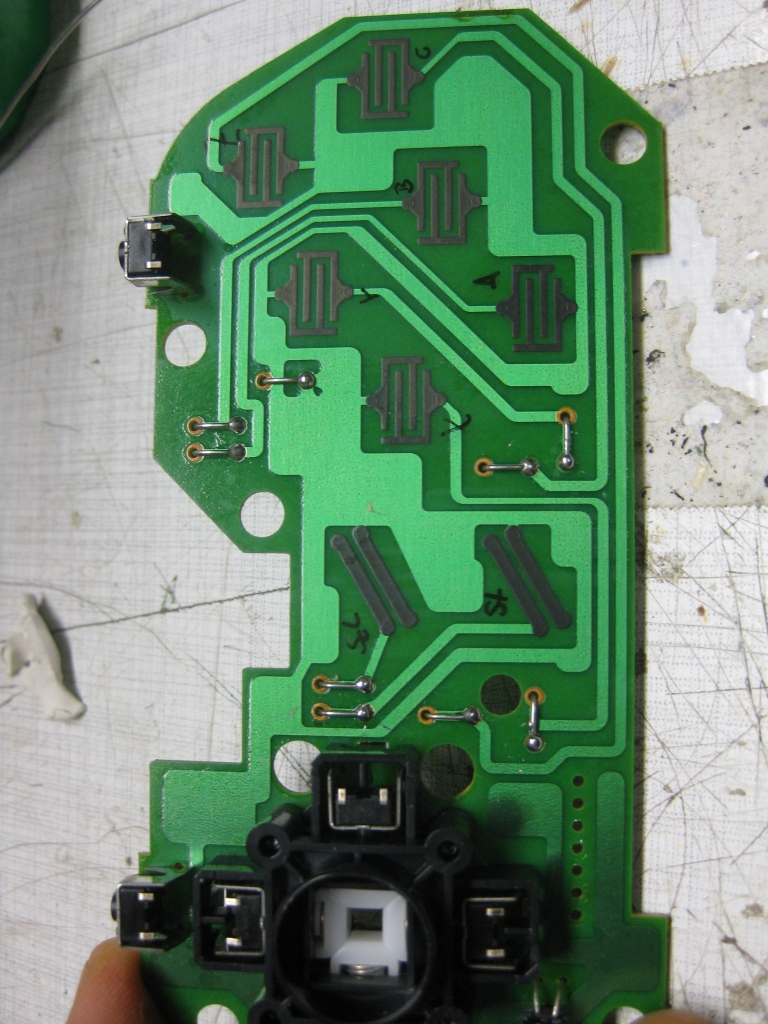

    removing the original controller 😉

    IMG_8986

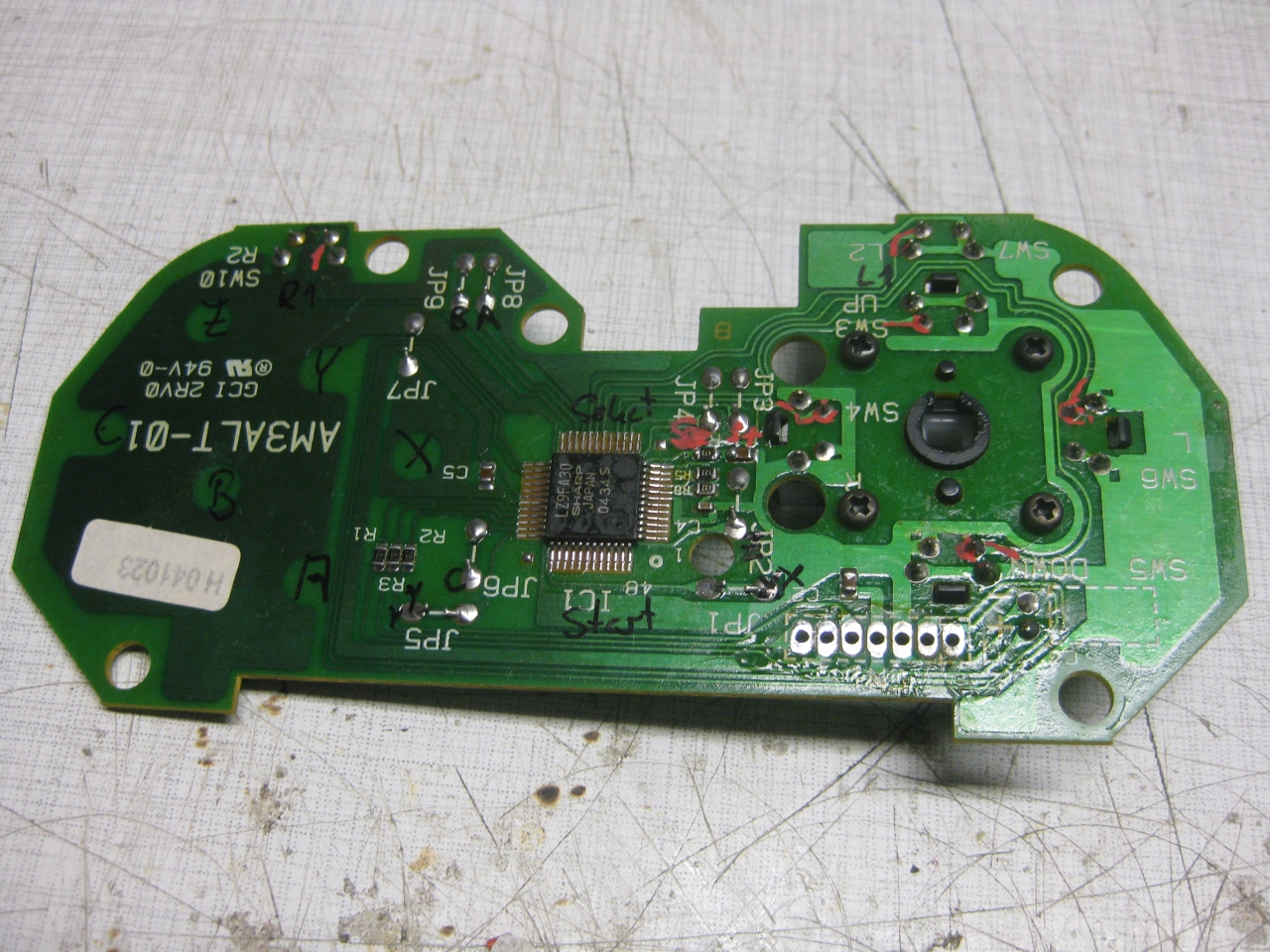

    IMG_8985 IMG_8983

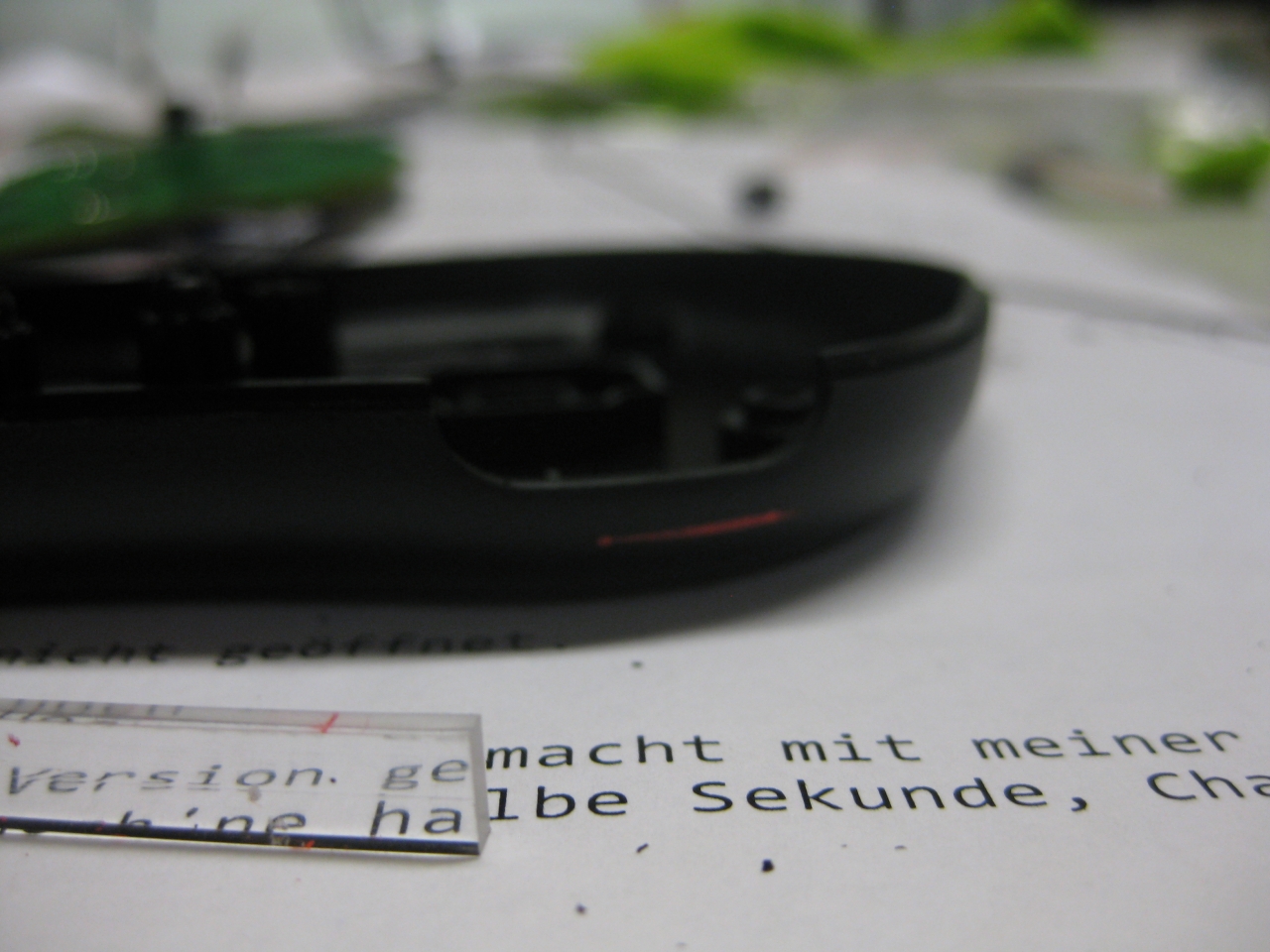

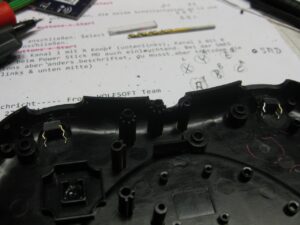

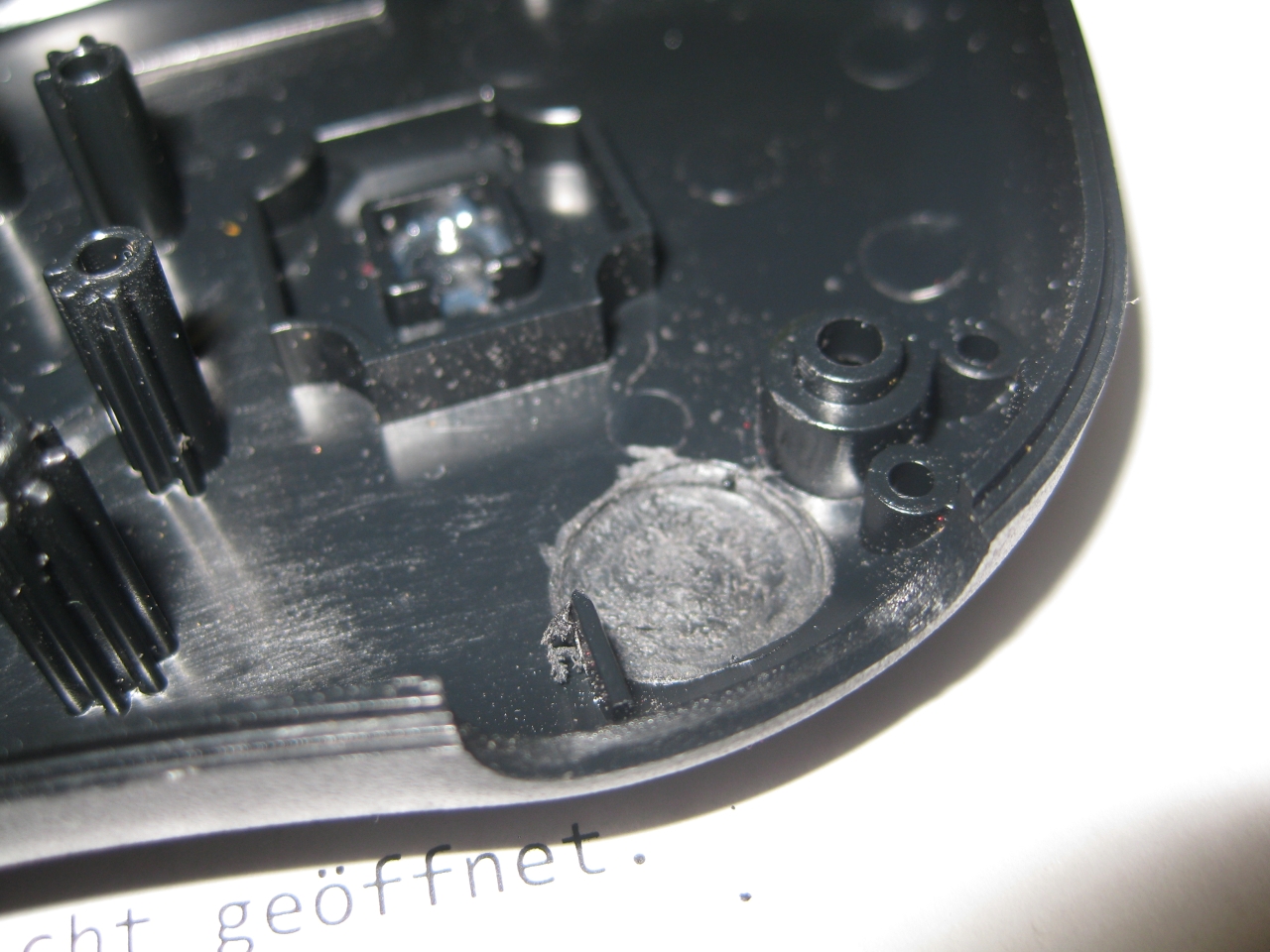

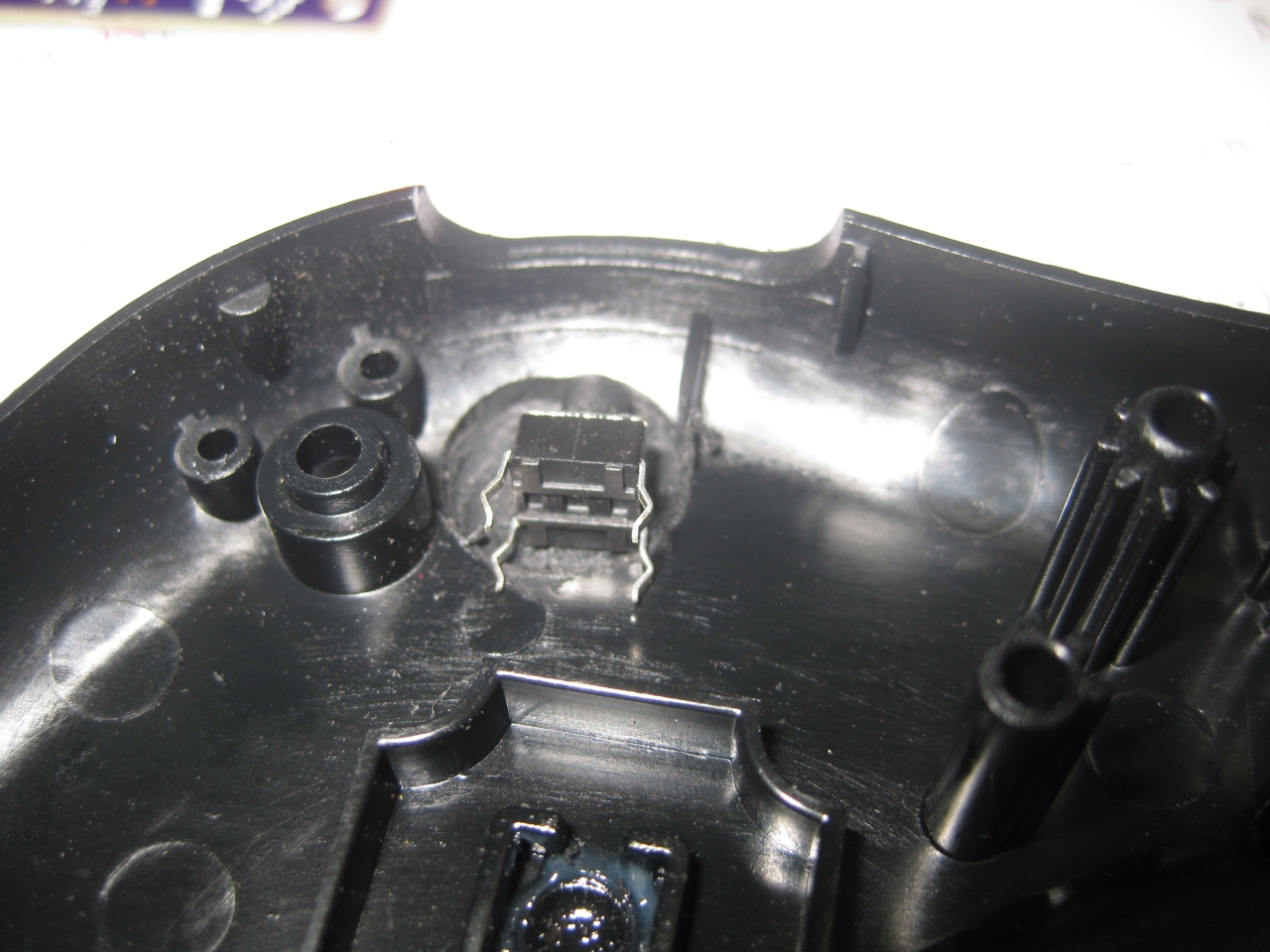

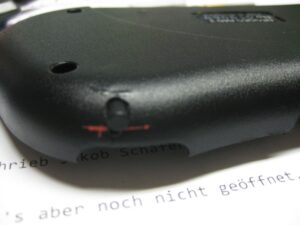

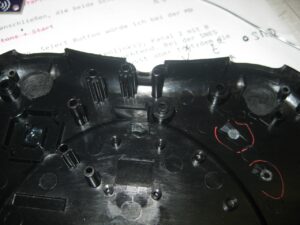

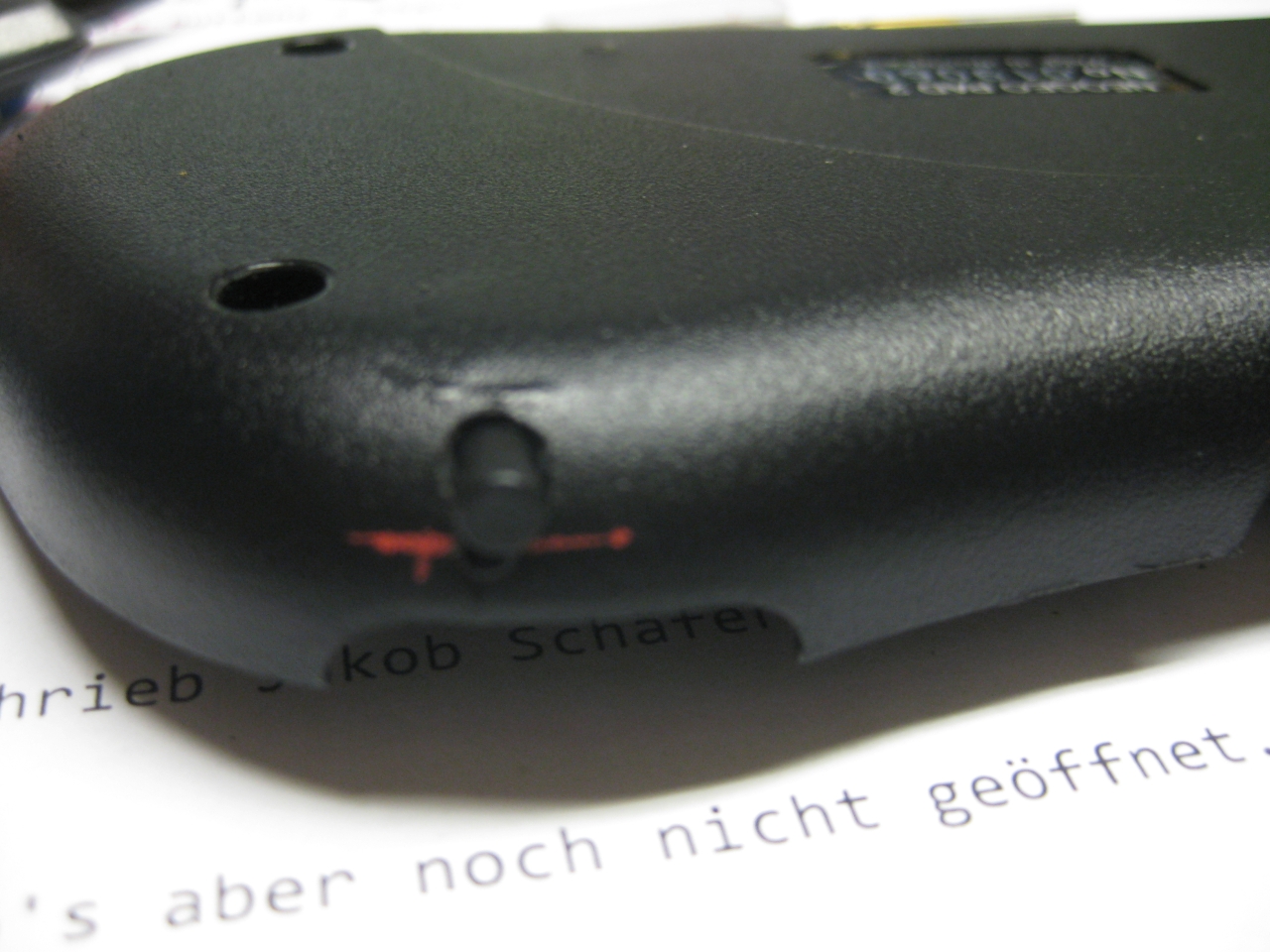

    some dremel work

    IMG_9006 IMG_9005 IMG_9004 IMG_9003 IMG_9001 IMG_8997 IMG_8996 IMG_8995 IMG_8994

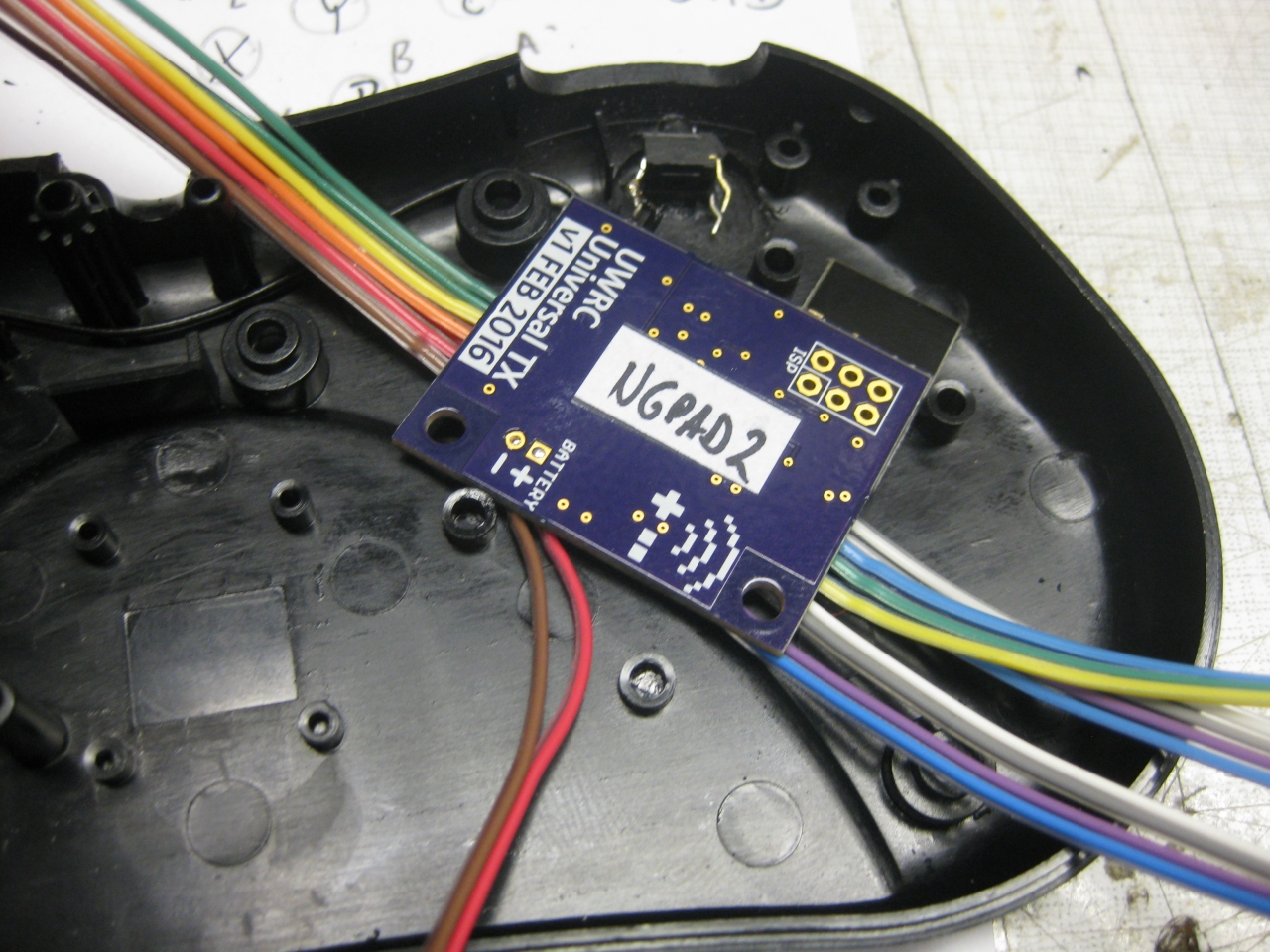

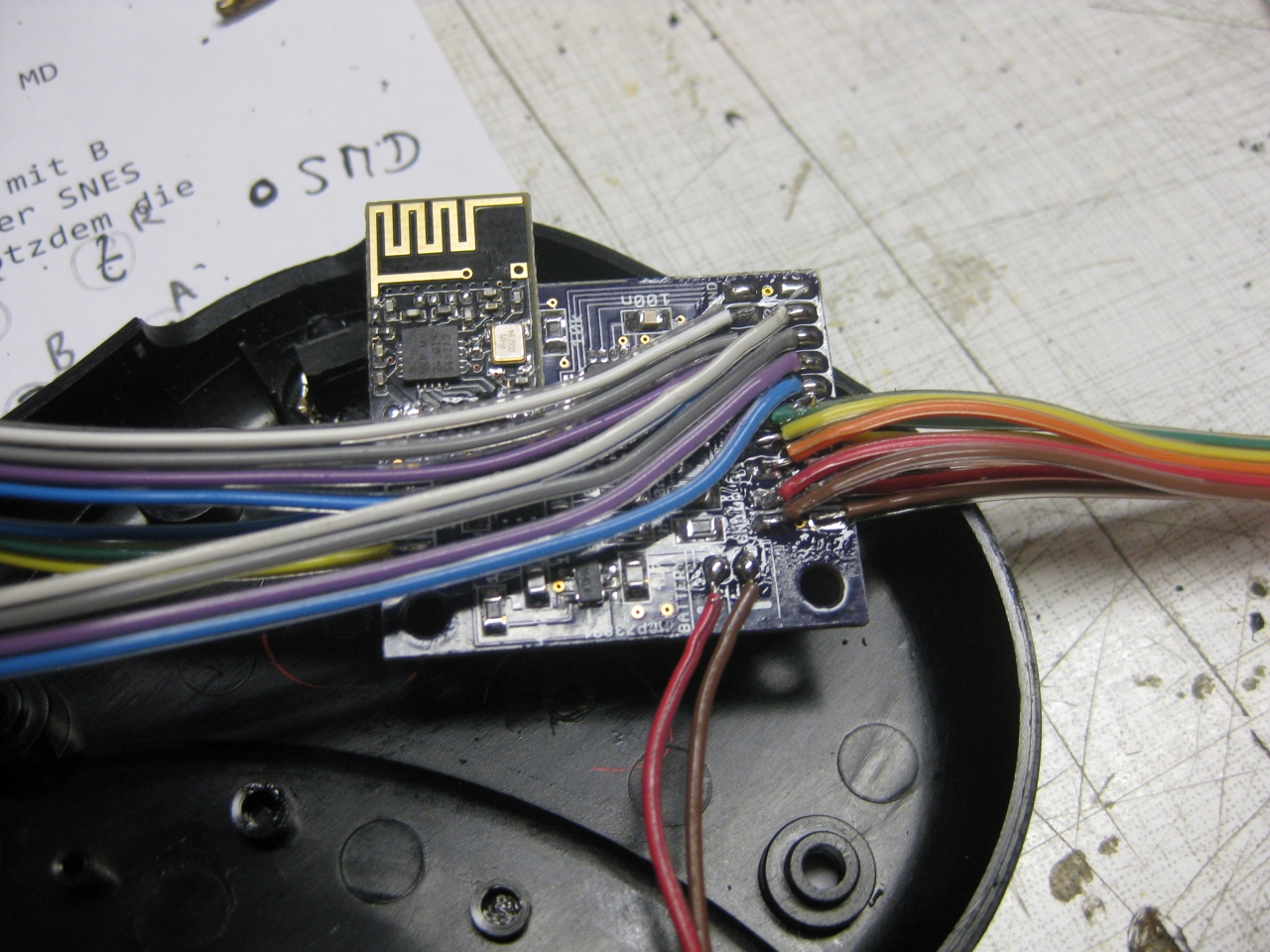

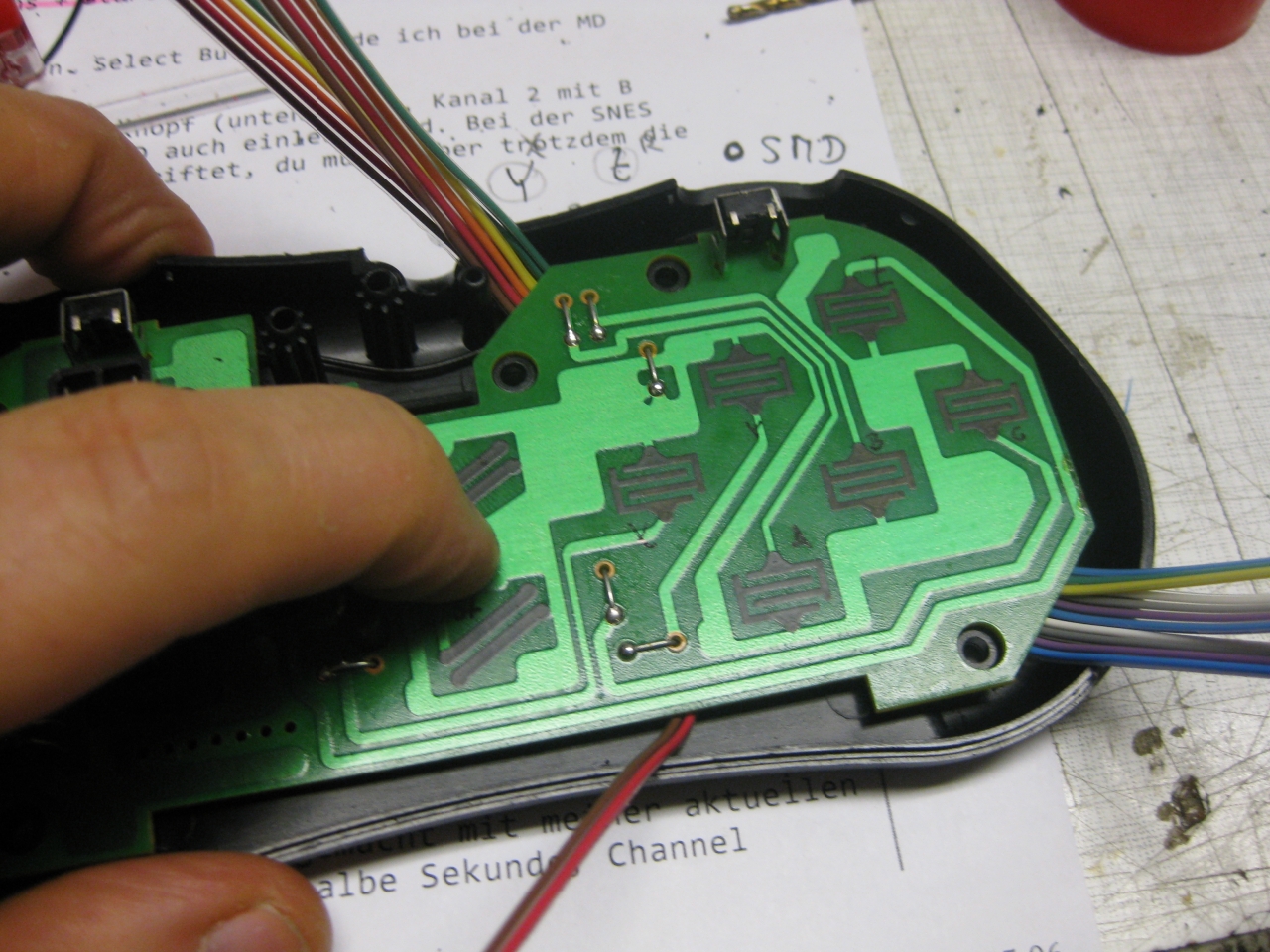

    wiring of uwrc

    IMG_9008 IMG_9011 IMG_9012

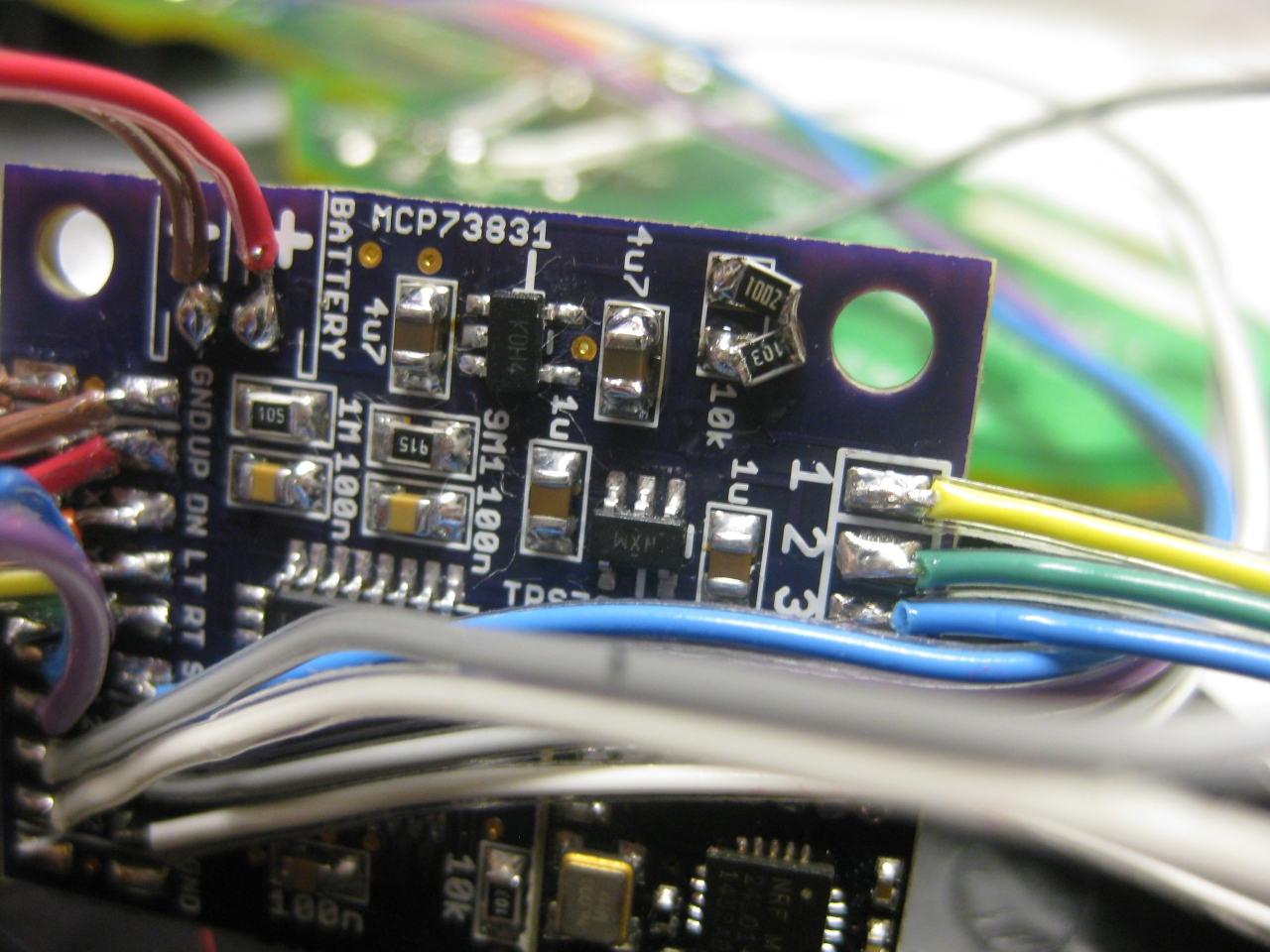

    I used a 200mAh Lipo and changed the loading current to 50mA via changing loading R from 10k to 20k

    IMG_9019

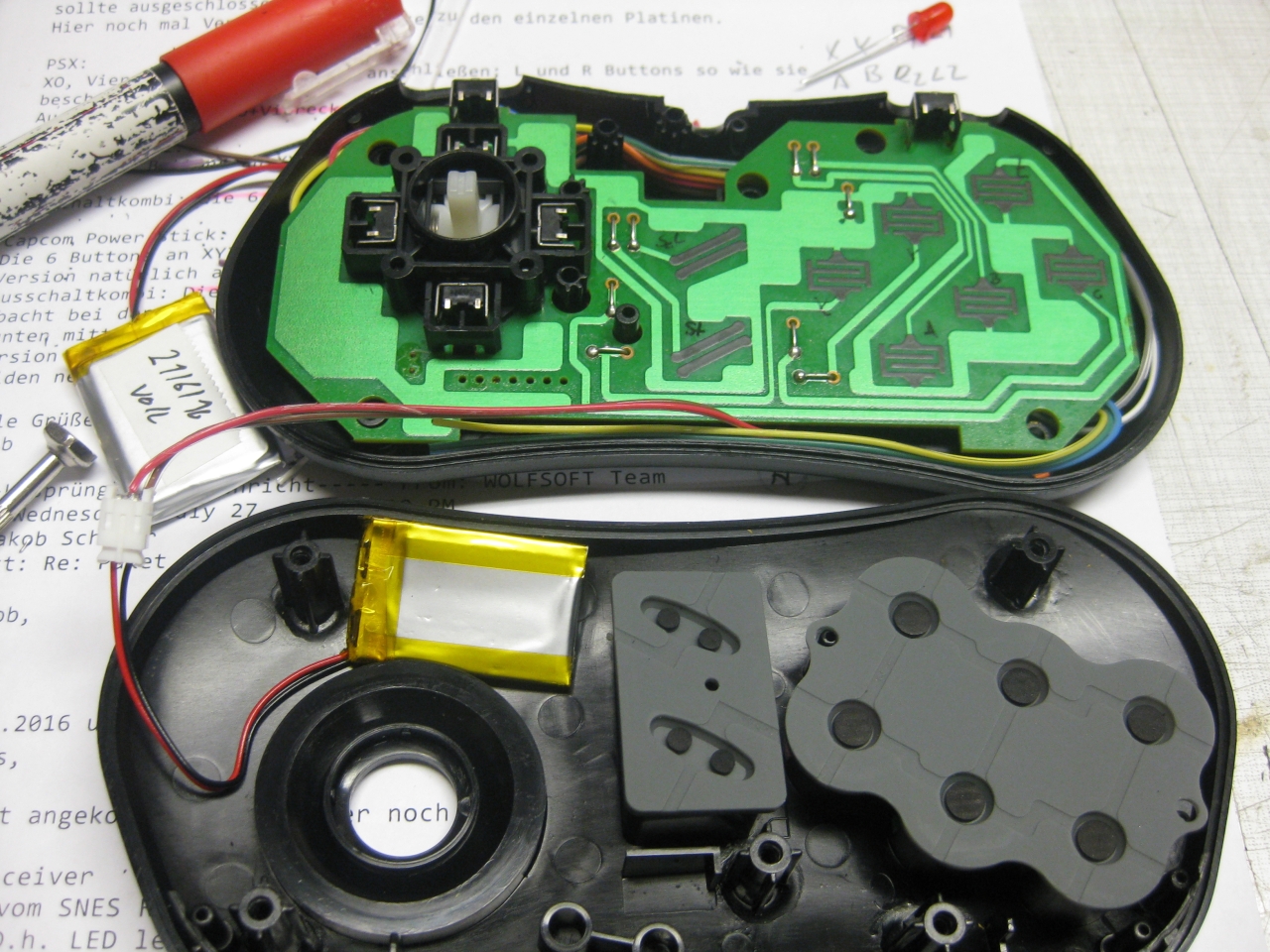

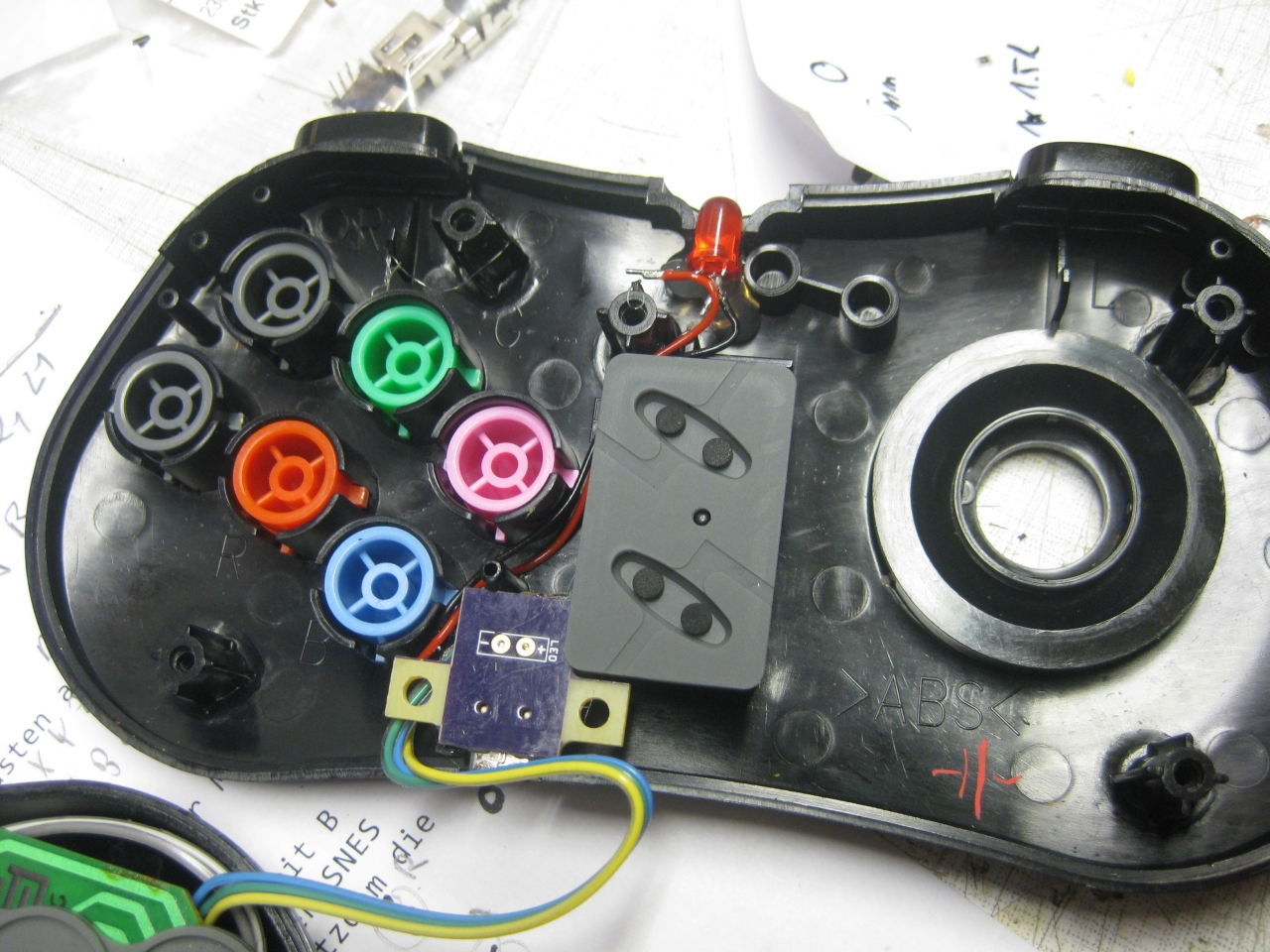

    loading led, usb port, lipo

    IMG_9025 IMG_9021

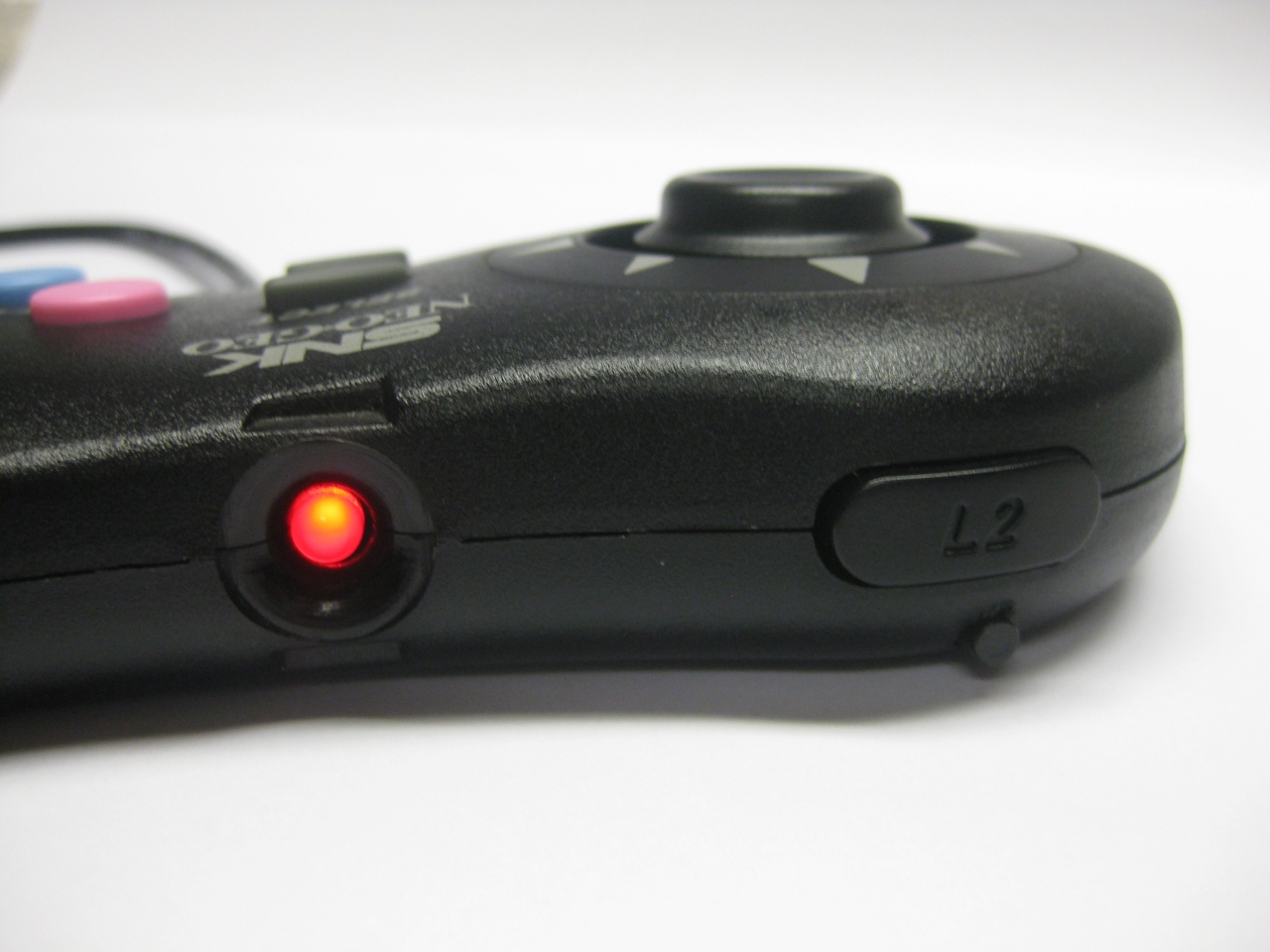

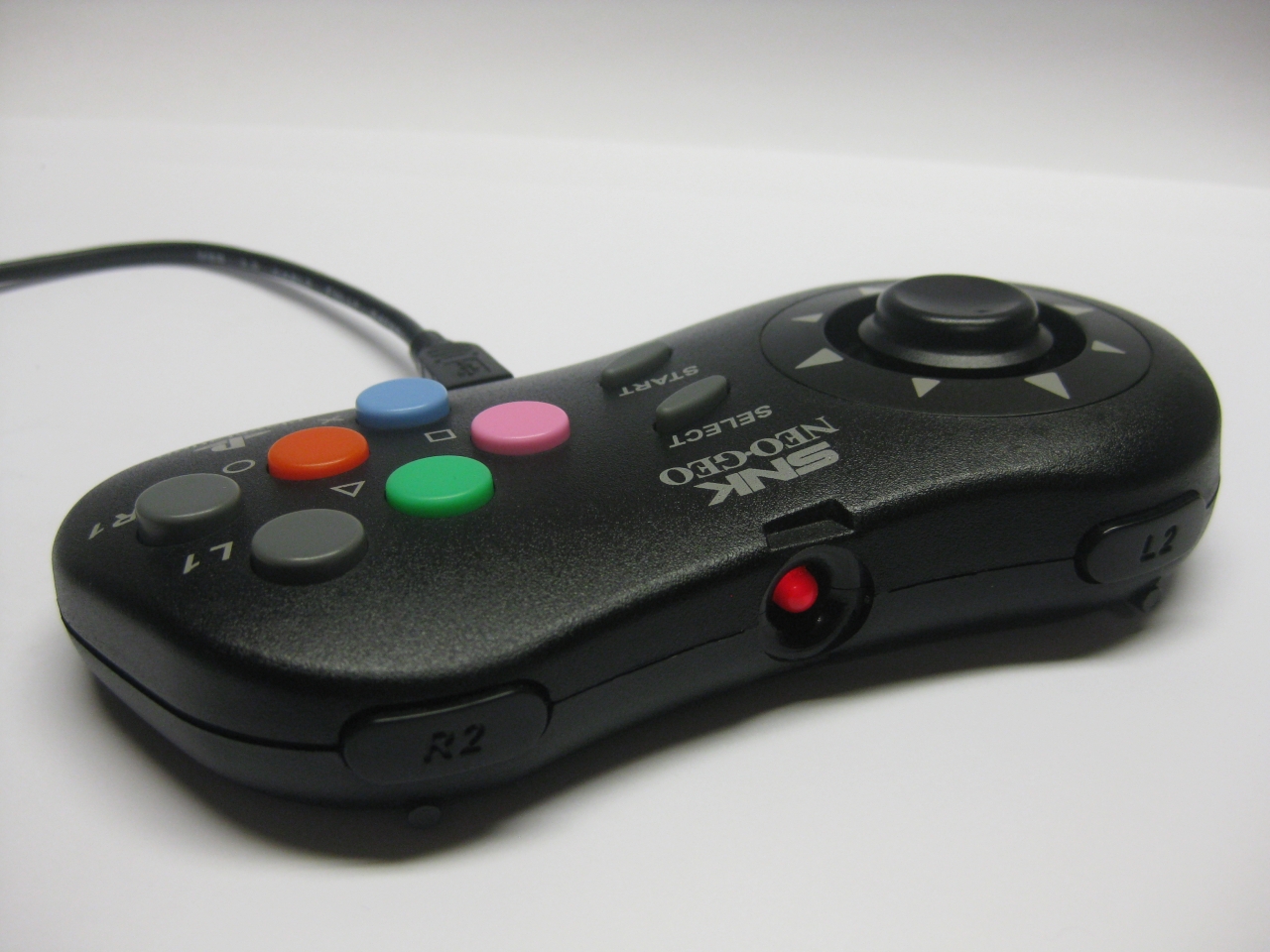

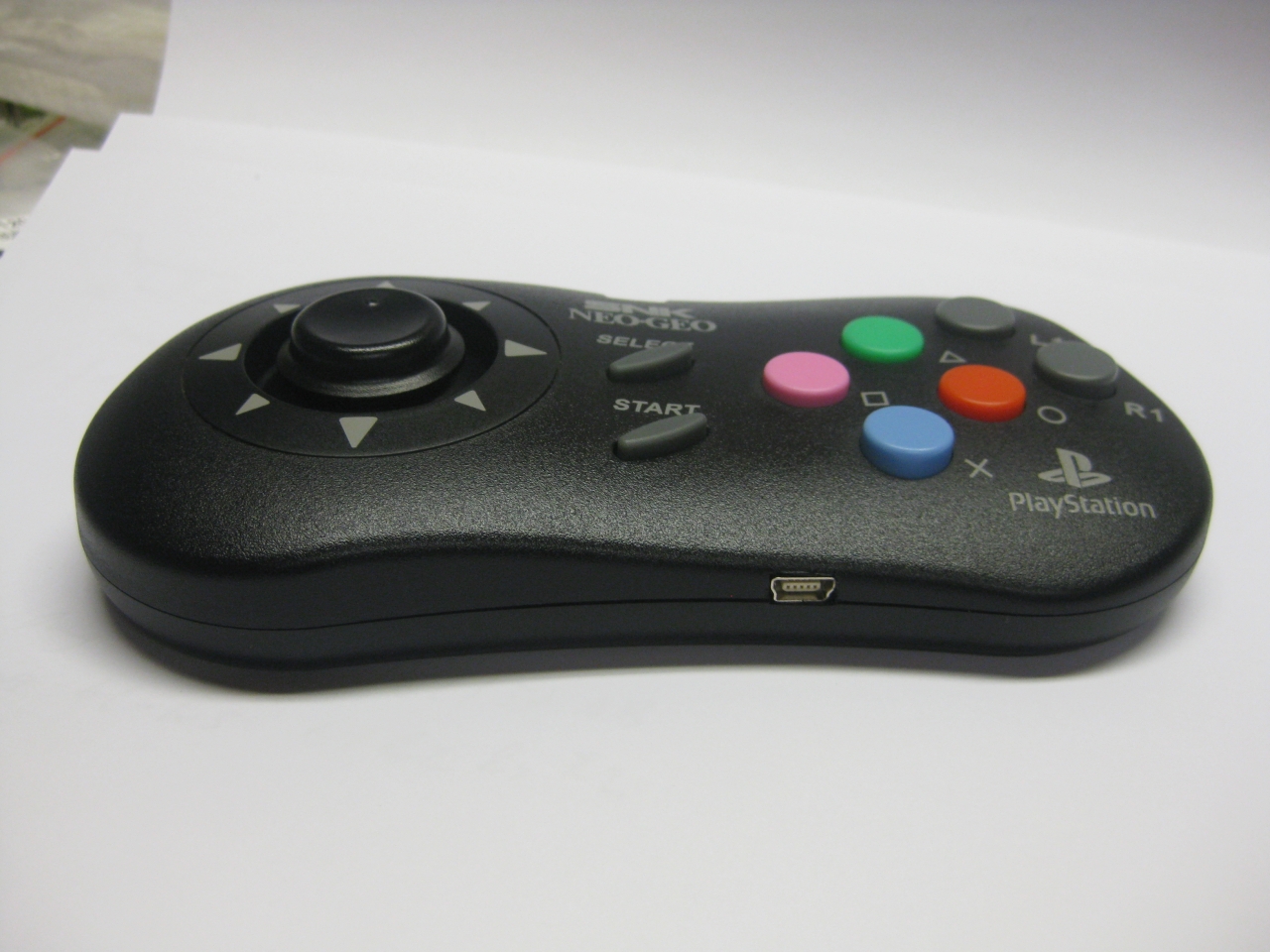

    done 🙂

    IMG_9030 IMG_9029 IMG_9027

  • Atari 2600 gets internal UWRC wireless Receiver

    I used a old revision (rev1) of micros neogeo Receiver and put it inside of the A2600 6 swich.

    I was modified before with A2600RGB from tim worthington and I used some more switches like select, reset from the Atari and extra button from tim worthingstons 2600RGB PCB

    UWRC

    Button A = normal FireButton 1 of Atari (Pin 6)

    Button B = Firebutton 2 (Pin 9)

    Select  =    Extra Button A2600RGB PCB

    Start  = Start of Atari 2600

    Button C= Select of Atari 2600

    Button D = Palette switch A2600RGB PCB



    All normal Controllers will work after mod too. Like paddle, racing, joystick.

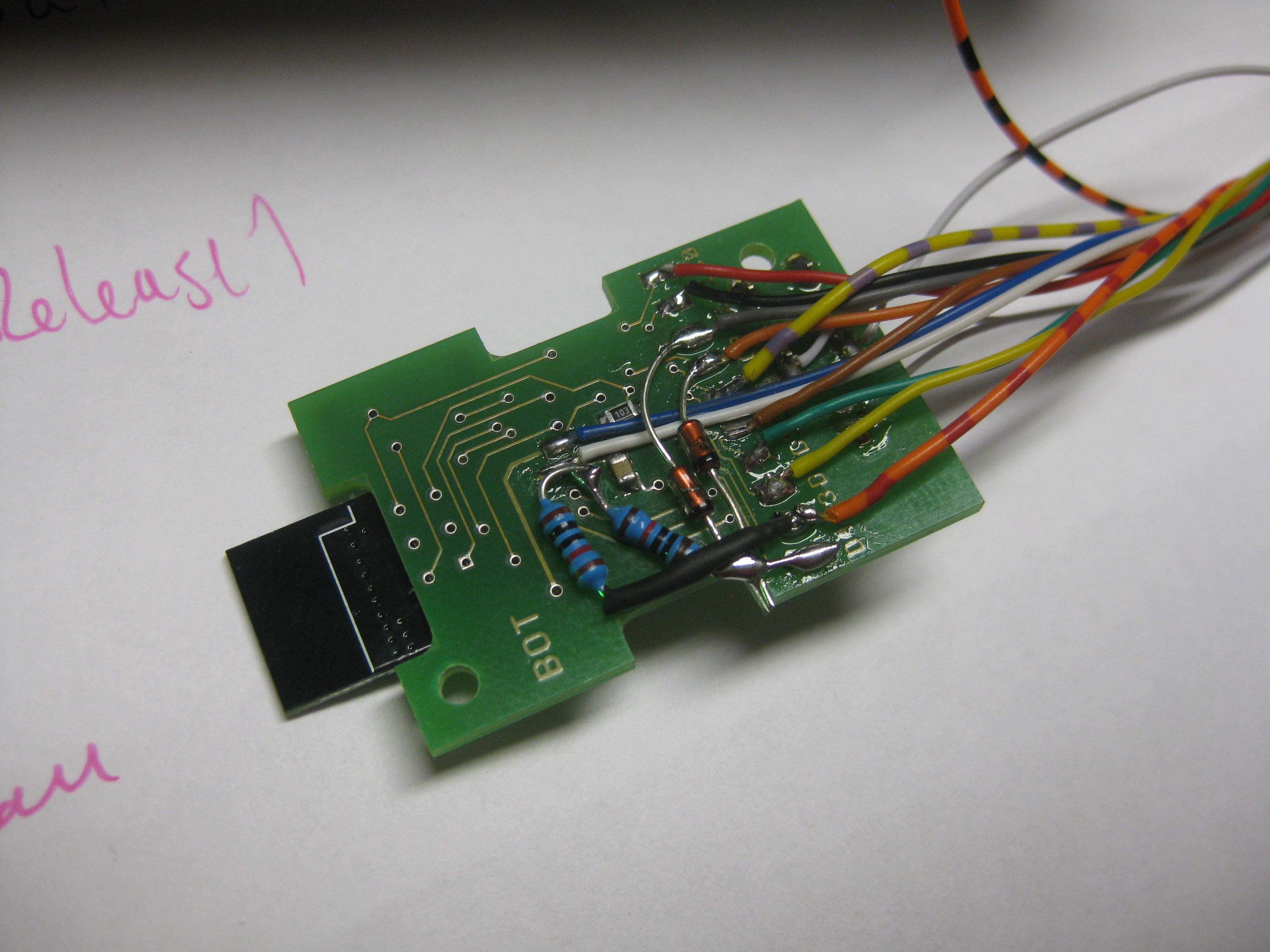

    IMG_8941

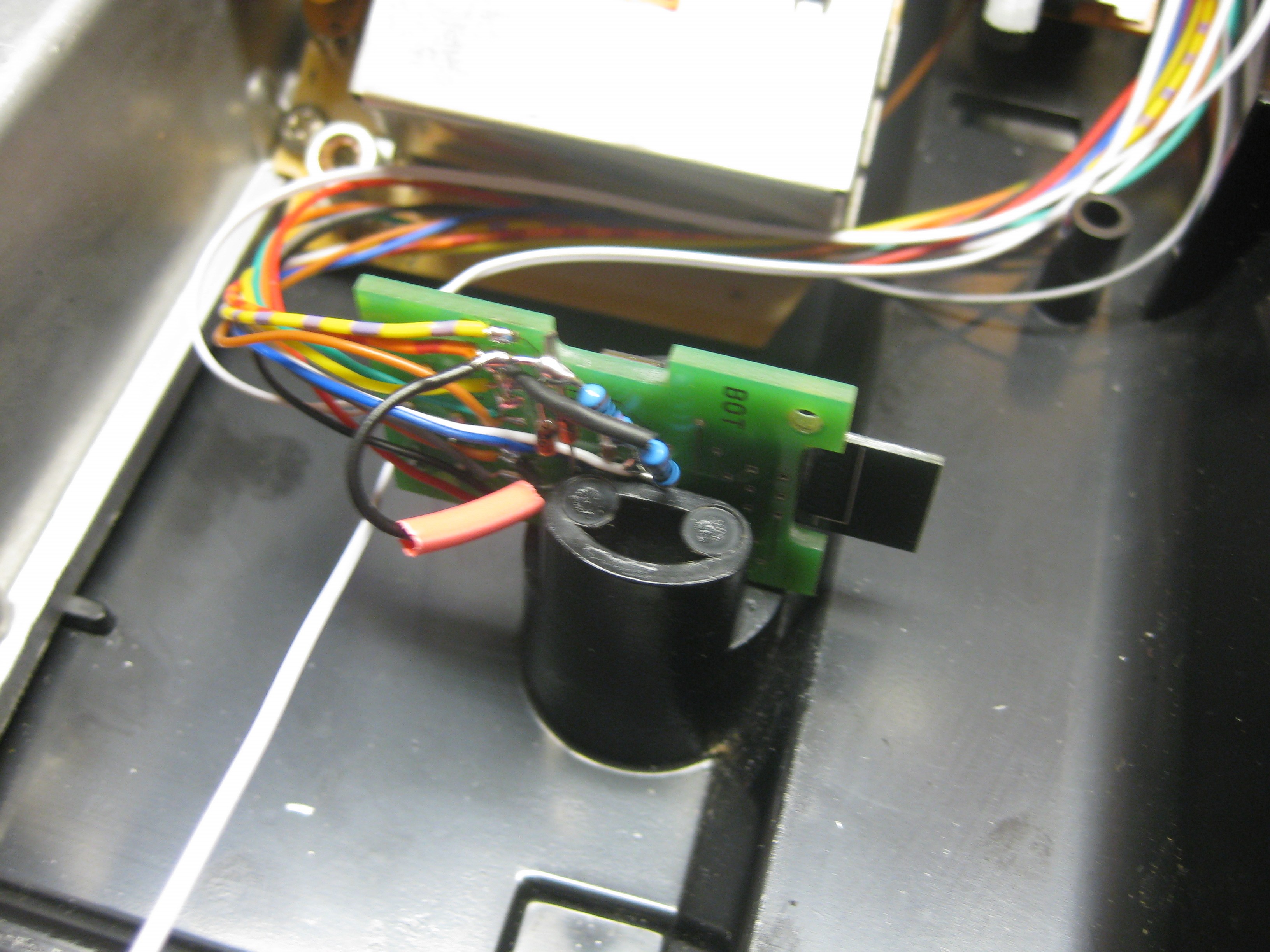

    (diodes, needed to make special functions from A2600RGB working, R=10k as pullup)

    IMG_8944



    IMG_8950

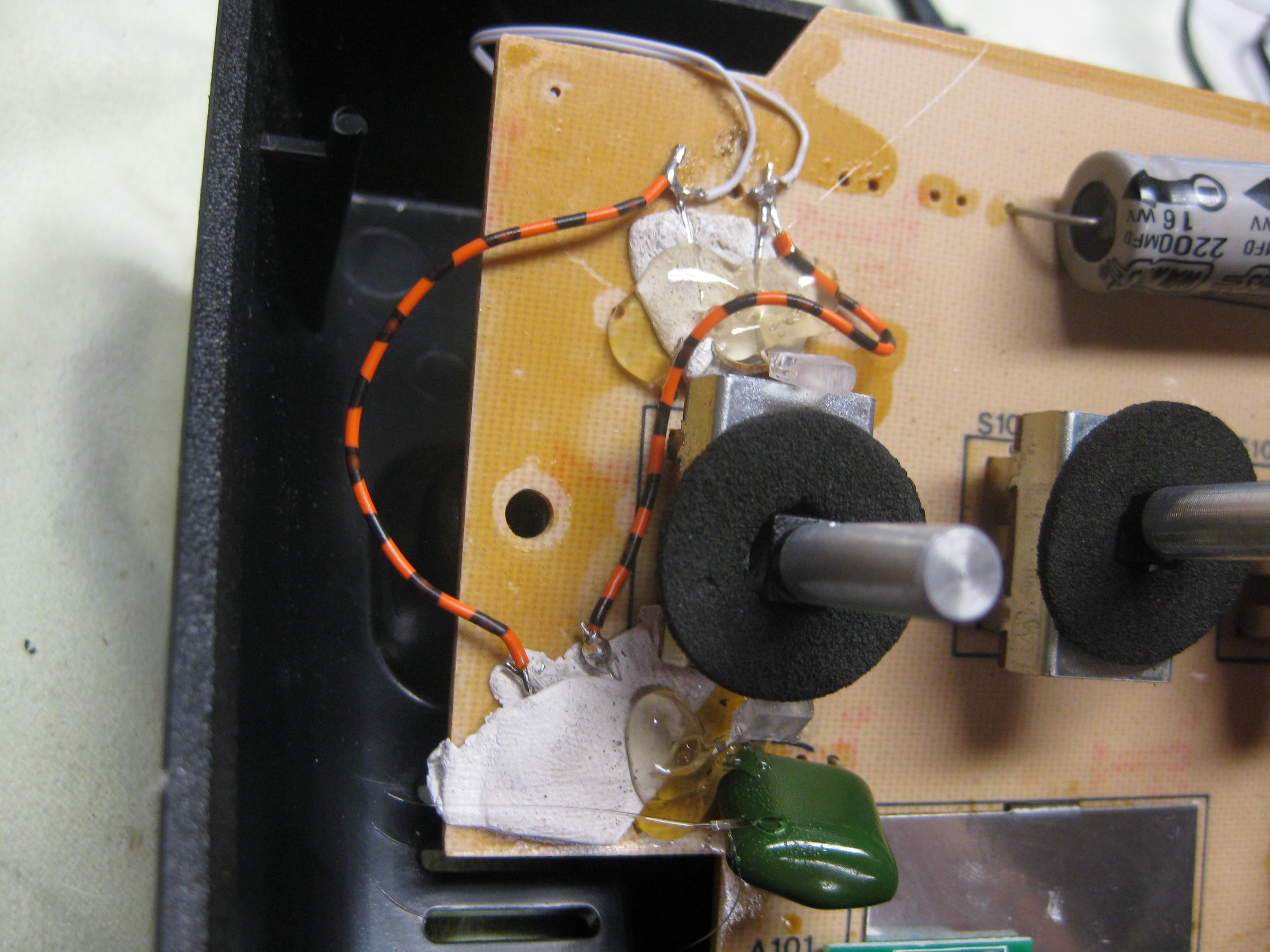

    RX Led to show it though the power switch hole upperside red led down side gn led



  • UWRC PC Engine Shuttle Controller

    A futuristic styled Controller for the PC-Engine Shuttle. Now its time to make it wireless.

    thanks to the PCB of micro and some reposition of the led usb powersupply it works great.

    I put it at the hole of the original wire and with some hotglue it works

    shuttle_1

    shuttle3

    shuttle_2

    shuttle4

    shuttle6

    shuttle5





  • PC Engine Duo R/RX RGB Mod with bypass PCE-TV

    Nothing really new, only to see how to add THS Amplifier working in a Duo R / RX.

    I used Pin 44 of HU C6260 C-Sync for Sync. So you have to cut the Video Signal to the Din Connector (yellow wire).

    Black wire is optional, for „more“ GND



    duo_rx_1

    For the Din Pinout I used the old French Layout born in the 90ths. With RGB added to the 3 new Pins of the Din 8.1. The rest of Pins are untouched (exeption C-Sync)

    3 resistors 22 Ohm are used for make PCE-TV work to output around 0,7V. The PCB is the 1st Revision of micro. Power is taken from a Elko nearby. (orange/black=GND, orange/red=5V)

    duo_rx_4



    duo_rx_2

    duo_rx_3

    Scart Pinout

    scart_PC-Engine_French_Layout_2016

    Jailbars removement

    After checking the picture there are jailbars 🙁

    After replacement of two  capacitor the picture is great.

    replace C909 and C923 with 4,7uf down under Hu C6260

    jailbarfix_Duo_R



    IMG_8818

    You final reward will be 1000 Points 🙂

    Wireless Rules

    thanks micro

    wireless-pce-rules

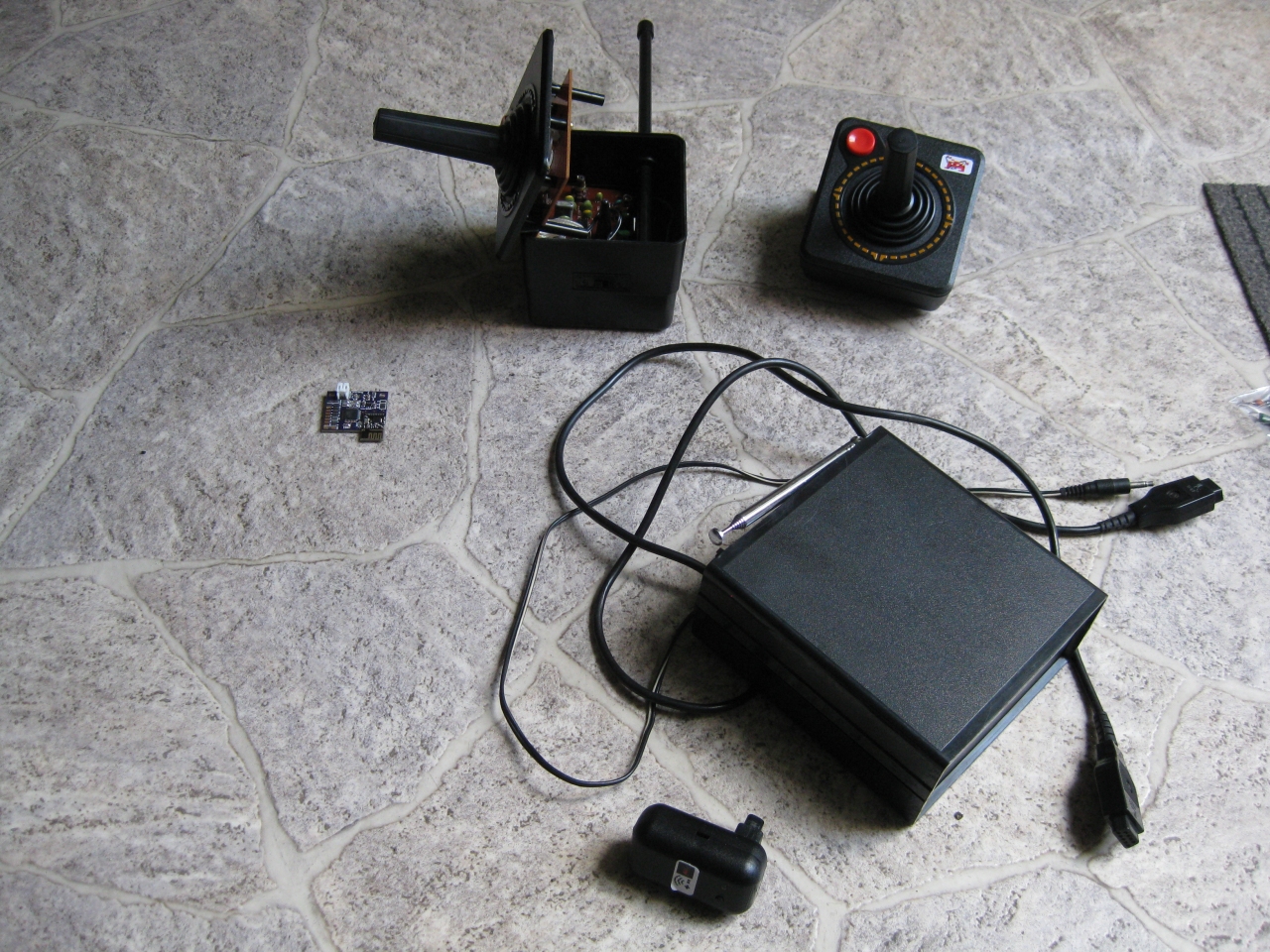

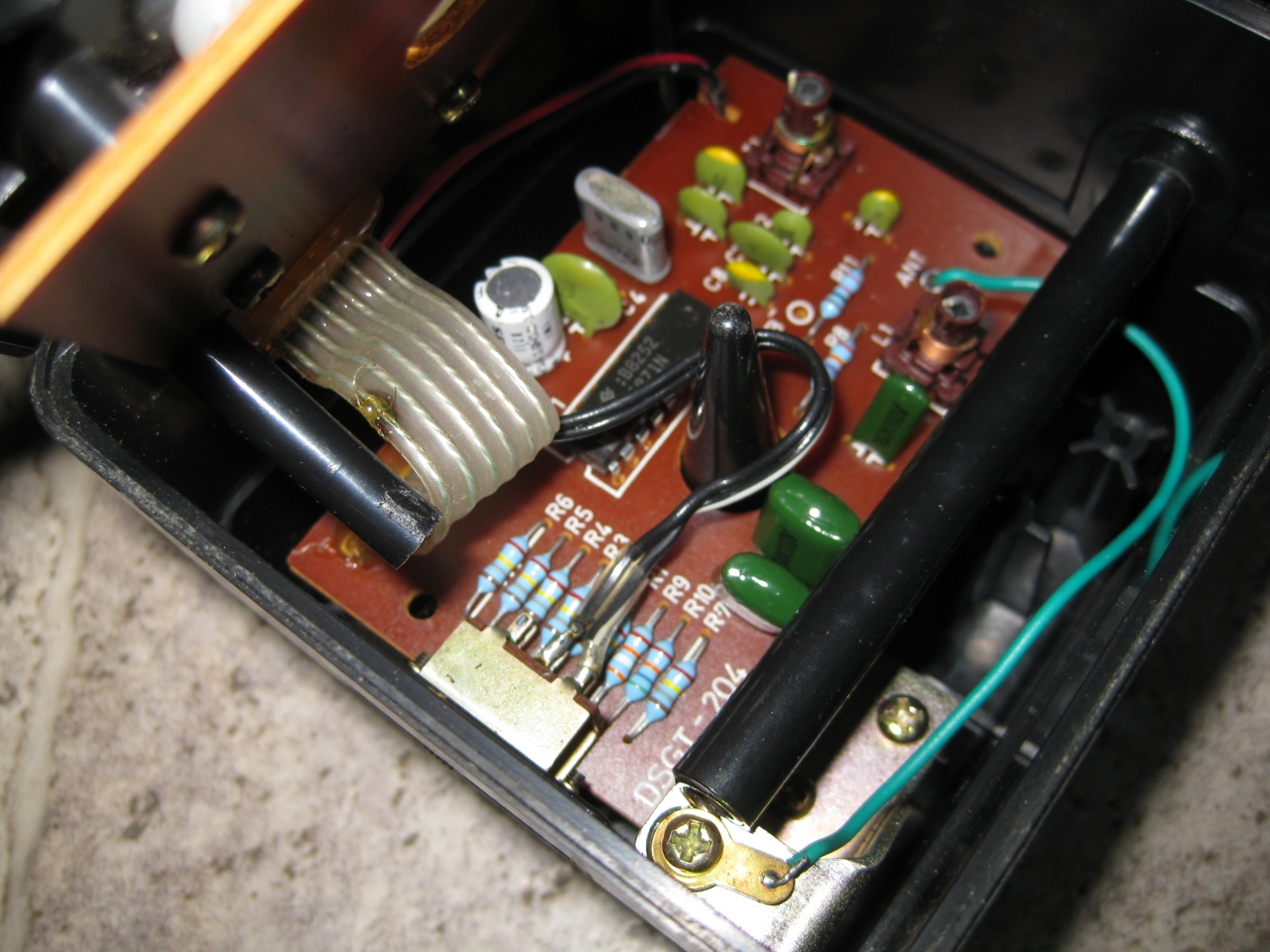

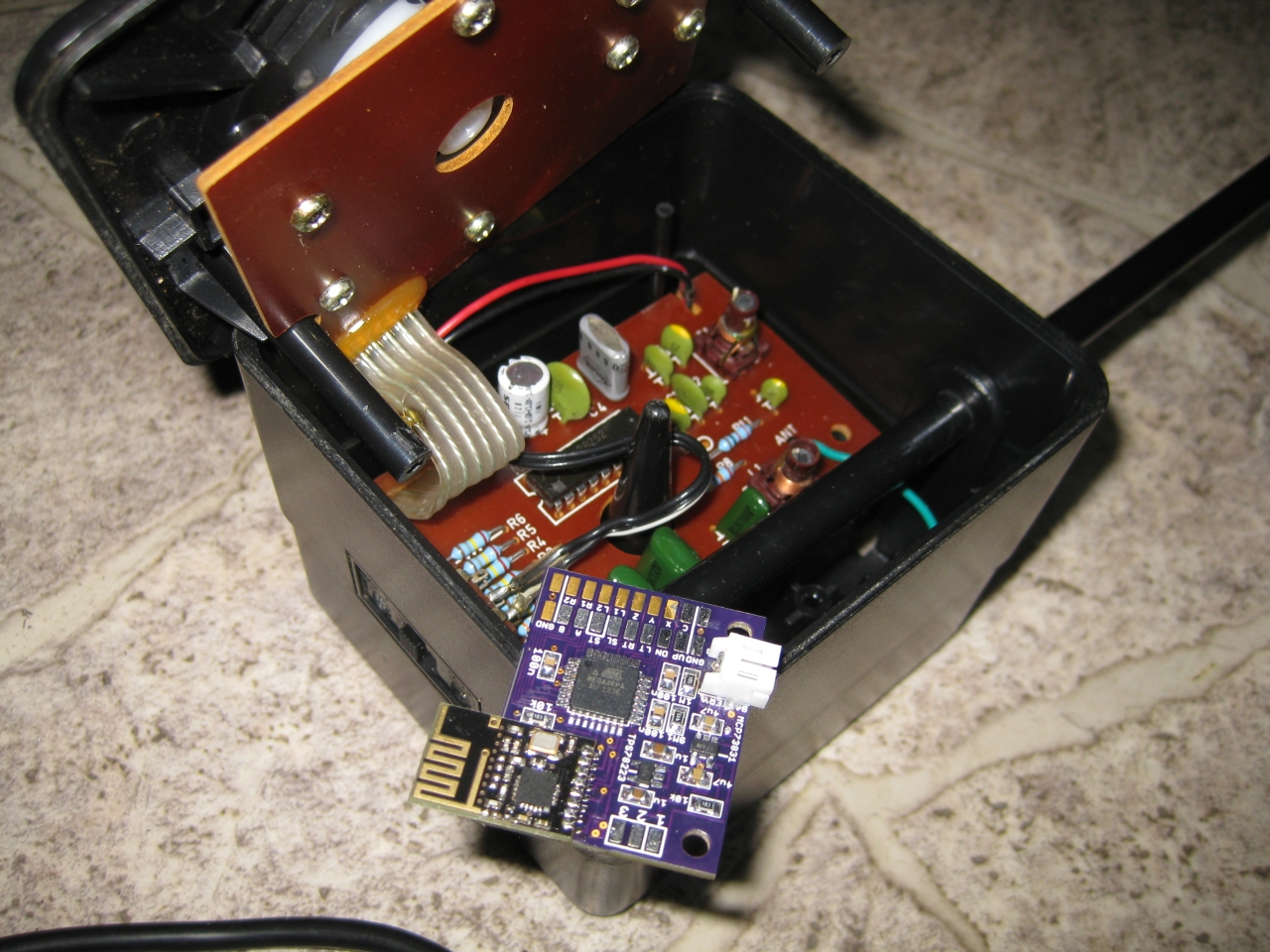

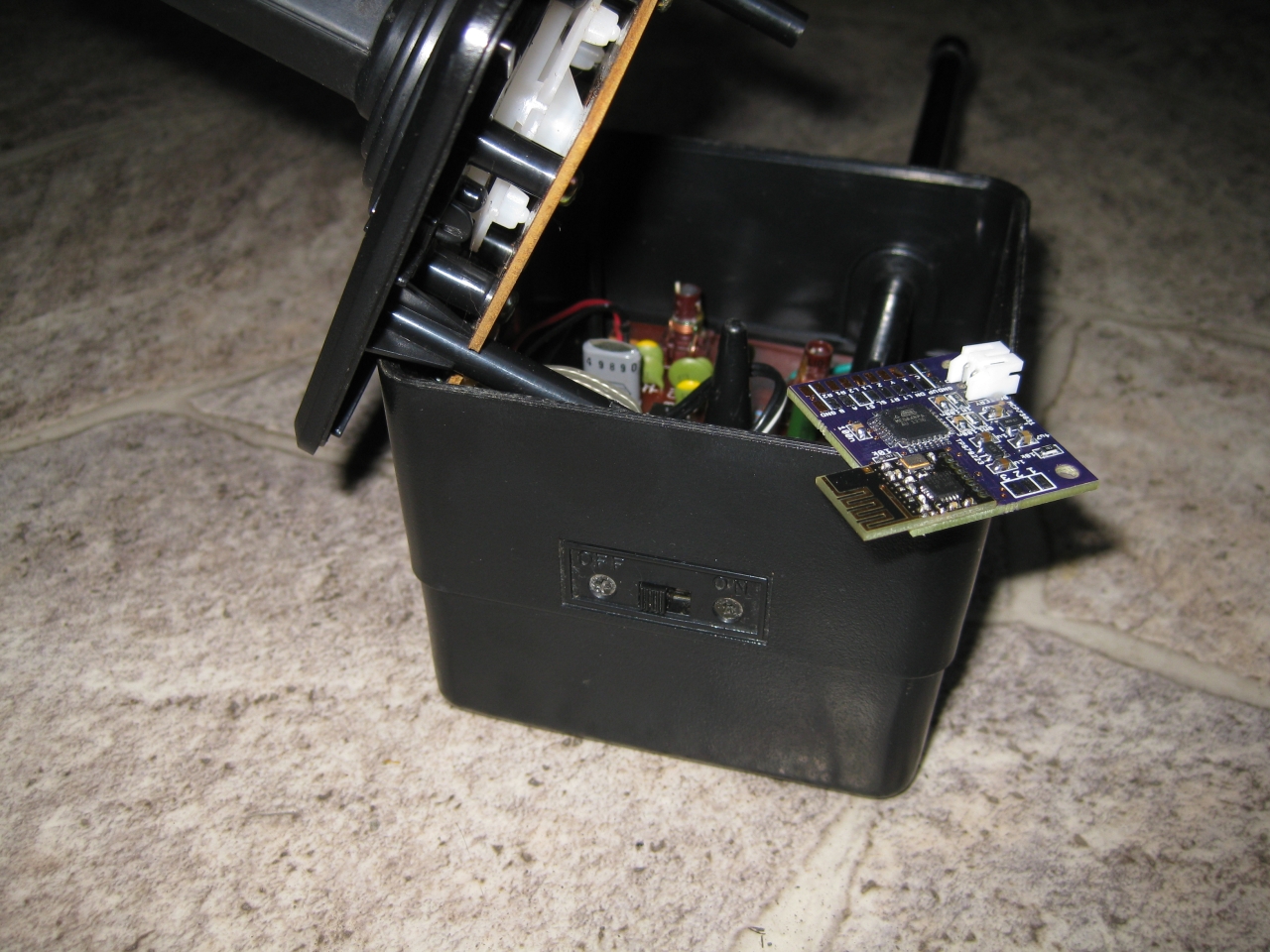

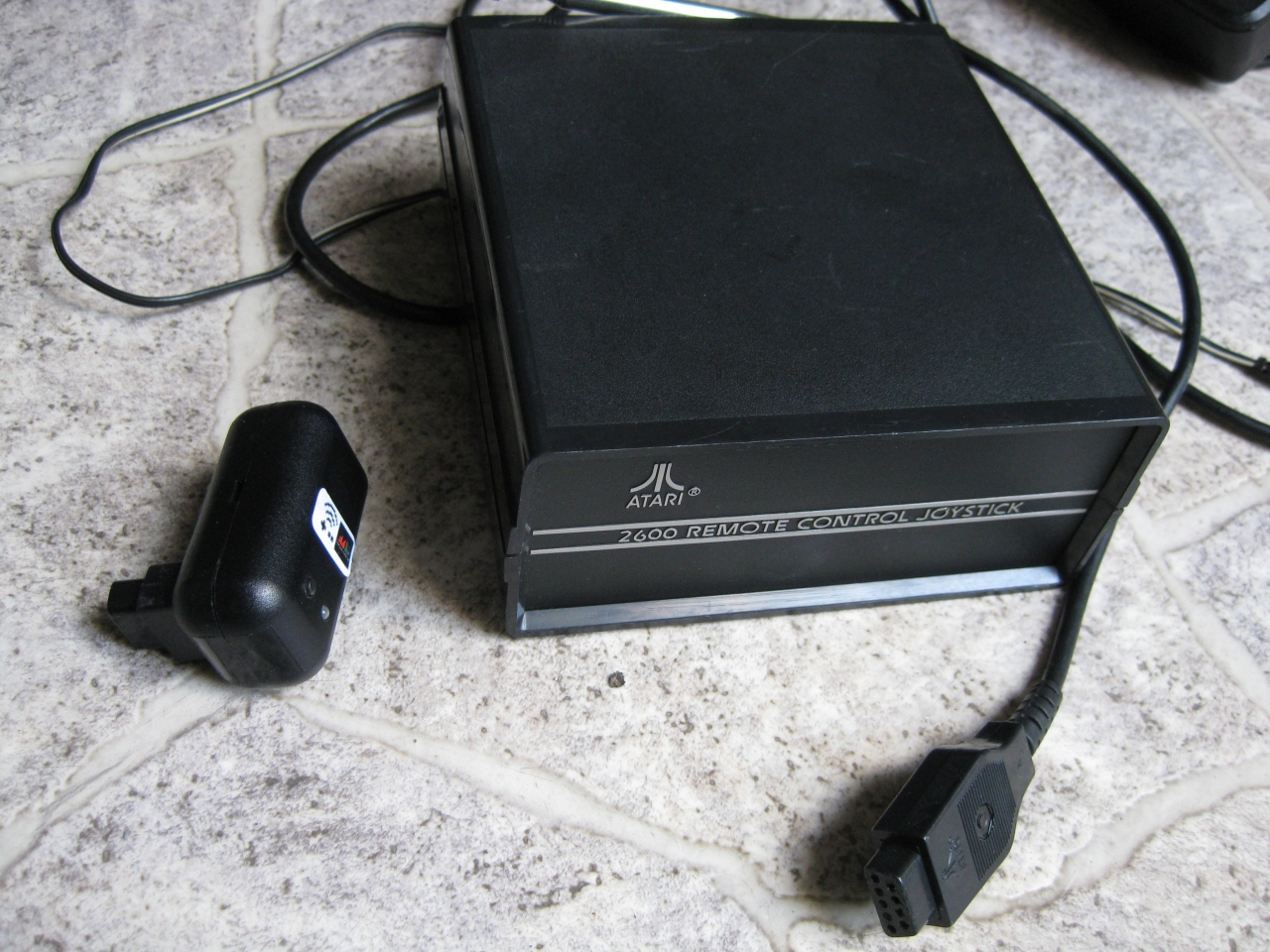

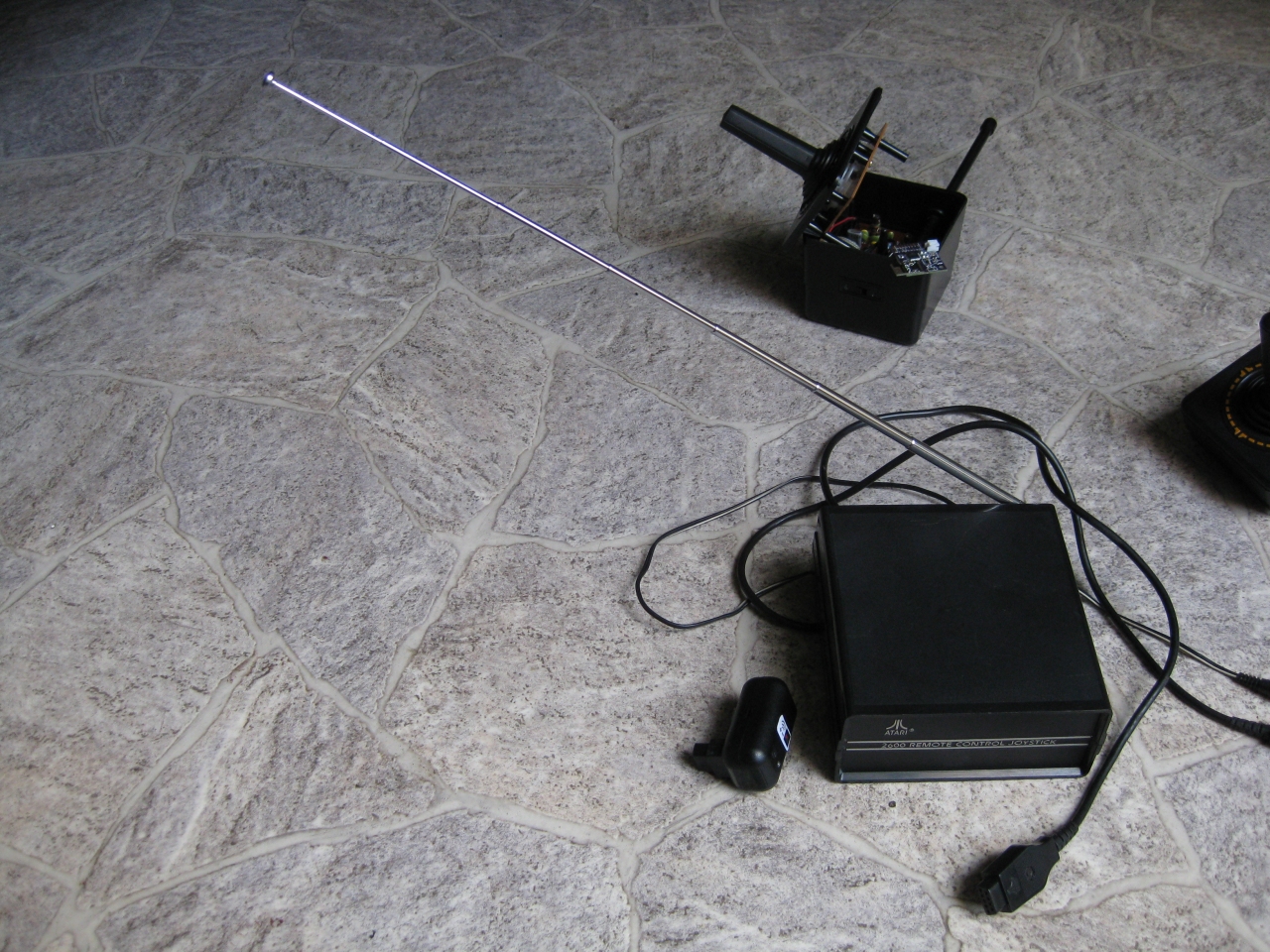

  • UWRC vs remote control yesterday

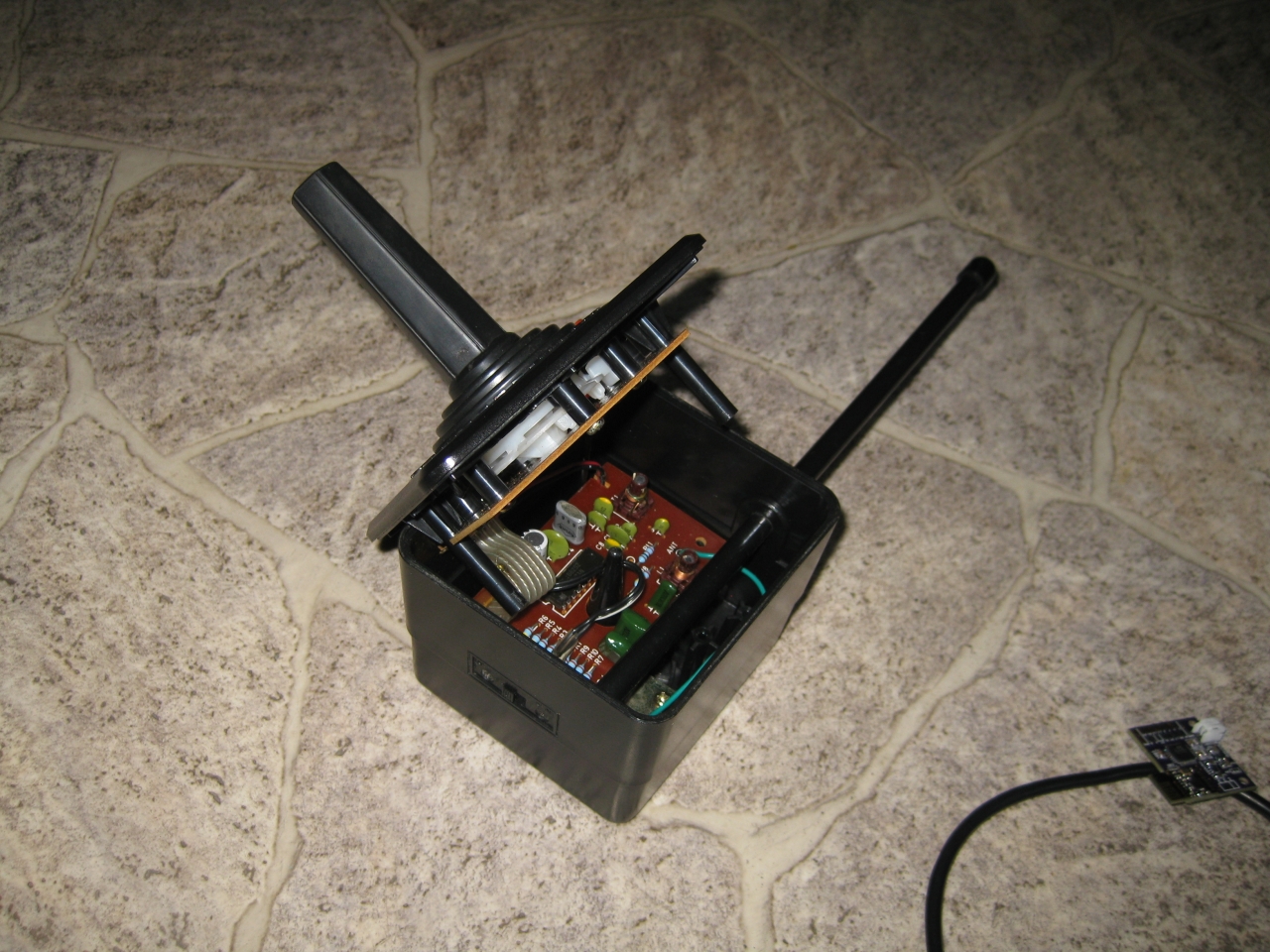

    here you can see the grandpa of remote control 😉

    a little comparsion between yesterdays remote and state of the art :-)))

    uwrc_yesterday_vs_today (7)uwrc_yesterday_vs_today (6)uwrc_yesterday_vs_today (5)uwrc_yesterday_vs_today (4)uwrc_yesterday_vs_today (3)uwrc_yesterday_vs_today (2)uwrc_yesterday_vs_today (1)
